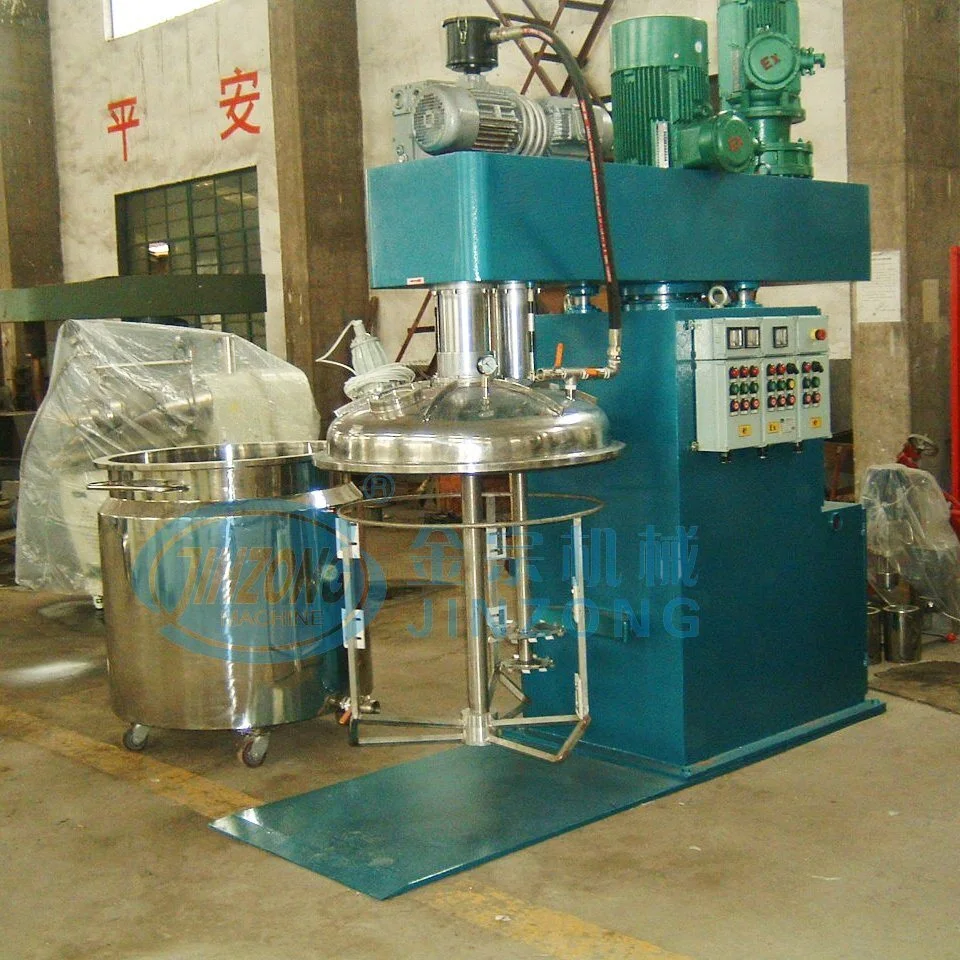

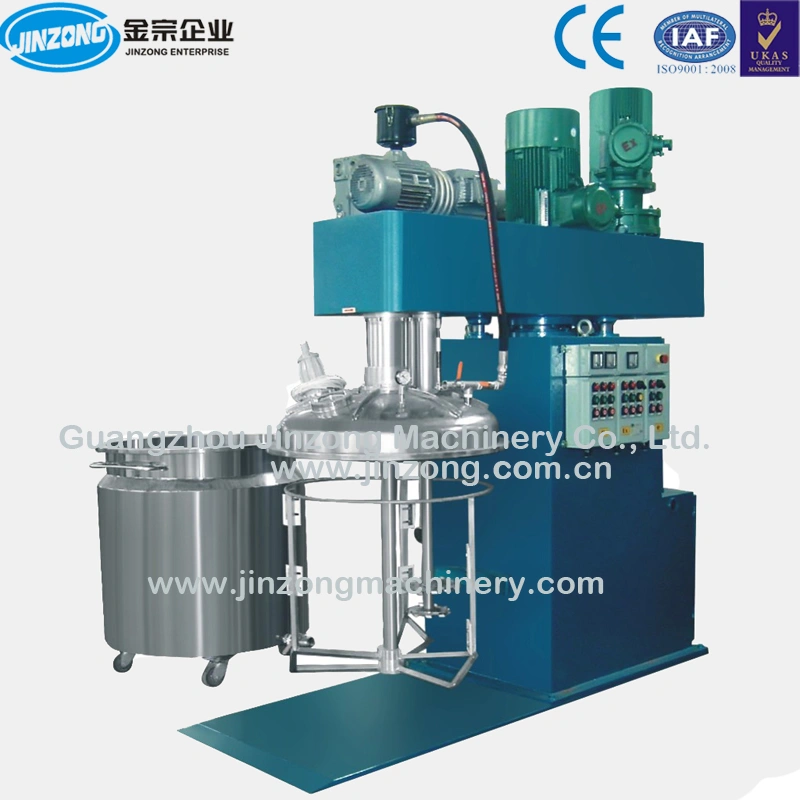

100L Planetary Mixer with Distillation System for Putty, Silicone Gel

100L Planetary Mixer-Reactor with distillation system:
Kettle:

• Working volume: 100L. Two-layers structure: internal layer made of SUS316L stainless steel for acidity,
external layer made of SUS304.
Heating/cooling system: coil pipes in the jacket for cooling water & jacket for heating oil. Source of heating -
oil. Plus 3 additional units of electric heater inside.
Distillation system: Horizontal condenser; Size Ø 219x1500mm; condensing area: 1.6m2
• Mixer type: double twists + 2 dissolvers. Revolution speed: 0-65rpm, inverter controller; Rotation speed: 0-
90rpm, inverter controlled. Mixing speed: 0-90rpm. Dispersing speed: 0-2200rpm.
• Power of revolution Motor: 2 motors -- Power of revolution motor is 4KW, disperser motor is 7.5KW.
• Revolution speed: 0-65rpm. The stirring system adopts planetary gear driven. The stirring blades run both
revolution and rotation with variable frequency speed control, to make the materials roll in all directions and
get ideal stirring effect.
• Hydraulic lifted: Up & down distance is 1000mm.
• Possibility to work in vacuum: Maximum vacuum reaches to 0.098Mpa



*Advantage
For more than 20 years Guangzhou Jinzong Machinery Co., Ltd. has developed cost effective solutions and innovative processes for the production of high quality synthetic resins and polymer emulsions for Asia , Middle East, and South America.
Jinzong Machinery has in-house capabilities to both upgrade existing synthetic resin and polymer emulsion manufacturing plants and design new ones with state of the art process control systems.
*After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to  abroad  installation and debugging.

*ONE-STOP SERVICES:
According to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services

*Providing technical support in the aspects of field commissioning and running of the products sold.
*Field failure diagnosis and maintenance.
*Providing spare parts and fittings, maintenance and servicing plans.
*Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.

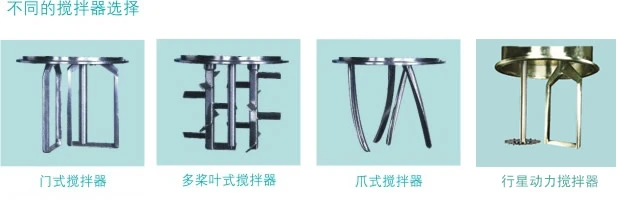

 Mixing system

*About us:
Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of  cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.

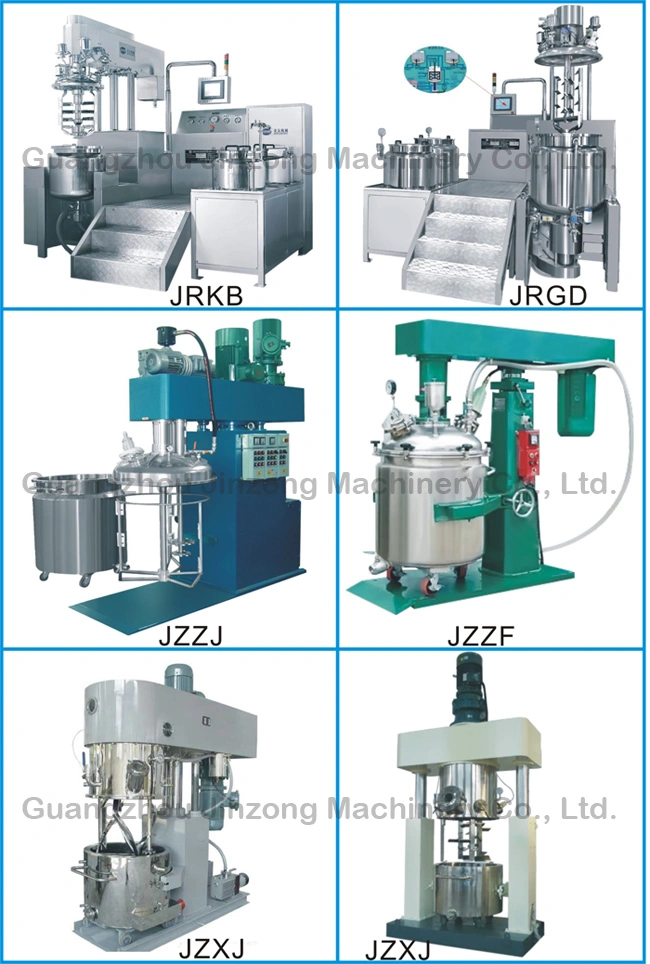

Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill,  filling machine etc.
2> Chemical Machinery:  reactor, mixing equipment, separation equipment, storage tank, disperser, mill  etc.
3> Biological and Pharmaceutical  Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.

*Our strength
1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate.  We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
4.Have a Professional after-sales service engineering team.
5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year
