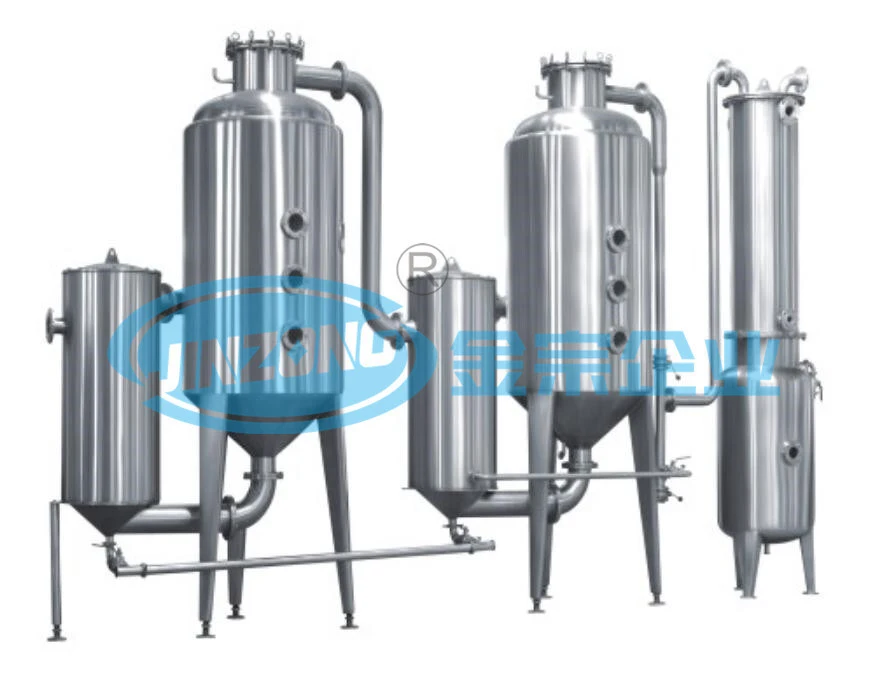

Vacuum Milk Evaporator Multiple Effects Distillation Concentrator

Vacuum Milk Evaporator multiple effects distillation concentrator


Leveraging on our vast industry experience, we are capable of offering our clients with Milk Evaporator. These are used for storing & processing milk and find wide acceptance in dairy companies. Further, we are also engaged in providing installation and customized manufacturing of the products as per the size and capacity detailed by our clients.

Production parameter:
1. Type number: JZSJN2-***
2. Evaporation capacity: customized
3. Steam pressure: <0.1MPa
4. Evaporation temperature: the first effect 80ºC, the second effect 60ºC.
5. vacuum degree: the first effect 0.05MPa, the second effect 0.08MPa.
6. concentration specific gravity: 1.2-1.25
7. heating area: customized
8. cooling area: customized
9. steam consumption: customized
10. size: customized



All contact parts are manufactured from SS316L grade stainless steel sheets and are GMP compliant construction.
Heating chamber, condenser tubes and intermediate connecting pipes are all mirror polished, which ensures smooth flow of materials, no blockage, no coking and clogging phenomenon in heating chamber, reduces scaling and cleaning times, and improves production efficiency.
 The concentrator adopts external heating natural circulation and negative pressure evaporation. It has fast evaporation speed, high concentration ratio, up to 1.3, and does not need open collection.
The concentrator uses two-effect evaporation at the same time, and the secondary steam is used for heating, which not only saves the investment of the boiler, but also saves the energy consumption. It reduces the energy consumption by 50% compared with other evaporators.
The material is concentrated in the sealed foam free state. It is not easy to leakage material then reduce pollution. The material can be completed concentrating in one day. It is not easy to coke but easy to clean. The heater can be cleaned when cover open. One person can operate by himself and the labor force can be saved.

It is suitable for concentrating of liquid materials for traditional Chinese medicine, western medicine, starch, food, chemical industry and light industry.
