Stainless Steel Plate Filter Press

Stainless Steel Plate Filter Press

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Model NO.WBGTrademarkJinzong Machinery
Transport PackagePlywood CaseSpecificationCE, ISO, SGS
OriginGuangdong, China(Mainland)HS Code8419500020

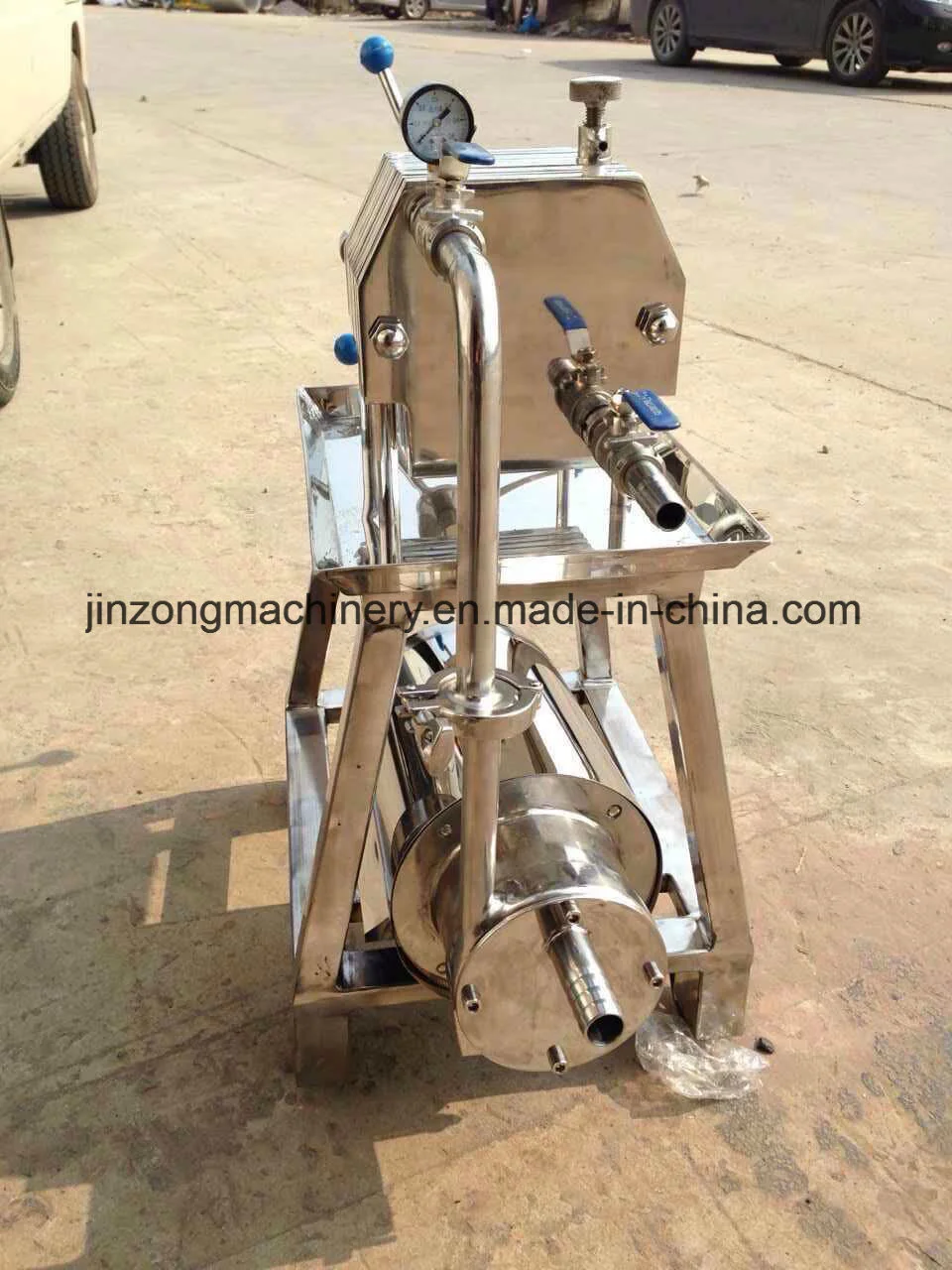

Stainless Steel Plate Filter Press

Production introduction

The equipment is multi-layer frame filter, which is applicable to the process operation with the requirement of fine filtration and semi-fine filtration such as purification ,sterilization and defecation with sealed filtration in the liquid with low viscosity and little slagging content under the concentration of 50%,by directly adopting microporous filtration film, it can realize the sterile filtration without passing the microporous film.

Features
1) The machine is made of 1Crl8Ni 9Ti or 316L high quality stainless steel, corrosion resistant and durable.
2) The filter plate due to use of a screw structure, according to the filtrate of the different production processes (early filter, semi-fine filter, fine filter) requires the replacement of different filter (direct selection of microporous membrane can not go through the microporous membrane Can achieve the purpose of sterile filtration). Users can also according to the size of the production flow, the corresponding reduction or increase filter plate.
3) All parts of sealed parts of the installation of the ring (milky white silicone rubber seals, non-toxic high temperature), no leakage, good sealing performance.
4) The machine work for the pressurized closed filter, liquid material without loss. Liquid clarity is good, in addition to bacteria (the use of medium-speed filter paper and microporous membrane sterilization effect is particularly good).
5)The machine can also be based on user needs, specially equipped with automatic return channel, after the pump stops rotating, open the return valve (both deflation function) all the automatic discharge of sediment discharge. In the filter high viscosity liquid, can make the liquid flow unimpeded, can make a variety of impurities automatically reflux discharge. At the same time with the water from the backhammer back to the filter for temporary cleaning and for the convenience.
6)The pump and the input tube part of the connection by the three fold-type ring, a solid seal, easy to unload cleaning

Techical parameters
TypeLayersFiltration Area(m2)Filter Material Size (mm)Membrane Pore Size (um)Filtration Pressure(Mpa)Water Flow(T/h)Motor (Kw)Dimension(mm)
WBG-100100.078Φ1000.1~500.150.80.55600×300×600
WBG-150100.170Φ1500.1~500.151.50.75650×380×650
WBG -200100.314Φ2000.1~500.152.01.1650×400×700
WBG -300100.700Φ3000.1~500.154.01.1700×500×800
WBG -400101.250Φ4000.1~500.156.01.1900×600×1000
WBG -400162.000Φ4000.1~500.159.01.51000×600×1000
WBG -400202.500Φ4000.1~500.210.01.51100×600×1000
WBG -400324.000Φ4000.1~500.313.02.21320×600×1000
WBG -500122.000Φ5000.1~500.381.51100×720×1200
WBG -500163.000Φ5000.1~500.3132.21350×720×1200
WBG -500224.000Φ5000.1~500.3162.21350×600×1200
WBG -500265.000Φ5000.1~500.3203.01350×720×1200
Note:flow plate frame filter can be customized

Packaging:

Packed by wooden case usually.

According to customer's requirement, other packaging is available as well.

Shipping:

European Countries: 22-28 days

United States: East --13-16 days, West--21-28 days

Brazil: 30-40 days

Russia: 36 days

Asia Countries: 3-5days
Stainless Steel Plate Filter Press
