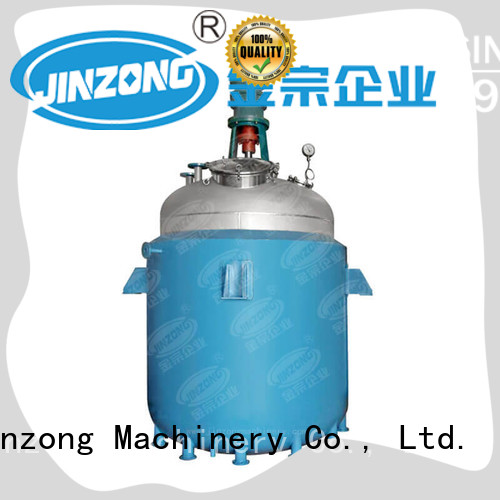

Stainless steel Jacketed Type Reactor 1
Stainless steel Jacketed Type Reactor 2
Stainless steel Jacketed Type Reactor 1
Stainless steel Jacketed Type Reactor 2

Stainless steel Jacketed Type Reactor

MOQ:
1pcs
Place of Origin:
Guangdong,China
Payment Terms:
L/C, T/T, Westernunion, Paypal, Cash
Delivery Time:
3-30 working days depends on quantity
Accept Custom Service:
Yes
Certification:
CE / ISO9001:2015 / SGS
Inquiry
Enterprise Strength
  • Logistics plays a key role in Jinzong's business. We constantly promote the specialization of logistics service and build a modern logistics management system with advanced logistics information technique. All these ensure that we could provide efficient and convenient transportation.
Product Details
Jinzong's mechanical equipment is processed based on the latest technology. It has excellent performances in the following details.Good materials, advanced production technology, and fine manufacturing techniques are used in the production of mechanical equipment. It is of fine workmanship and good quality and is well sold in the domestic market.
  • Stainless steel Jacketed Type Reactor 3
Company Advantages
1. There are several major production processes included in Jinzong Machinery jacketed reactor manufacture, namely, materials opening and cleaning, loosening the fibers, lapping, dyeing, and printing.
2. The product is approved by experts and has good performance, durability and practicality.
3. Guangdong Jinzong Machinery Co., Ltd. provides customers with 'one-stop' services such as project consulting, application, design and etc.

The reactor is widely used for reaction, evaporation, concentration, synthesization, extraction, polymerization, mineralization, etc.in chemical industry, medicine, dye, pesticide, organic synthesis, petroleum, food additives, industry of national defense and scientific research. Our company is an enterprise specialized in designing and manufacturing reaction kettles. With twenty years of experience in manufacturing reaction kettles, we can design and manufacture various types of reaction kettles for users.

*Product Function Brief:
A. Operating principle: Break down or recombined the materials through mixing, filling and cooling, to promote the reaction of polymerization.
B. Components: Body, gears, mixing devices, heating devices, cooling devices, seal, etc.
C. Auxiliary Equipment: Distillation column, head tank, condenser, water separator, collecting cans, filters, etc.
D. Widely used in: Resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production.
E. Applicable Field: All the liquid-liquid, liquid-powder reaction industry.


Model Selection Reference of Reactor


CompositionInstruction
Capacity50L-50T
Heating MethodSteam heating, electrical heating, conduction oil heating by jacket
Cooling methodWater cooling, conduction oil cooling by inner coil or jacket
Design Pressure MpaAtmospheric pressure or under pressure or pressure tank
Blending PowerModel selection is made according to material viscosity, liquid—solid ration, liquid specific gravity, solid specific gravity, solid granularity, rotation speed, paddle type,
with or without baffle or internal coil
Stirring Blade FormsAnchor type, frame type, flat paddle type, pitched paddle type, ribbon type, turbo type, pusher type and multiple compound type
SealMechanical seal or stuff packing seal
Inner Surface TreatmentPolished or no polished
Discharge ValveFlanged ball valve, open downward discharge valve and others
Technological Pipe HoleManhole, sight glass, distillation mouth, imported materials, pressure gauge port, temperature mouth, mouth filling N2, a gate, hot-carrier import and export of the cooling fluid,
temperature measurement ports, sampling ports, emptying the mouth, according to the process above requirements increase or decrease.
Stirring Blade Forms Selection


Mixing system is the core component of reactor, a custom-made stirrer is your key to success. Stirrer selection is related with the material’s viscosity, liquid-solid ratio, proportion of liquid, solid’s weight, solid’s particle size, blade type, rotating speed, baffle, internal pipe coil etc.


Stainless steel Jacketed Type Reactor 4
Stainless steel Jacketed Type Reactor 5
Stainless steel Jacketed Type Reactor 6


Stainless steel Jacketed Type Reactor 7
Stainless steel Jacketed Type Reactor 8
Stainless steel Jacketed Type Reactor 9
Technical Specifications


Specifications (L)Cylinder size (mm)Actual volume (L)Jacket volume (L)Heating area (㎡)Motor Power (kw)Speed (r/min)Discharge valve
50450*45061650.780.5585DN25
100450*5001501201.361.185DN25
200600*7002532001.91.585DN40
300750*7503962502.412.285DN40
500900*8006992902.7385DN50
10001200*100013935604.5485DN50
15001300*120021666175.95.585DN50
20001400*1500300075075.585DN65
30001600*15004066105097.563DN65
40001700*180054001226111163DN80
50001800*20006600144012.81163DN80
Application


*Application of Reaction plant:

The whole set of equipment includes reactor, vertical fractionating column, horizontal condenser, water storage tank, oil spill tank and piping (dilution kettle). All parts of the equipment that contact with the material are all made by stainless steel.

*Model selection reference of resin production equipment:

CompositionInstructions
Main ReactorThe size, material, heat transfer systems, mixing systems, sealing systems of reactor according to client's specification
Dosing VesselAccording to the client's demand, it adopts gravity tank, gravity mixing tank, gravity dispersing tank, gravity emulsifying tank.
Distillation DeviceVertical condenser, horizontal condenser and separator.
Vacuum systemAll kinds of vacuum pumps, buffer tanks.
Thinning Vessel/cooling tankThe size, material, heat transfer systems, mixing systems, sealing systems of thinning vessel according to client's specification
Pipeline systemAccording to the client's demand, it decides the heating, cooling, vacuum and material pipelines, and including related valves, flowmeters and expanders etc.
Control SystemAccording to client's demand, it decides manual, semi-automatic or full-automatic system.
Filter SystemFrame filter, bag filter or centrifuge etc.
Operation PlatformSteel platform or concrete platform
Stainless steel Jacketed Type Reactor 10

PVA Emulsions Plant

Stainless steel Jacketed Type Reactor 11

Ink Production

Stainless steel Jacketed Type Reactor 12

Insulation Paint Production

Stainless steel Jacketed Type Reactor 13

Resin Production

Qualification certificate

We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2015 Quality Management System issued by Swiss SGS Company.



Stainless steel Jacketed Type Reactor 14                  CE Certificate

Stainless steel Jacketed Type Reactor 15                           ISO9001:2015

Stainless steel Jacketed Type Reactor 16                                        SGS



Company Features
1. Guangdong Jinzong Machinery Co., Ltd. supplies high quality chemical filling machine with its distinctive business model.
2. Jinzong Machinery masters exceptionally superior technologies for the production of chemical making machine .
3. Our aim is to provide the most competitive product solution and service to customers and continue to create the maximum value for them. Get info! In our factories, our sustainability process drives decreased energy consumption by installing new technologies and more efficient facilities while optimizing business and manufacturing processes. Get info! Customers are the key factor in our success. We try our best to gain deep knowledge of the market trends of the products and closely cooperate with other companies to create distinctive and targeted products. To upgrade our production ways to minimize pollution, we have introduced adequate facilities for the disposal of wastes. These facilities enable us to handle wastes in line with international waste treating standards.
Contact Us

Stainless steel Jacketed Type Reactor 17


Product Description

 Stainless steel Jacketed Type Reactor 19

Stainless steel Jacketed Type Reactor 21

Stainless steel Jacketed Type Reactor 23

The machine use the measurement method of screw filling match electronic weighing feedback, computer control, the function and automatic weighing,automatic filling, automatic error correction, account quantity, clean material and so on. It is suitable for condiments (such as spicy fresh), natural flavoring (Shi Sanxiang), food additives, flavors and fragrances, flour, milk powder, protein powder, solid drink, sugar, monosodium glutamate, pesticides, veterinary drugs, detergents, enzymes, feed additives, chemicals, new building materials and other powder (powder, superfine powder), powder mixed materials quantitative packaging, quantitative filling.



Features:



Quantitative filling for a variety of bottles, cans, bags

Under photoelectric sensors feed, also optional foot switch cutting

Feedback called indexing is adjustable to meet a variety of precision required

Filling the motor speed can be adjusted to meet the requirements of a variety of materials

All stainless steel, coupled with the feeder can automatically level control.



Features:

Automatic error correction

Weight tolerance alarm

Product count



Features:

Automatic error correction

Weight tolerance alarm

Product count



Data sheet

Filling range: 1-5000 gram

Accuracy grade: 10 grade

Filling speed: 1200-3500 bags/h

Voltage and Power : 380V, 50HZ, 0.9KW

No.

Commodity

Model

Machine dimension(MM)

Package dimension(MM)

N.W

G.W

1

Filling machine

HF-F1

2000*620*830

2100*700*1000

200KG

260KG

2

Feeding machine 1

HF-T

810*880*810

890*950*1000

100KG

130KG

3

Feeding machine 2

HF-T

2460*160*300

2550*230*480

50KG

70KG

Stainless steel Jacketed Type Reactor 25

Stainless steel Jacketed Type Reactor 27Stainless steel Jacketed Type Reactor 29Stainless steel Jacketed Type Reactor 31Stainless steel Jacketed Type Reactor 33

Stainless steel Jacketed Type Reactor 35
