Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers
Stainless Steel Generator for Chemcail Industry, Aundry Room and Hotel
| Model NO. | DLD | Drum Placement | Vertical Boiler |
| Pressure | Low Pressure | Manufacturing Level | A |
| Burning Style | Chamber Combustion Boiler | Usage | Industrial |
| Brand Name | Jinzong Machinery | Place of Origin | Guangdong, China (Mainland) |
| Voltage | 220V/380V | Warranty | 1 Year |
| After-Sales Service | Engineers Available to Service Machinery Overseas | Reated Steam Pressure(MPa) | 0.4-0.7 |
| Power(Kw) | 4-72 | Rated Steam Temperature | 152-170 ºC |
| Emission | Environment Friendly | Material | Stainless Steel |
| Trademark | Jinzong Machinery | Transport Package | Plywood Case |
| Specification | CE, ISO, SGS | Origin | Guangdong, China(Mainland) |
| HS Code | 8419500020 |

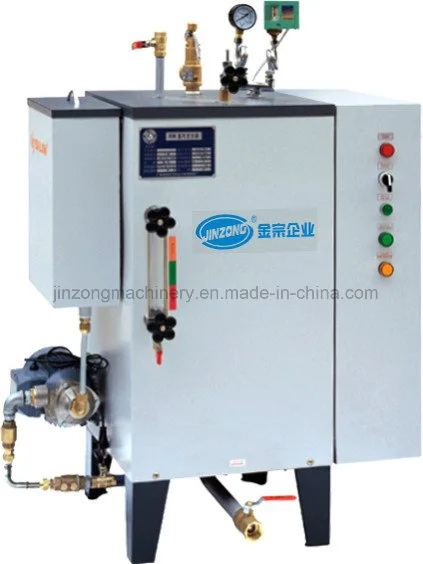

Production introduction
This steam generator is used in the garment, food, chemical industry, scientific research institution, laundry room and hotel, etc.
Features
1) Save time: electric heating tube uses sectional switch for heating control, it needs about 8 minutes to boil cold water to steam , which can save 4 hours per day.
2) Save human power : Full automatic control, high security, automatic water supply, simple operation, with alarm system and other equipment. .
3) Save space: small size, it is suitable for city, high-rise and urban areas.
4) Save electric: the internal structure is special, high thermal efficiency , steam is dry without water.
5)Water tube internal furnace is made of special seamless steel tube, it is sturdy and durable, long life, high pressure resistance.
6)This machine has double sealed glass fiber insulation device, which can prevent heat loss, save fuel and achieve the highest moisturizing effect.
7) The installation is simple, no need large space, with the double devices of the high temperature and high pressure safety valve, which is safe and reliable.
| Power(kw) | Rated Steam Capacity(Kg/h) | Rated Steam Pressure(Mpa) | Voltage(v) | Dimension(cm) |
| 4 | 6 | 0.4-0.7 | 220/380 | 48×32×60 |
| 6 | 8 | 0.4-0.7 | 220/380 | 50×35×68 |
| 9 | 12 | 0.4-0.7 | 220/380 | 55×35×80 |
| 12 | 16 | 0.4-0.7 | 380 | 55×38×80 |
| 18 | 24 | 0.4-0.7 | 380 | 58×45×110 |
| 24 | 32 | 0.4-0.7 | 380 | 58×45×110 |
| 36 | 50 | 0.4-0.7 | 380 | 70×50×130 |
| 48 | 65 | 0.4-0.7 | 380 | 70×50×130 |
| 60 | 85 | 0.4-0.7 | 380 | 80×60×145 |
| 72 | 108 | 0.4-0.7 | 380 | 85×70×145 |
Packed by wooden case usually.
According to customer's requirement, other packaging is available as well.
Shipping:
European Countries: 22-28 days
United States: East --13-16 days, West--21-28 days
Brazil: 30-40 days
Russia: 36 days
Asia Countries: 3-5days
Our Services:
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
company information:
Jinzong Machinery is a manufacturer of processing machines ( crusher,reactor, mixing tank, high speed disperser, sand mill, filling machine , paint&coating production line) for chemcial industry with more than 20 years experiences and best service in China, which covers an area of 1,7000 square meters, has 5 workshops now.
1.Why do you choose us?
·High quality and competitive price.
·Approved by ISO, CE, GS and etc.
·One year warranty; perfect after-sales service for spare parts.
·Easy maintenance.
2.What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line.
(1) Vacuum emulsifying machines series
Upper-homogenizer vacuum emulsifying mixer
High-efficiency vacuum homogenzing emulsifying mixer
Tilting vacuum homogenzing emulsifying mixer
Fixed type vacuum emulsifying mixer with internal&external circulation
Fixed type homogenzing emulsifying mixer
Compact type vacuum omogenzing emulsifying machine
Multifunctional laboratory emulsification machine
(2) Liquid detergent production line
(3) Liquid detergent mixer
(4) Sanitary storage tank
(5) Perfume freezing machine
(6) Power equipment
(7) Lipstick equipment
(8)Filling machine
Automatic cream& paste filling machine
Automatic liquid filling machine
Semi-automatic ointment and liquid filling machine
Automatic cosmetic facial masks filling and sealing machine
Automatic tube filling and sealing machine
Automatic lainated tube filling& sealing machine
(9)Labeling machine
Multi-function flat&round bottles labeling machine
(10) Auxiliary equipment series
Packing machine
Sealing machine
Conveyor table
Capping machine
Auxilary equipment
Steam generator
Laboratory equipment
company information:
Jinzong Machinery is a manufacturer of processing machines (vacuum emulsifying homogenizer mixer, liquid detergent production,storage tank, filling&packing machine,etc) for chemcial industry with more than 20 years experiences and best service in China, which covers an area of 1,7000 square meters, has 5 workshops now.
Our Certificates
Choose JINZONG, choose contentment
Please contact me if you are interested and have any questions
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
Tel: +86-758-3623881
E-mail: sales@jinzong.com.cn
Fax: +86-758-3623880
Address: NO.3 Kangtai St., Hi-tech Dist., Zhaoqing City, Guangdong Province, China（526238）
