Stainles Steel Scraper Fineness Meter / Coating Scraper Fineness Meter
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Usage | For Inspection | Shape | Rectangular |
| Customized | Non-Customized | Brand Name | Jinzong Machinery |
| Place of Origin | Guangdong, China (Mainland) | Measurement Ranges | 0-100um |
| Effective Groove Size (L*W) | 150×12.5mm | Size | 170*50*12mm/175*65*12mm |
| Number of Grooves | 1or 2 | Trademark | Jinzong Machinery |
| Transport Package | Plastic Box/ Plywood Cases | Specification | CE, ISO, SGS |
| Origin | Guangdong, China(Mainland), |
1. Description Of Scraper Fineness Meter
Scraper Fineness Meter are strictly manufactured according to GB/T 1724, GB/T6753.1, ISO1524 of standard productions, are used to measure coating, paint, printing ink, other liquid, paste pigment and impurities particle size and dispersion degree, then to control in the production, storage and application of quality, such as paint, plastic, pigment, printing ink , paper, ceramic, pharmaceutical, food and many other industries.

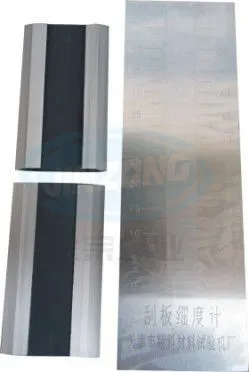

The Fineness Gauges is flat steel with block in the surface of which are grooves varying in depth from a maximum at one end of the block to zero in the other end. Groove depth is graduated on the block according to one or more scales used for measuring particle size.
Scraper Fineness Meter
The degree of dispersion is indicated in Microns(µm) or Hegman(H), The Hegman scale ranges are from 0 to 8 with numbers increasing as the particle size decreases.
0 Hegman =100 microns particle size
4 Hegman =50 microns particle size
8 Hegman =0 microns particle size
2. Technical Specifications Of Scraper Fineness Meter
Scraper Fineness Meter are strictly manufactured according to GB/T 1724, GB/T6753.1, ISO1524 of standard productions, are used to measure coating, paint, printing ink, other liquid, paste pigment and impurities particle size and dispersion degree, then to control in the production, storage and application of quality, such as paint, plastic, pigment, printing ink , paper, ceramic, pharmaceutical, food and many other industries.
The Fineness Gauges is flat steel with block in the surface of which are grooves varying in depth from a maximum at one end of the block to zero in the other end. Groove depth is graduated on the block according to one or more scales used for measuring particle size.
Scraper Fineness Meter
The degree of dispersion is indicated in Microns(µm) or Hegman(H), The Hegman scale ranges are from 0 to 8 with numbers increasing as the particle size decreases.
0 Hegman =100 microns particle size
4 Hegman =50 microns particle size
8 Hegman =0 microns particle size
2. Technical Specifications Of Scraper Fineness Meter
| Order Information | Effective Groove Size (L×W) | Ranges | Overall dimension | Division value | Display unit | Number of Grooves |
| Single-Channel Grind Gauge | 140×12.5mm | 0-25µm | 170×50×13mm | 1.25 | µm | 1 |
| 0-50µm | 170×50×13mm | 2.5 | µm | 1 | ||
| 0-100µm | 170×50×13mm | 5 | µm | 1 | ||
| Double-Channel Grind Gauge | 140×12.5mm | 0-25µm | 175×65×13mm | 1.25 | µm | 2 |
| 0-50µm | 175×65×13mm | 2.5 | µm | 2 | ||
| 0-100µm | 175×65×13mm | 5 | µm | 2 | ||
| ISO-Channel Grind Gauge | 140×12.5mm | 0-25µm | 175×65×13 | 1.25 | µm | 1 |
| 0-50µm | 175×65×13 | 2.5 | µm | 1 | ||
| 0-100µm | 175×65×13 | 5 | µm | 1 | ||
| Wide-Channel Grind Gauge | 140×12.5mm | 0-25µm | 175×65×13 | 1.25 | µm | 1 |
| 0-50µm | 175×65×13 | 2.5 | µm | 1 | ||
| 0-100µm | 175×65×13 | 5 | µm | 1 |
Guangdong Jinzong Machinery Co., Ltd. adopts imported raw material to ensure quality of mechanical equipment. The product has the merit of full traceability.
Guangdong Jinzong Machinery Co., Ltd. uses scientific manufacturing processes in mechanical equipment production process. The product has the merit of full traceability.
