Ss Duplex Basket Filter for Pharma Processing
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Filtration Grade | Medium Filter | Filter Bag Sectional Shape | Round Bag |
| Filter Bag Environment | High-Temperature | Cartridge Installation | Vertical Lifting |
| Trademark | JINZONG | Transport Package | Carton |
| Specification | SUS304, 316L | Origin | Guangdong |
| HS Code | 8422303090 |
SS Duplex Basket Filter for pharma processing
We are one of the leading manufacturers and exporters of high quality Duplex Filters. These filters are manufactured using very high quality raw material procured from the most reliable vendors of the industry. They are quality tested on various parameters to ensure their compliance with industry set quality standards. The entire process takes place under the surveillance of our expert professionals and are packed using very high quality material to ensure safe transportation. These duplex filter consist of two filtration chambers each rated for 100% capacity and are attached with easy to remove basket for cleaning.
Design Features :
Duplex filter is designed for continuous filtration.
Standardized and modular filter housing design for any flow rate & any micron rating filtration.
Large filtration surfaces
simple handling
All SS 304/316 construction as per requirement
Standard size inlet/ outlet N.B. pipe line from ½" to 3"
Tested pressure: 10 bar
No constraint on working temperature up to 40 °C to 100 °C
Standard leak proof filter elements
Easy changeover/ replacement
We are one of the leading manufacturers and exporters of high quality Duplex Filters. These filters are manufactured using very high quality raw material procured from the most reliable vendors of the industry. They are quality tested on various parameters to ensure their compliance with industry set quality standards. The entire process takes place under the surveillance of our expert professionals and are packed using very high quality material to ensure safe transportation. These duplex filter consist of two filtration chambers each rated for 100% capacity and are attached with easy to remove basket for cleaning.

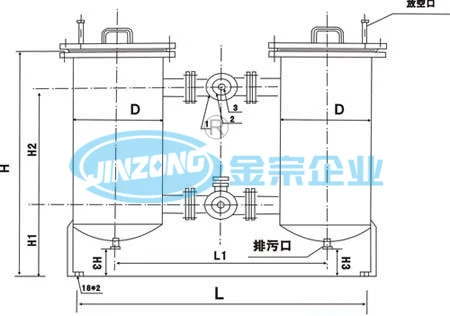

The duplex filter system consists of two filter housings connected in parallel through change over ball valves. A duplex filter can operate continuously and never have to be shut down for cleaning. Duplex filter has two simple filters connected by way of common flow diverter. When one filter gets clogged the flow can be diverted to second filter housing through change over valves. The cartridges of that filter housing can then be washed/ changed and replaced.
Design Features :
Duplex filter is designed for continuous filtration.
Standardized and modular filter housing design for any flow rate & any micron rating filtration.
Large filtration surfaces
simple handling
All SS 304/316 construction as per requirement
Standard size inlet/ outlet N.B. pipe line from ½" to 3"
Tested pressure: 10 bar
No constraint on working temperature up to 40 °C to 100 °C
Standard leak proof filter elements
Easy changeover/ replacement
The positive market response indicates the good market prospect of the product. The product has high sensitivity to quickly respond to users' operation.
This product has the advantage of cost-effectiveness and has become a trend in this field. The product has high sensitivity to quickly respond to users' operation.
