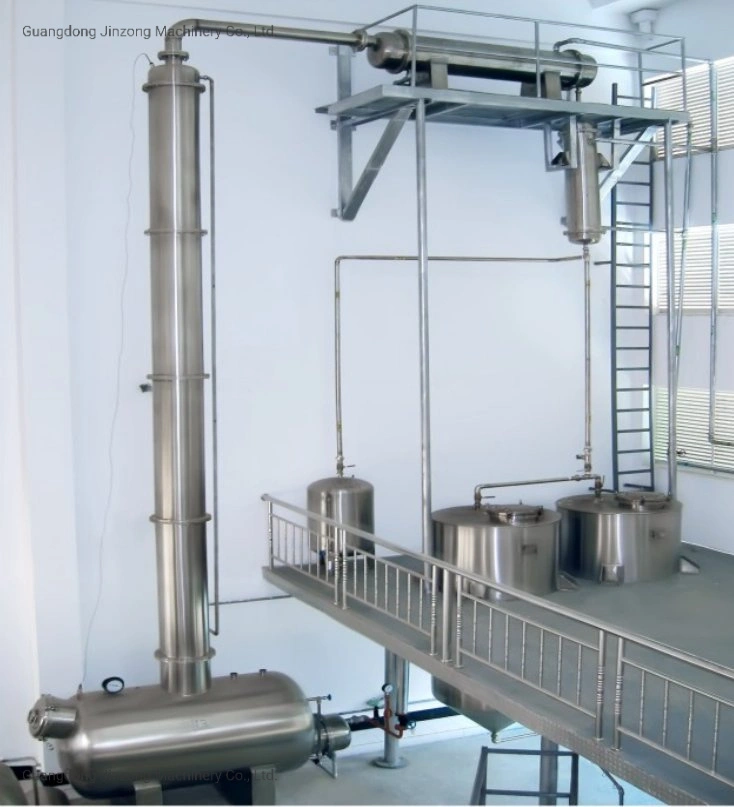

Vacuum Evaporator Concentration Alcohol Deposition Tank Ethanol Recovery Tower

Vacuum Evaporator Concentration Alcohol Deposition Tank Ethanol Recovery Tower

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Model NO.JZ-JH-200CustomizedCustomized
ConditionNewWarranty1 Year
After-sales ServiceOne Year Warranty, Lifelong MaintenanceTrademarkJinzong Machinery
Transport PackagePlywood CaseSpecificationDepends on Capactiy
OriginGuangdong, China (Mainland)HS Code8419899090
Stainless Steel Vacuum Evaporator Concentration Alcohol Deposition Tank Ethanol Recovery Tower

Alcohol Recovery Tank


Vacuum Evaporator Concentration Alcohol Deposition Tank Ethanol Recovery Tower
Supply reaction vessel for pharmaceutical production, with reactor and mixer. customized.
single-effect alcohol recovery concentrator  external circulation vacuum concentrator

1. Applications:

The equipment is applied for the alcohol recycling in the industries such as pharmacy, food, light industry, chemical and so on, for the purpose of reducing production costs and enhancing the economic benefit.

Vacuum Evaporator Concentration Alcohol Deposition Tank Ethanol Recovery Tower


2. Advantages:
The equipment is such a great device for recycling alcohol to distill rare alcohol at temperature of 30-50 degree up to 90ºC-95ºC, and because of high alcohol degree requirement for the finished product,the circumfluence rate may be enhanced but with result of decreased output of relative finished product, the mellow degree in the residue liquid ≤3degree.

This equipment adapt high efficiency stainless steel corrugated padding material, all surface that touch with alcohol such as tower body, condenser, pressure stabilizer tank, cooling coil pipe are made of stainless steel, to ensure finished alcohol product not be polluted. At the same time, U-shape tube so that the heating external wall and distilling chamber inside can be cleaned. There are two kinds of modes for the equipment to adopt. That is external heating JHW or inner heating JHN, of which the external heating is mainly subject to JH500 structure or more with high speed of evaporation and both alcohol recycling and condensing may be finished.


3. Feature:
1 the machine can be operated under vacuum, the vacuum degree can be -0.8 to -0.098Mpa
2 it can save energy 30% because it is operated under vacuum,
The quick opening device is equipped in top of the heater for easy cleaning, there is no dead corner, so it is convenient to clean
4 the machine is completely, you just connect the electric, steam and cooling water,then you can operate the machine
5 the material of the machine is stainless steel and it is polished it is according to GMP standard.
6 the machine can be operated continuously.
7.The whole operating process is controlled in vacuum condition to avoid pollution and bubbles.

Vacuum Evaporator Concentration Alcohol Deposition Tank Ethanol Recovery Tower


This single-effect alcohol recovery concentrator  external circulation vacuum concentrator is suitable for organic solvent recovery and concentration of liquid materials in pharmacy, food, and chemical industries.
1. The unit mainly composed of heater, evaporator, condenser and cooler.
2. It is particularly designed for recovery of alcohol and organic solvents. The evaporation area and condensate area are greatly expanded by our concentrator, and a defoamer is equipped in the top of evaporation chamber. All these factors enables loss rate of organic solvents to be controlled below 3%.
3. Its evaporating speed is very fast, and concentration proportion can reach above 1.2.
4. The automatic drainage device is installed to reduce labor intensity.


For more info, please contact us
