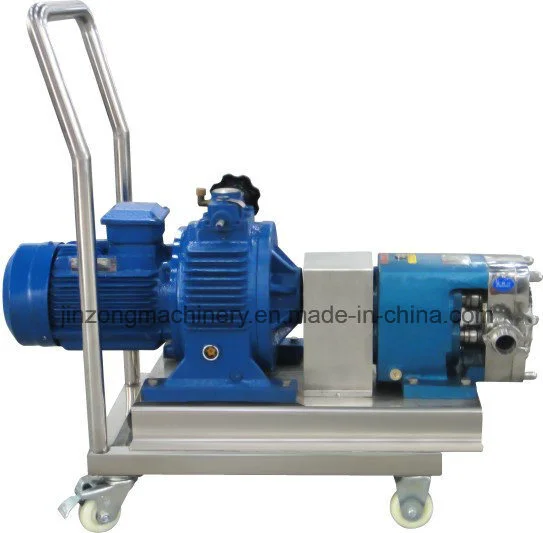

Sanitary Rotor Pump for Transferring Ointment or Liuqid
| Model NO. | JZ | Place of Origin | Guangdong, China (Mainland) |
| Voltage | 220V/380V/415V/440V | Warranty | 1 Year |
| After-Sales Service | Engineers Available to Service Machinery Overseas | Trademark | Jinzong Machinery |
| Transport Package | Plywood Case | Specification | CE, ISO, SGS |
| Origin | Guangdong, China(Mainland) | HS Code | 8479820090 |
Production introduction
Stainless steel rotor pump (also known as Roots pump), the introduction of foreign advanced technology, digested and absorbed, carefully designed, developed from the current domestic similar products in the leading position, because it not only has all the rotor pump (Example: gear Pump, cam pump, screw pump ...] common, but also its unique delivery of high viscosity material properties, so we call this pump as a colloid pump.
Features:
(1) Where contact with the media (material) are made of stainless steel (material SUS304, AISI316, 316L) fully comply with sanitory standards.
(2) suitable for conveying high viscosity, concentration and any particles containing the media (material).
(3) for the temperature -30 ºC ~ 200 ºC.
(4) high pressure, for long distance and high resistance quantitative delivery.
(5) low speed, usually between 200rpm and 600rpm, by the transport of the material to maintain the original quality of the same, no physical and chemical reactions.
(6) no contact between the rotor and the rotor, long-term use and no wear, smooth operation, so the noise is low.
(7) easy and easy loading and unloading, easy to clean, keep hygienic clean.
Applications
Dairy: yogurt, cream, ice cream, cheese and whey.
Beverage: Beer, Wort, Yeast, Soda, Fruit Concentrate, Juice Drink.
Food: Tomato Sauce, Fruit Mud, Vegetable Paste, Pudding, Jam, Jelly, Flavor, Fruit Fill, Sweetener, Yeast Mud, Salad Seasoning, Pastry, Inner Mi, Broken Meat, Net Oil and Edible Oil.
Candy: syrup, creamy stuffing, chocolate.
Cosmetics: cream and lotion, hair gel, hair dye, essential oil.
Drugs: pill paste, extract, emulsion, ointment.
Chemical categories: fat, solvents, resins and polymers, dyes.
Performance:
Flow range: 300L / H ~ 43000L / H
Motor power: 0.55kw ~ 22kw (Promise transmission or variable frequency motor)
Technical parameter:
| Model | Inlet(mm) | L/100R | Speed adjustable range(rpm) | Flow rate(L/H) | Power(kw) |
| JZS-3 | 25 | 3 | 200-500 | 300-800 | 0.75 |
| JZS-6 | 25 | 6 | 200-500 | 650-1600 | 1.5 |
| JZS-8 | 25 | 8 | 200-500 | 850-2160 | 1.5 |
| JZS-12 | 32 | 12 | 200-500 | 1300-3200 | 2.2 |
| JZS-20 | 40 | 20 | 200-500 | 2100-5400 | 3 |
| JZS-30 | 40 | 30 | 200-400 | 3200-6400 | 4 |
| JZS-36 | 50 | 36 | 200-400 | 3800-7600 | 5.5 |
| JZS-52 | 50 | 52 | 200-400 | 5600-11000 | 5.5 |
| JZS-66 | 50 | 66 | 200-400 | 7100-14000 | 7.5 |
| JZS-78 | 75 | 78 | 200-400 | 9000-18000 | 7.5 |
| JZS-100 | 75 | 100 | 200-400 | 11000-22000 | 11 |
| JZS-135 | 100 | 135 | 200-400 | 15000-30000 | 11 |
Packaging:
Packed by wooden case usually.
According to customer's requirement, other packaging is available as well.
Shipping:
European Countries: 22-28 days
United States: East --13-16 days, West--21-28 days
Brazil: 30-40 days
Russia: 36 days
Asia Countries: 3-5days
Our Services:
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
1.Why do you choose us?
·High quality and competitive price.
·Approved by ISO, CE, GS and etc.
·One year warranty; perfect after-sales service for spare parts.
·Easy maintenance.
2.What kind of machines can you supply to customer?
We could offer various kinds of machines and whole production line.
(1) Vacuum emulsifying machines series
Upper-homogenizer vacuum emulsifying mixer
High-efficiency vacuum homogenzing emulsifying mixer
Tilting vacuum homogenzing emulsifying mixer
Fixed type vacuum emulsifying mixer with internal&external circulation
Fixed type homogenzing emulsifying mixer
Compact type vacuum omogenzing emulsifying machine
Multifunctional laboratory emulsification machine
(2) Liquid detergent production line
(3) Liquid detergent mixer
(4) Sanitary storage tank
(5) Perfume freezing machine
(6) Power equipment
(7) Lipstick equipment
(8)Filling machine
Automatic cream& paste filling machine
Automatic liquid filling machine
Semi-automatic ointment and liquid filling machine
Automatic cosmetic facial masks filling and sealing machine
Automatic tube filling and sealing machine
Automatic lainated tube filling& sealing machine
(9)Labeling machine
Multi-function flat&round bottles labeling machine
(10) Auxiliary equipment series
Packing machine
Sealing machine
Conveyor table
Capping machine
Auxilary equipment
Steam generator
Laboratory equipment
company information:
Jinzong Machinery is a manufacturer of processing machines (vacuum emulsifying homogenizer mixer, liquid detergent production,storage tank, filling&packing machine,etc) for chemcial industry with more than 20 years experiences and best service in China, which covers an area of 1,7000 square meters, has 5 workshops now.
