Reverse Osmosis Water Treatment System RO System Water Purifier for Industrial Medicine Chemical
| Customized | Customized | Condition | New |
| Warranty | 1 Year | After-sales Service | One Year Warranty, Lifelong Maintenance |
| Trademark | Jinzong Machinery | Transport Package | Plywood Case |
| Specification | Depends on Capactiy | Origin | Guangdong, China (Mainland) |
Reverse Osmosis Water Treatment System RO System Water Purifier for Industrial Medicine Chemical
Introduction:
The JRO series reverse osmosis equipment can provide high-quality water for the chemical, cosmetic, pharmaceutical, food and othel
industries. The reverse osmosis equipment passes raw water through quartz sand filters, activated carbon filters, R softening filters,
precision filters, etc., and then pump pressure. Using a reverse osmotic membrane(Ro-membrane) with an aperture of 1/10000 um(1/6000 of the size of E.coli. 1/300 of the virus), higher concentrations of water become lower concentrations of water. At the same time, industrial
pollutants. heavy metals. bacteria. viruses. and other impurities that are mixed into the water are all isolated. so as to meet the prescribed
physical and chemical targets and sanitary standards for drinking and produce clear to pure water. Since the water purity produced by the
RO reverse osmosis technology is the highest among all the water-making technologies mastered by humans at present. the cleanliness
is almost 100 %, so people call this water production and its reverse osmosis pure water dispenser
1. Raw water pump-- provide the pressure to quartz sand filter/active carbon filter.
2. Multi-medium filter-- get rid of turbidity, suspended matter, organic matter, colloid, ect.
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter, ect.
4. Softener--exchange "ions" of calcium and magnesium with the most common and easiest method.
5. Micron filter--prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um,
6. High pressure pump-- Provide the high pressure to RO membrane ro.
7.RO system-- main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions.
Specification of JinZong Reverse Osmosis Water Treatment Equipment :
| ITEM No : | JRO |
| Production Capacity: | 0.5T/H (Customized from 500L/H to 10000L/H) |
| Desalting Rate : | 98%-99.5% |
| Pipe Meterial : | High Quality UPVC (Stainless steel for option) |
| Frame Meterial : | 304 Stainless steel (Carbon steel , 316 Stainless steel material for option) |
| Pre-treatment vessel material : | FRP Vessel (Stainless steel or carbon steel for option) |
| RO Membrane Housing : | FRP or Stainless steel |
| Pump Power : | 1.5KW to 7.5KW |
| Operating Pressure : | < 300 psig |
| Maximum Recovery : | 60% to 75% |
| Operating Temperature : | 2C to 35C |
| Nominal Rejection : | 95% to 99% |
| Application : | Tap water,Round water,industrial sewage water,river water |
| Pure water Usage : | Drinking , Food and Beverage , Mineral Water Process. |
| Pure Water Usage : | Pharmacy and Hospital , Chemical Industry , Cosmetic Industry , Printing and Dyeing |
| One stage output water conductivity : | 3 to 8 |

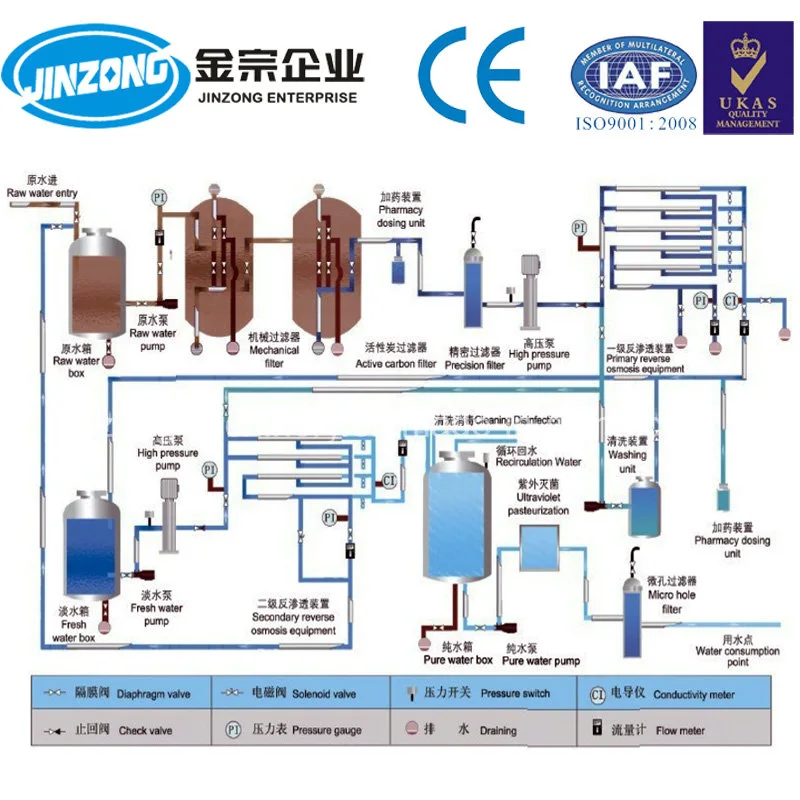

Working process of JinZong Reverse Osmosis Water Treatment Equipment :

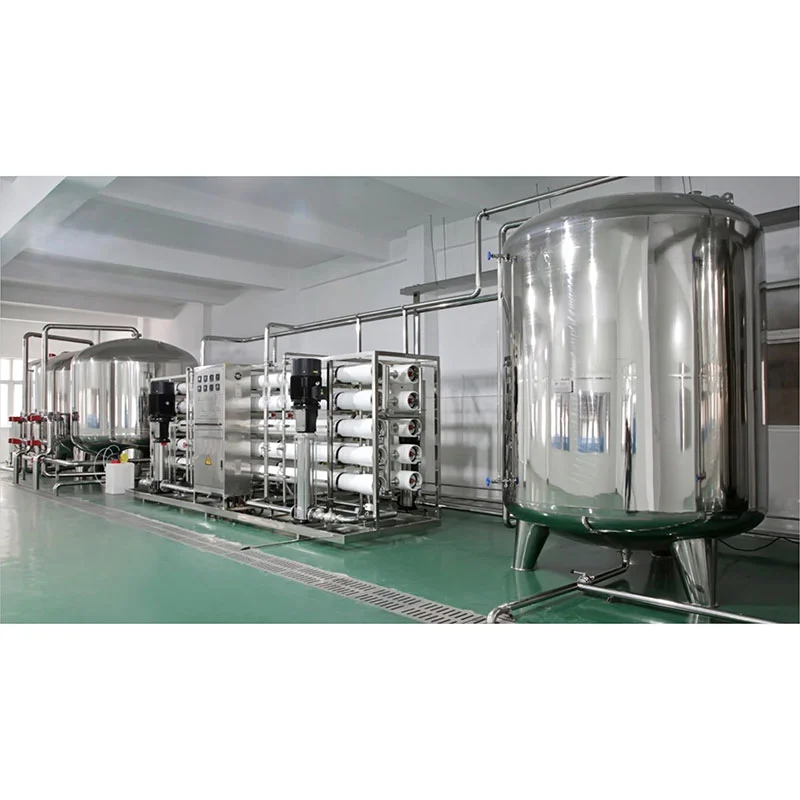

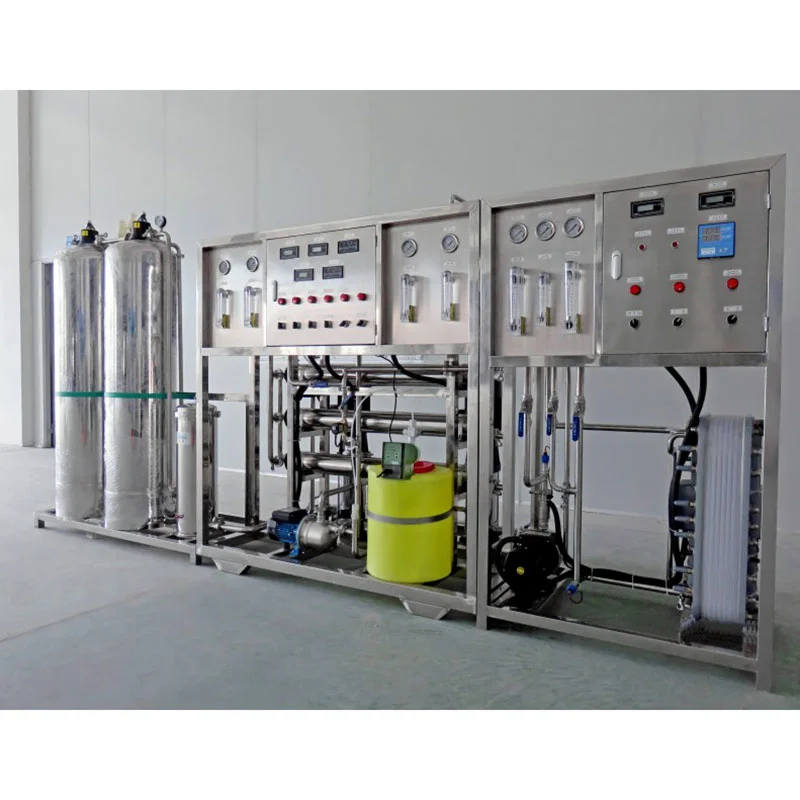

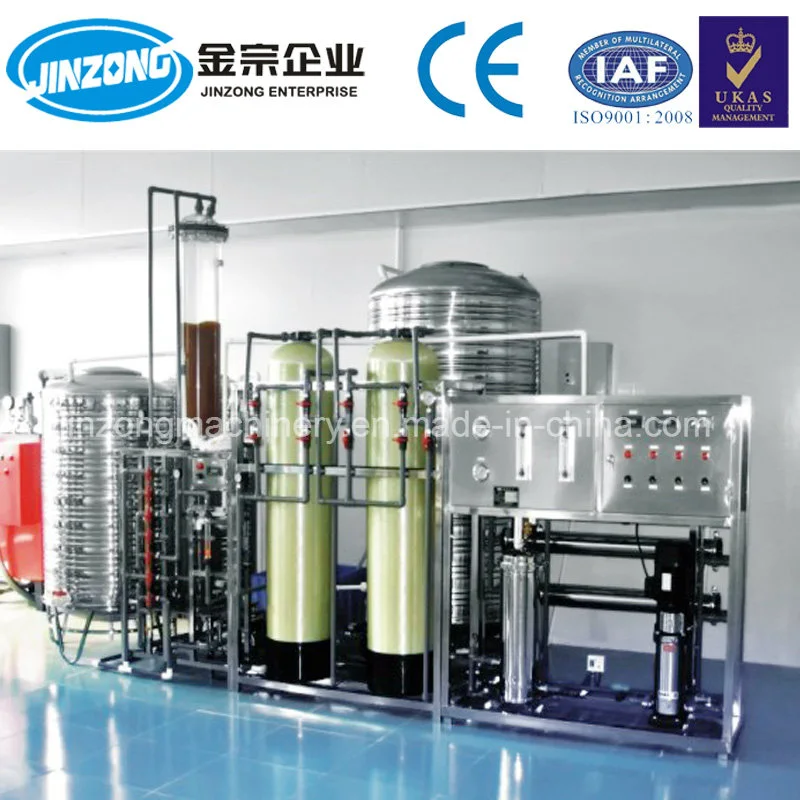

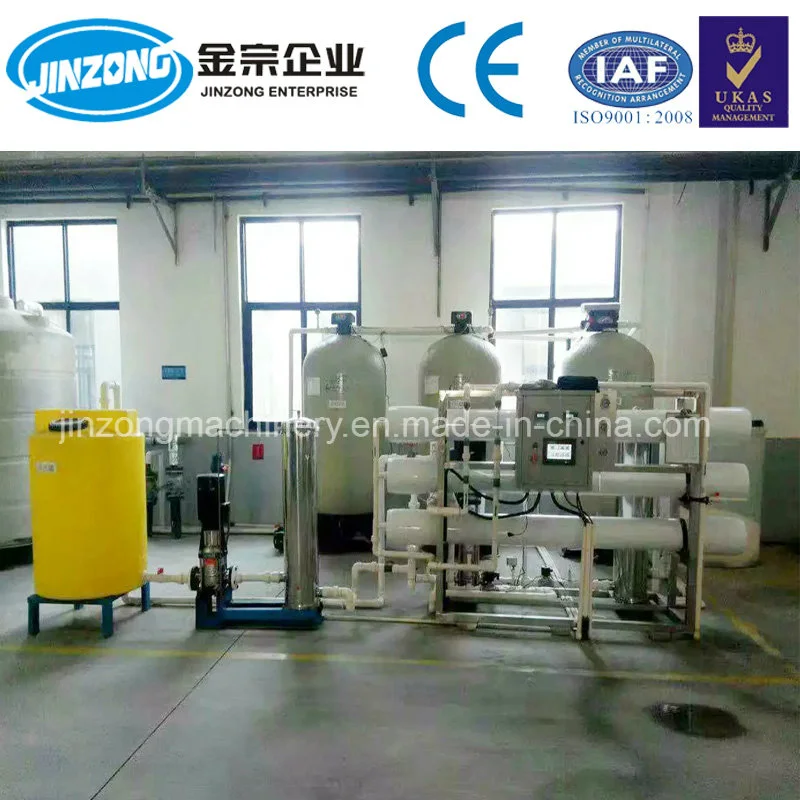

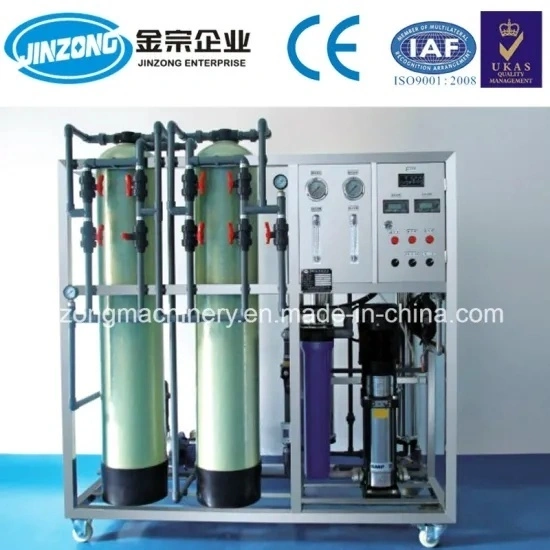

Details show of JinZong Reverse Osmosis Water Treatment Equipment :

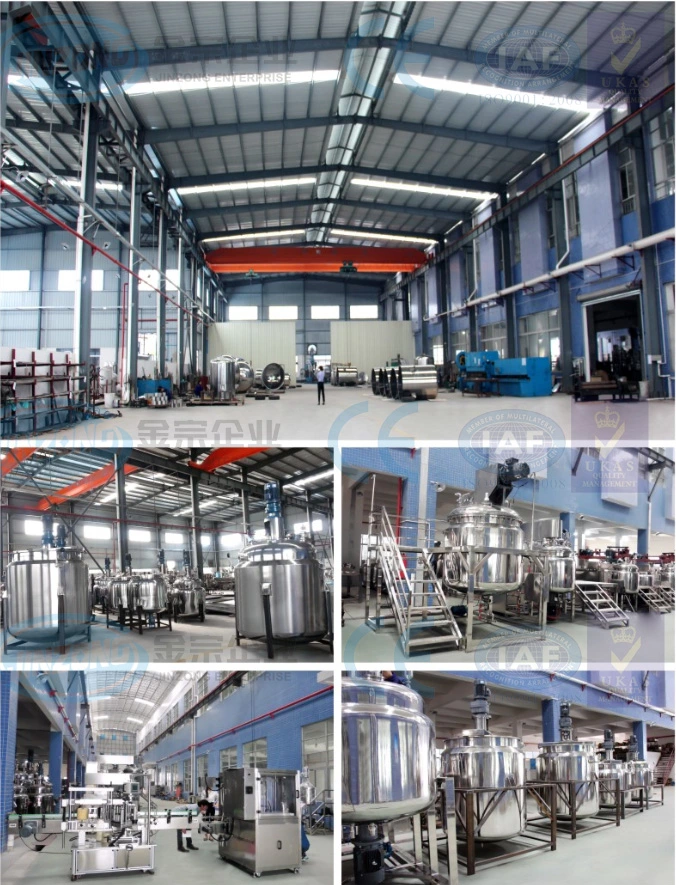

Welcome to china and Visit Our Factory !!
