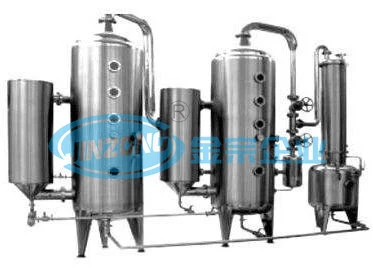

Malt Concentration Falling Film Evaporators Heat Sensitive Materials Concentrator

Malt Concentration Falling Film Evaporators Heat sensitive materials concentrator





*Low temperature distillation evaporation concentrator juice concentration machine:

Heat-sensitive materials concentration machine Multi-effect Falling Film Evaporator

Low temperature distillation evaporation concentrator juice concentration machine is widely used in pharmaceutical, food, chemical, light industry and other industries, water or organic solvent solution evaporation concentration, and can be widely used in the above industry waste liquid treatment. Especially suitable for heat-sensitive materials, the equipment operates continuously under vacuum and low temperature conditions, with high evaporation capacity, energy saving and consumption reduction, low operating costs, and can ensure the invariance of materials in the evaporation process. The equipment from single-effect to five-effect, production capacity from 1 ton to 10 tons, customers according to material characteristics and production modeling.

These evaporators are immensely demanded in dairy industry for concentrating milk and other liquid products such as fruit juice and glucose. Our quality controllers make sure that all the evaporators offered by us are stringently tested on well-defined parameters such as strength, performance and temperature withstanding capacity.

Features:

1. The liquid flow from top to bottom parts by pipe, the liquid can be distributed uniformly, and it flow from top parts to bottom parts by gravity and vacuum, it is heated by steam during running, then it will became into steam and liquid, the steam and liquid will be separated in the chamber, the steam will be cooled by condenser ( single effect ) or used for heating steam, at last the liquid will be discharged from the chamber. it will be sticky during evaporation, and you can get the concentrated liquid at the bottom , the falling film evaporator can evaporate the high density and viscosity(scope from 0.05-0.45ns/m2) material

2. The liquid flows like film in the single type evaporator, so the heat transfer coefficient is high

3. The liquid in the pipe flow very quickly, so it can not be metamorphosis easily, suitable for sensitive product.

4. The retention volume of liquid is small, the falling film evaporator can adopt fast operation, according to changes of energy supplying, vacuum degree, quantity of material feeding, density.

5. Due to fluid flows only under gravity, not pushed by temperature difference, the evaporation can be operated in the low temperature.

6. Falling film evaporator is suitable for foaming material, the liquid can be evaporated in the heating tube like film, forming separation of liquid and vapor. Meanwhile, at the bottom, most liquid will be pumped away, only leaving small part of liquid and the second steam to separating chamber for separation. The liquid doesn't make the big hit in the process, avoiding the formation of foam

All contact parts are manufactured from SS316L grade stainless steel sheets and are GMP compliant construction.
Heating chamber, condenser tubes and intermediate connecting pipes are all mirror polished, which ensures smooth flow of materials, no blockage, no coking and clogging phenomenon in heating chamber, reduces scaling and cleaning times, and improves production efficiency.

It is suitable for concentrating of liquid materials for traditional Chinese medicine, western medicine, starch, food, chemical industry and light industry.
The offered evaporators are also used for concentration of milk, malt and fruit juice.
