Low Temperature Distillation Evaporation Concentrator Juice Falling Film Evaporators

Low temperature distillation evaporation concentrator juice Falling Film Evaporators



Leveraging on our vast industry experience, we are capable of offering our clients with Milk Evaporator. These are used for storing & processing milk and find wide acceptance in dairy companies. Further, we are also engaged in providing installation and customized manufacturing of the products as per the size and capacity detailed by our clients.

These evaporators are immensely demanded in dairy industry for concentrating milk and other liquid products such as fruit juice and glucose. Our quality controllers make sure that all the evaporators offered by us are stringently tested on well-defined parameters such as strength, performance and temperature withstanding capacity.

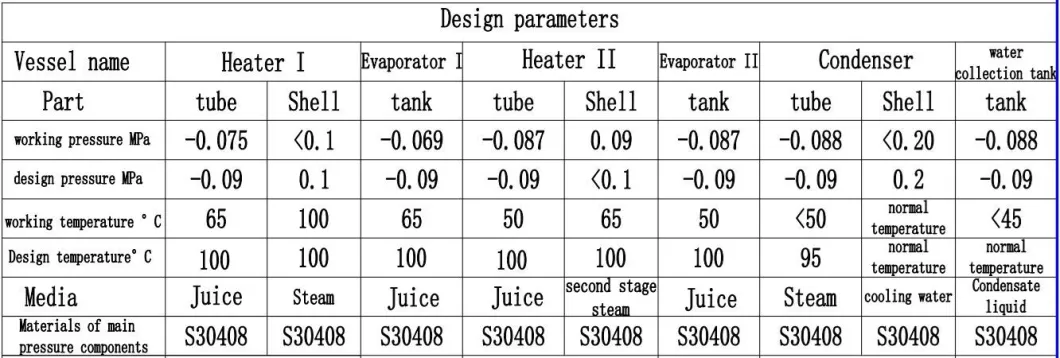

Production parameter:
1. Type number: JZSJN2-***
2. Evaporation capacity: customized
3. Steam pressure: <0.1MPa
4. Evaporation temperature: the first effect 80ºC, the second effect 60ºC.
5. vacuum degree: the first effect 0.05MPa, the second effect 0.08MPa.
6. concentration specific gravity: 1.2-1.25
7. heating area: customized
8. cooling area: customized
9. steam consumption: customized
10. size: customized

All contact parts are manufactured from SS316L grade stainless steel sheets and are GMP compliant construction.
Heating chamber, condenser tubes and intermediate connecting pipes are all mirror polished, which ensures smooth flow of materials, no blockage, no coking and clogging phenomenon in heating chamber, reduces scaling and cleaning times, and improves production efficiency.


It is suitable for concentrating of liquid materials for traditional Chinese medicine, western medicine, starch, food, chemical industry and light industry.
The offered evaporators are also used for concentration of milk, malt and fruit juice.
