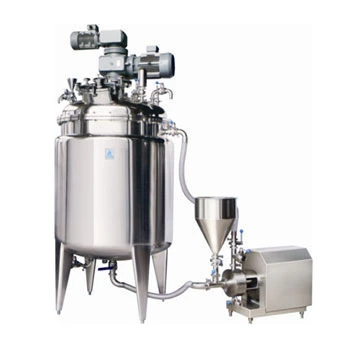

High Shearing Inline Homogenizer with Feeding Hopper Mixing Machine

High Shearing Inline Homogenizer with feeding hopper Mixing machine is supremely efficient and rapid in operation and are capable of reducing mixing times by up to 90%. The action of any Artisan In-Line mixer can be modified with the use of rapidly interchangeable workheads. This enables any machine to mix, emulsify, homogenize, solubilize, suspend, disperse and disintegrate solids with an efficiency, flexibility and sanitary construction unmatched by other machines.
The design offers further versatility with multistage rotor/ stator configurations as standard options, resulting in substantially faster mixing times by reducing the number of recirculation passes required, and offering greater particle size reduction.



Salient features
Complete process of dispersing, high shearing, emulsifying and homogenizing.
Suitable for making ointment, cream, shampoo, lotion, syrup and other emulsion of 2000 to 100000 cps viscosity
Flow rate by water from 0.5m3/h to 100m3/h

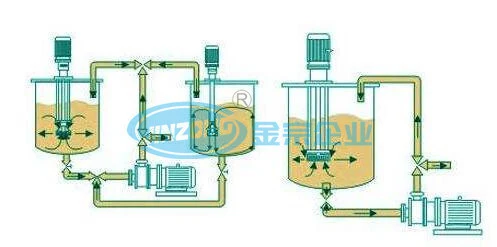

Suitable for continuous mixing process pipes to the mixing for even homogenization
Cooling system for the mechanical seal for long high shear mixing time.
All contact parts are made out of SS 316L/SS 316 and SS 304.
The specification of the inline continuous mixer complies with cGMP regulation.
