high-quality reaction tank manufacturers
| Trademark | JINZONG | Specification | SUS304, 316L |
| Origin | Guangdong | HS Code | 8419899090 |
Ointment Starch Binder Paste heating and mixing kettle
We are Manufactures Starch Paste Kettle designed for application in pharmaceutical processing units and mainly used For Preparation of Starch Paste.
Our huge range of Motorized Tilting Paste Kettle is manufactured with the use of latest equipment and sophisticated tools. These Paste Kettle are manufactured for mixing numerous sticky products at the controlled pressure or under a certain defined temperature. This is facilitated with mixing the stirrer, existing manually or automatically for the purpose of tilting the vessel in a manual or motorized manner. With the help of controller & pressure gauge, the display or control of the atmosphere of mixing can be done.
technical parameter:
Packing and delivery
The advanced and sophisticated infrastructure assists us in delivering products of utmost precision and superb quality. All the associated activities are undertaken by our skilled and experienced personnel and the products are quality tested in our adequately equipped testing lab. We also offer customized products as per the specifications of our clients in terms of sizes and capacities. Further, the finished products are dispatched within the stipulated time frame at the doorsteps of our clients.
We are Manufactures Starch Paste Kettle designed for application in pharmaceutical processing units and mainly used For Preparation of Starch Paste.
Product Description
The paste kettle is designed for preparing paste / starch / binder solution for making granules for tableting formulation and granulation. It has a universal application resulting in uniform melting. The kettle has a small cylindrical top shell with a spout for pouring out binder mass. It is provided with Anchor type beater for paste mixing with dual speed option.
Features:
Product Bowl with Jacketing and Insulation for heating.
Features:
Product Bowl with Jacketing and Insulation for heating.
cGMP Model
Steam Heated & Thermic oil electric heated facility also available
Tilting unit for unloading
Mixing stirrer with PLC control (Optional Features)
Digital temperature controller and digital timer (Optional features)
Steam Heated & Thermic oil electric heated facility also available
Tilting unit for unloading
Mixing stirrer with PLC control (Optional Features)
Digital temperature controller and digital timer (Optional features)
Our huge range of Motorized Tilting Paste Kettle is manufactured with the use of latest equipment and sophisticated tools. These Paste Kettle are manufactured for mixing numerous sticky products at the controlled pressure or under a certain defined temperature. This is facilitated with mixing the stirrer, existing manually or automatically for the purpose of tilting the vessel in a manual or motorized manner. With the help of controller & pressure gauge, the display or control of the atmosphere of mixing can be done.
technical parameter:
Model | G50 | G100 | G200 | G300 | G400 | G500 | G600 |
Effective volume (L) | 50 | 100 | 200 | 300 | 400 | 500 | 600 |
Pan design pressure (Mpa) | 0.09 | ||||||
Jacket design pressure (MPa) | 0.15-0.8 | ||||||
Maxium tiltable angle | 90° | ||||||
Motor power (kw) | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 1.5 | 2.2 |
Electric heating power (kw) | 6 | 12 | 18 | 18 | 24 | 36 | 42 |
Heating area (m2) | 0.46 | 0.58 | 1.13 | 1.43 | 1.75 | 2.00 | 2.30 |

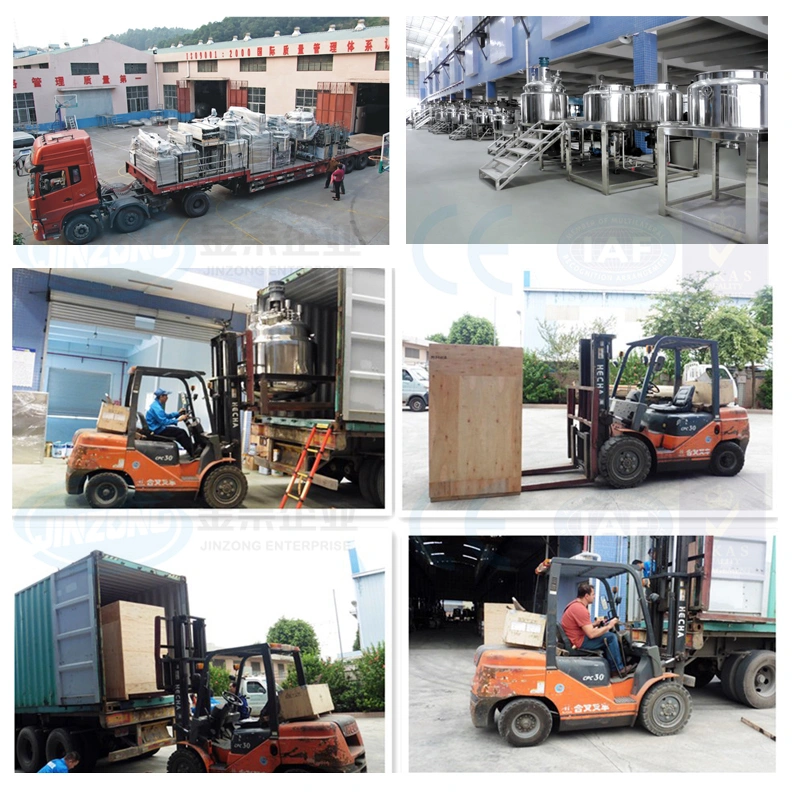

Packing and delivery
The advanced and sophisticated infrastructure assists us in delivering products of utmost precision and superb quality. All the associated activities are undertaken by our skilled and experienced personnel and the products are quality tested in our adequately equipped testing lab. We also offer customized products as per the specifications of our clients in terms of sizes and capacities. Further, the finished products are dispatched within the stipulated time frame at the doorsteps of our clients.
Tasks which are too heavy or too tedious for human muscles to do now can be done easily with this product. The product has an automatic data collection function.
By using this product, business owners will less likely to witness workplace accidents and workman’s compensation claims. The product has an automatic data collection function.
