Jinzong glass lined reactor structure

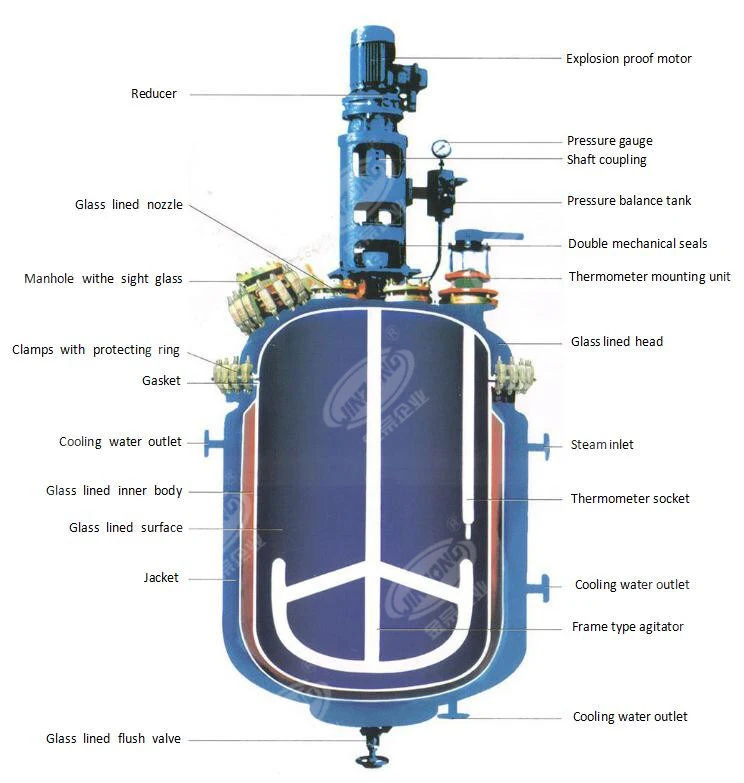

The reactor is mainly composed of tank body, insulation material and accessories. The tank body includes inner cylinder, outer cylinder, jacket and supporting foot, etc. Rock wool filling is used as insulation layer between inner cylinder and outer cylinder, jacket form is integrate jacket.
The accessories mainly include sanitary manhole, mirror, light, material and liquid inlet and outlet pipe, thermometer, pressure gauge, etc.

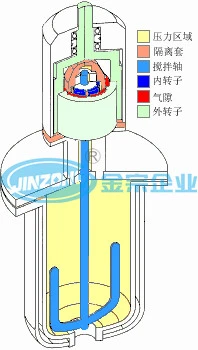

Mechanical stirring: The stirring motor is installed on the top of the tank, and the stirring shaft is composed of the upper half shaft and the lower half shaft, the upper half shaft and the tank body are sealed by filler and have good performance; the lower half shaft is connected with the upper half shaft through flange, and the paddle is welded on the lower stirring shaft, frame type paddle.

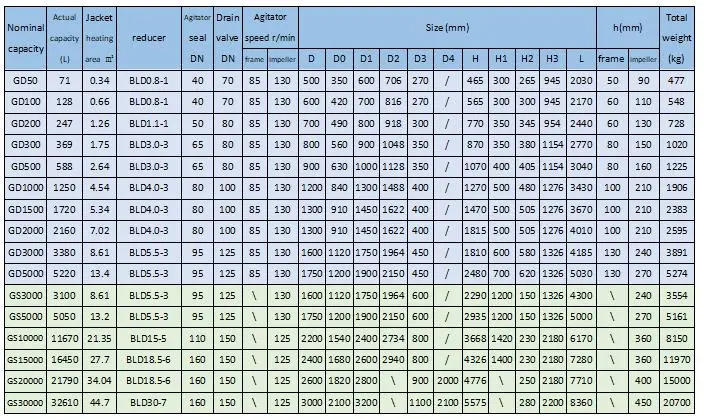

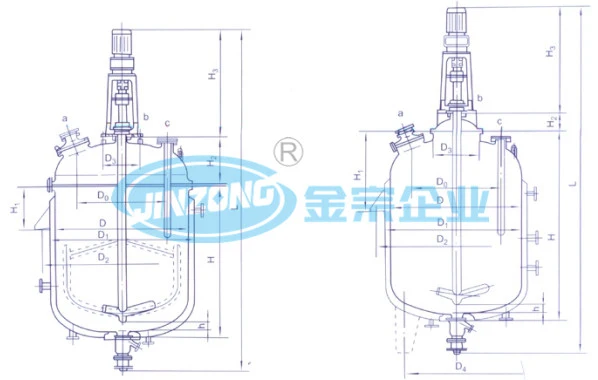

Jinzong glass lined reactor specification:
GD series GS series
