Home  > Food production equipment  >  Flavoring Agent Flavouring Seasoning Mixing Machine

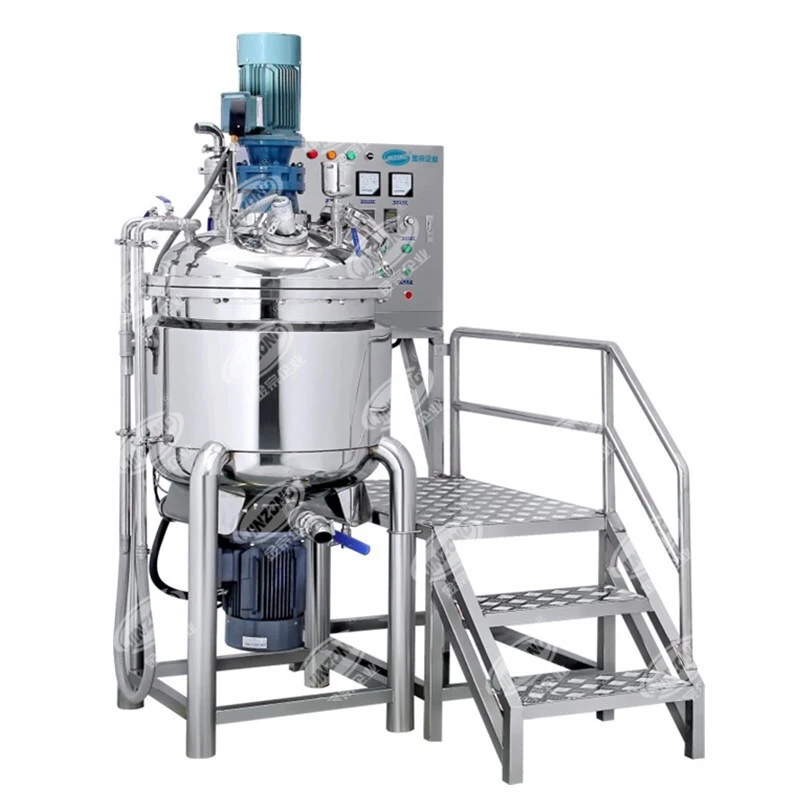

Flavoring Agent Flavouring Seasoning Mixing Machine

Flavoring Agent Flavouring Seasoning Mixing Machine

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
TrademarkJINZONGTransport PackageWooden Case
SpecificationSUS304, 316LOriginGuangdong
HS Code8419899090
Flavoring agent flavouring Seasoning mixing machine

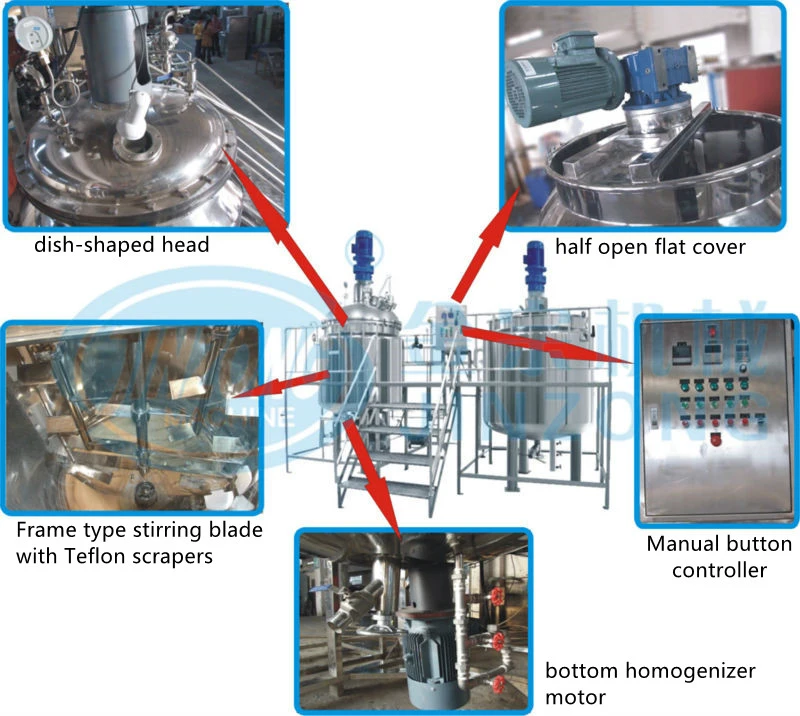

This machine is composed of kettle, blender, homogenizer etc.
Contact parts material- stainless steel SUS316L, SUS316, SUS304L or SUS304, Non contact parts SUS304, which has perfect corrosion proof performance, and is highly endurable according to GMP requirements.

Features:
fixed tank or Tiltable tank, jacketed, stainless steel, insulated vessel;
Full size cover, automatic;
Mixing arm with scraper;
Direct steam nozzles;
Discharge valve (cooking water, liquid products);
Steam conditioning unit; high thermal efficiency, uniform heating,
Easy to control heating temperature
Short time for liquid material boiling
Beautiful appearance and easy operation
Safety and reliable

Flavoring Agent Flavouring Seasoning Mixing Machine



Working capacity from 10L to 5000L;
Suitable for mayonnaise, salad dressing,ointment, cream, Flavoring agent,Seasoning and emulsions of 10,000~50,000cps viscosity;
Internal emulsifying and homogenizing by top mounted batch homogenizer or bottom homogenizer;
All vessels are manufactured from S.S. 316 grade stainless steel sheets and are cGMP compliant construction.
The vessels are Jacketed, insulated, cladded and with suitable agitator assembly in each vessel.

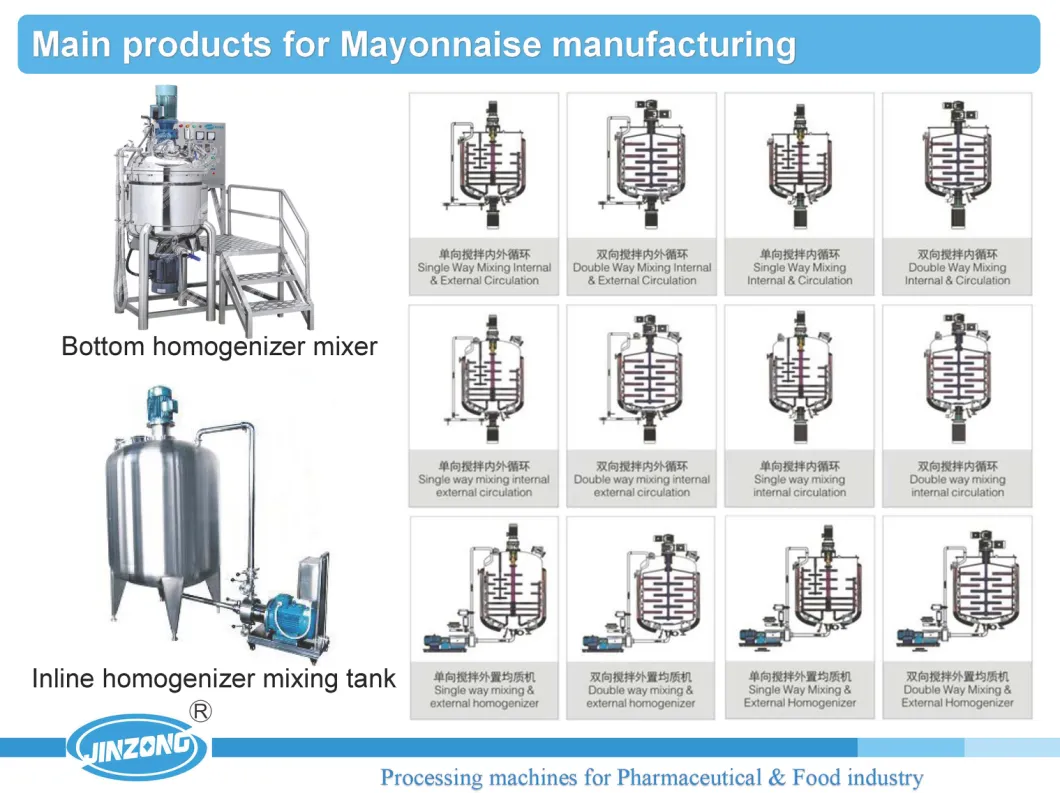

JR series Vacuum emulsifying mixing machine
ModelVolume of Main Tank (L)Volume of Dissolving tank(L) Dimension(mm)total power(kw)weitht(kg)
10013070/1002600*2500*23005.51200
200260120/1902800*3000*26507.71600
300375150/2602900*3000*275010.51900
500620300/4603300*3550*3050152500
10001250620/9004100*3900*350020.54000
200026001200/15004500*5200*4000266000
300038001500/24004800*5700*4200339000
500065002500/36005100*6400*480037

10000125005000/7000

52


Options
Fixed cover with bolts or welding to save budget;
Frame type slow agitator for oil pre-mixer;
Mettler-Toledo load cells;
Siemens PLC for automation of mixing, dispersing, emulsifying, homogenizing, vacuum, transferring, heating and cooling etc;
Flow meter automation for feeding liquid oil and water;
Pressure vessel design for different steam pressure;
SIP is available upon request;
Different power supply acceptable;

Our mixer machine with wide range of food products designed as per demand our customer , Many our mixer for  pickles, chutneys, ready to eat items, paste and sauces, frozen foods and spices , Garlic Chutney, Mint Chutney and Tamarind Chutney; Sweet Mango Chutney, Mango Ginger Chutney and Hot Mango Chutney , Mayonnaise Production Line/ machines and equipment.

Our Mixer and plant with vacuum emulsifying homogenizer mixer/ manufacturing plant and machine , Our production plant is use made with homogenizing mixer, Stainless Steel oil phase mixer, water phase mixer with vacuum system, hydraulic lifting line, Pump with materials circulation system, Product tank with heating and cooling system, temperature control system and electrical control panel etc.Flavoring Agent Flavouring Seasoning Mixing Machine
Application
 Widely used in mayonnaise, salad dressing, baby puree, Flavoring agent flavouring Seasoning mixing processing.

Company profile:
Flavoring Agent Flavouring Seasoning Mixing Machine

Flavoring Agent Flavouring Seasoning Mixing Machine

The product increasingly becomes practical and applicable in the industry. The product is extremely resistant to corrosion. The popularity this product contributes to two factors which include high cost performance and wide market application. The product is extremely resistant to corrosion.
