5000 Tons Annual Output Latex Paint Production Line

5000 Tons Annual Output Latex Paint Production Line

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Layout TypeVerticleMixing Drum ShapeConical
Additional CapabilitiesMillingOperating typeContinuous Operating
ConditionNewFunctionVacuum, Dispersing, Cooling
NameCoatings & Paint Production LineTrademarkJinzong
Transport PackageWooden CaseSpecificationCustomer design
OriginGuangzhouHS Code8479820090
5000 Tons Annual Output Latex Paint Production Line
The Paint Production equipment range from 500 tons per year capacity to 100,000 tons per year capacity. We can provide different paint production plant for oil based&water-based paint, water dilutable coating, water dispersible( latex paint), water soluble aklyd resin, water soluble expoxy resin, inorganic polymer water-based resin etc.... Water-based paint complete line consist of  a couple of systems in below table:

SystemEquipment ItemsRemarks
Control System
Electrical control system

Subassembly






Materials Feeding System

Powder feeding tank

304 Stainless steel, inside and outside mirror polished

Liquid feeding tank

304 Stainless steel, inside and outside mirror polished

Latex feeding tank

304 Stainless steel, inside and outside mirror polished

Vacuum buffer tank

304 Stainless steel, inside and outside mirror polished

Additive feeding tank

304 Stainless steel, inside and outside mirror polished

Vacuum pump

Water vane type


Grinding System for Paste Making

Dispersing vessel

304 Stainless steel with top and down dished end, inside and outside mirror polished

Horizontal sand mill

Macromolecule grinding disc

Tinting System

Basket mill

Inverter control(0-1440),with sealing device

Multifunction mixing vessel

With top and down dished end, inside and outside mirror polished, sealing device

High speed disperser

Inverter control(0-1440 rpm) with sealing device

Discharging and Filtration System

Pneumatic diaphragm pump

DN40

Bag type filter

304 Stainless steel

Operation Platform

Operation platform

Size:5x3x1.8M , stainless steel

Pipeline System

Pipeline accessories

Include all valves, quick joints, stainless steel pipeline and cables

Filling System

Filling System

Semi-auto filling machine

Full automatic Coatings Paint Production Plant Features
Good Fineness and High Stability
Environmentally-Friendy and Safe Operation
Wind Range of Products and Easy to Change and Clean

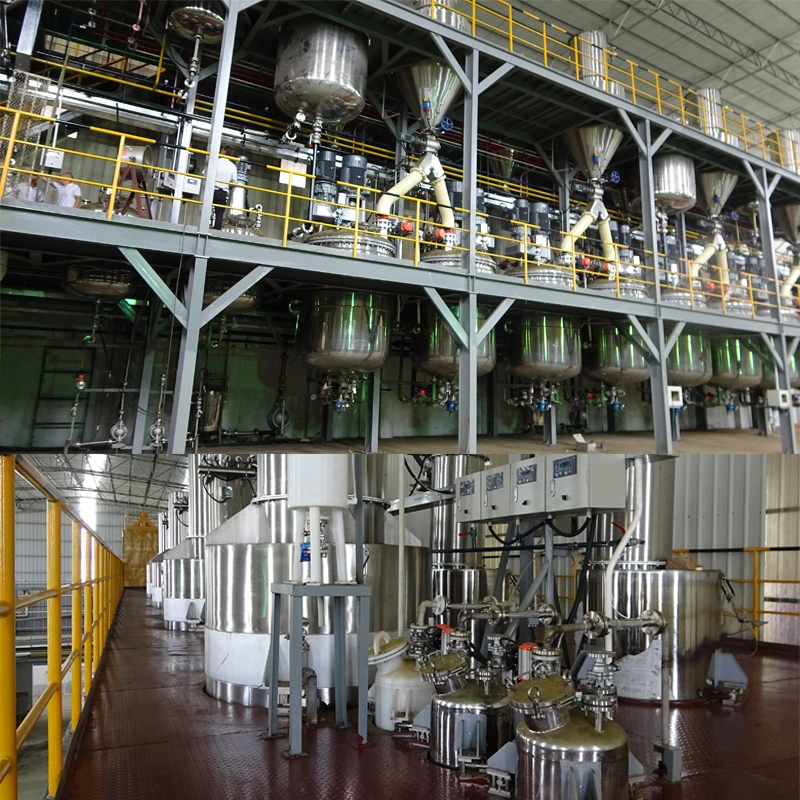

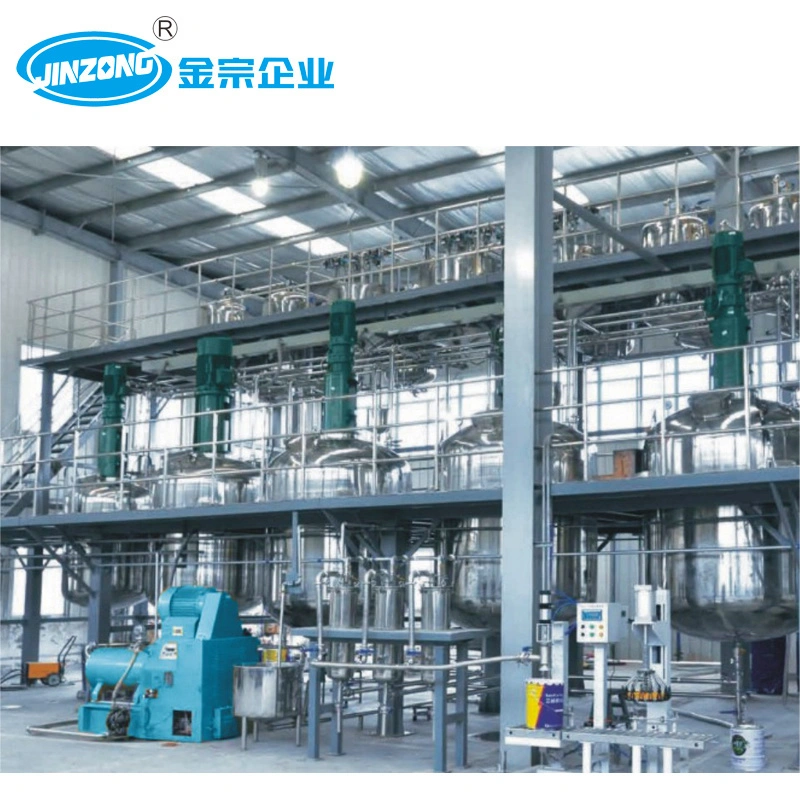

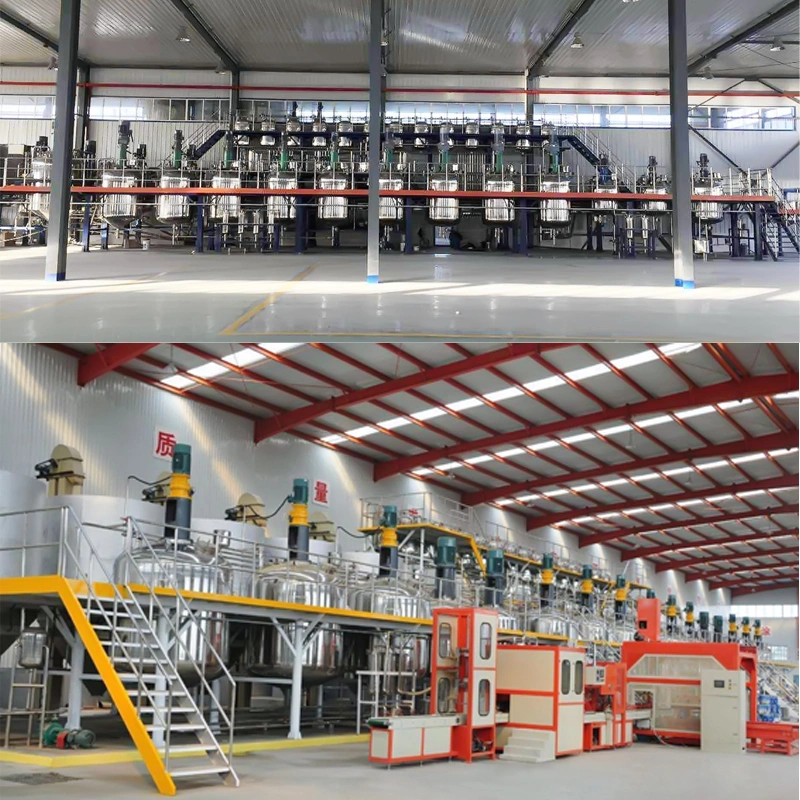

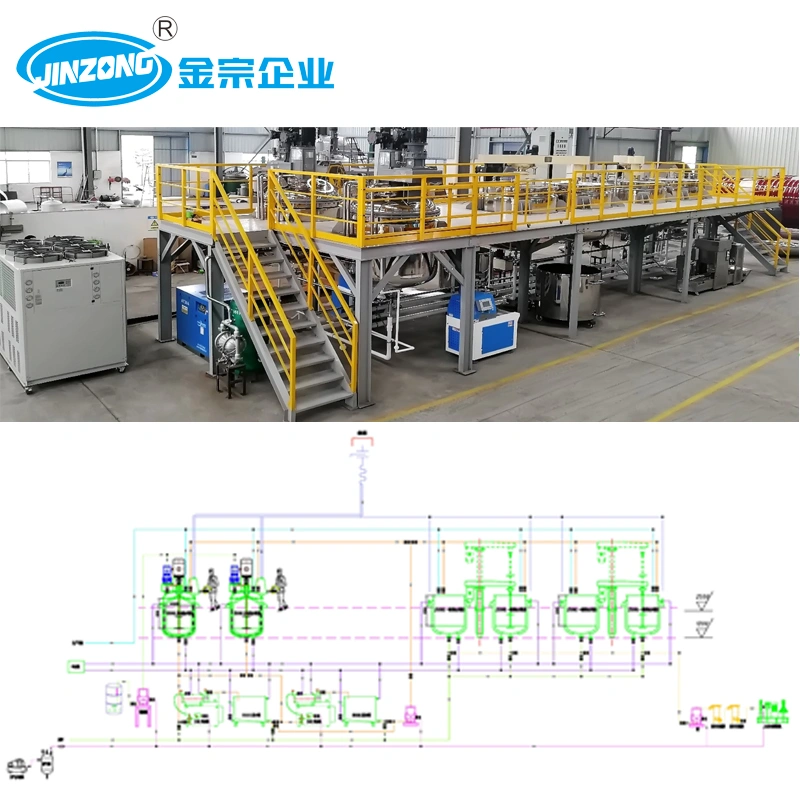

Full automatic Coatings Paint Production Plant Project
5000 Tons Annual Output Latex Paint Production Line

5000 Tons Annual Output Latex Paint Production Line
5000 Tons Annual Output Latex Paint Production Line
5000 Tons Annual Output Latex Paint Production Line


5. Packaging & Shipping

Packaging
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall

6.Our Services

 -Engineers avaiable to service machinery  overseas

- Technological support

- Guarantee: 1 year

- Custom-make is ok for us

6.1. Pre-sale service

Act as good adviser and assisant of clients enable them to get rich and generous returns on their investments.

a. Select equipment model

b. Design and manufacturer products according to client's special requirements.

c. Train technical persnonal for clients

6.2. Service during the sale

a. Pre-check and accept products adhead of delivers

b. Send photos of machines every week and send testing video

c. Help clients to draft solving plans

6.3. After-sales services

Provide considerate services to minimize client's worries

a. Assist client to prepare for the first project.

b. Install and debug the equipment

c. Train initiative to eliminate the trouble rapidly

d. Provide technical replacement

e. After-sales team will solve problems via operating and provide technical instruction

6.4. Warranty

The warranty is 12 months

Within 12 months after equipment sold, we will provide you with parts for the damaged parts(except the demages caused by wrong operation)free of charge

We will deliver t he necessary parts via express by air or sea free of charge wihthin 12 months.


7.Company Information:
We are a professional manufacturer of  cosmetic,chemical& pharmaceutical machinery and equipment more than 20 years .Product lines range from:

1> Chemical Machinery:  reactors, resins production line, high speed disperser, storage tank, sand mill, three rollers mill, filter, filling macihne, paint&coating production line,paint testing machines, etc.
2> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
3> Pharmaceutical  Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.

5000 Tons Annual Output Latex Paint Production Line


5000 Tons Annual Output Latex Paint Production Line
5000 Tons Annual Output Latex Paint Production Line
5000 Tons Annual Output Latex Paint Production Line





By improving the customer service, our mechanical equipment has been more and more popular. The product can be used in harsh industrial environments. With unique design, top quality and excellent service, Guangdong Jinzong Machinery Co., Ltd. wins more and more reputation. The product can be used in harsh industrial environments.
