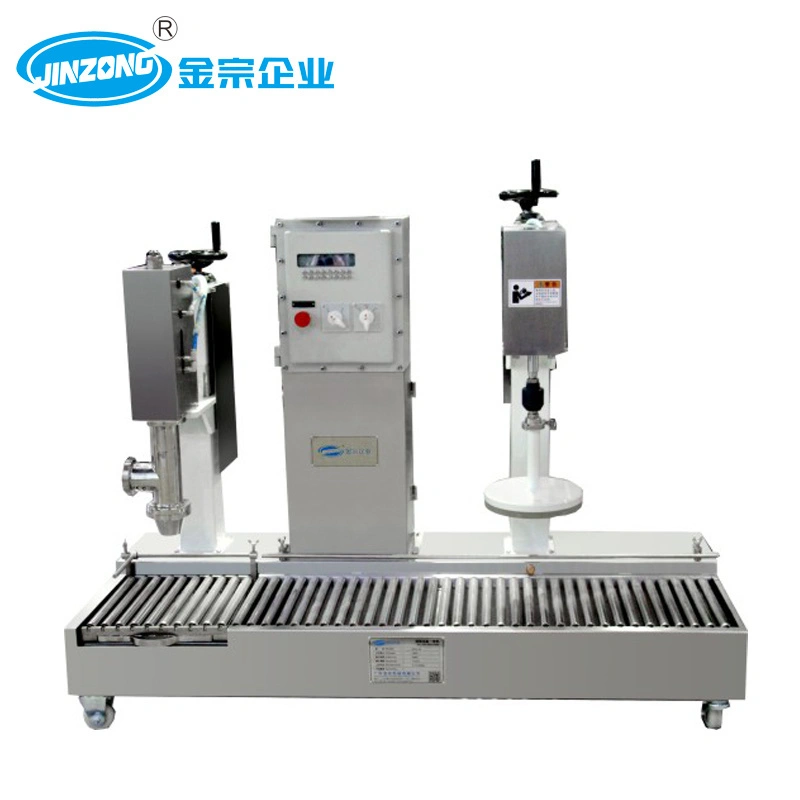

Water Based Paint Weight Filling Capping Machine

Water Based Paint Weight Filling Capping Machine

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Filling PrincipleWeightingPackaging Container Lifting StructureChute Lifting
StructureLinearPackagingBarrel
Packaging MaterialMetalFunctionWeighting,Filling,Capping
Filling Scope5-30kgSpeed6-15buckets/Min
Filling Precision5-10gTrademarkJinzong
Transport PackageWooden CaseSpecificationstandard type
OriginChina
Semi-auto Water Based Paint weighting filling capping machine
Water Based Paint Weight Filling Capping Machine
Weighting filling capping machine Product Description:
This filling machine is application for various coatings, inks, automotive paint, furniture paint, adhensives (glue), resin, chemical solvents, curing agents, lubricants, shoes glue, spray glue, and all kinds of liquids which can flow.

Weighting filling capping machine Working Principle
Automatic control instrument received weight signal of weight signal from the weighing sensor, control the quick or slow speed of feeding device, to achieve the purpose of automatic filling; With a semi-automatic roller conveyor and lid-pressing/clamping device to complete the filling and sealing process.

Weighting filling capping machine Feature:

1.The filling head and capping  height can be adjustable, connected by quick clamp, conveying material through pump or high tank.
2.Put barrel and cover by manual, automatic filling and capping.
3.Weight display adopts 32-bit dual-core CPU controller
4.Weight can be set by enter the number
5.Weighing value can be display in a time
6.Can be set and store ten kinds filling weight
7.GW/NW two filling modes
8.Automatic clear to zero after start-up and there is power-off protection device.
9.Two filling speed-fast and slow

Weighting filling capping machine Techinical Information:
VoltageAC220+_10% 50HZ
Dimension1650×670×1400mm
Filling head:Single
Filling volume:1l-20l
Apply barrel high:Dia.300x350mm(height)
Filling speed:6-15 barrels/ min
Filling Precision:5-10g
Air source:>0.5 mpa
Application for:putty past ,Paint, adhesive, pigment, water, sauce, etc.
Application industry:Chemical, daily chemical, etc.

Our Service:
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to  abroad  installation and debugging.
Company Infromation:

We are a professional manufacturer of  cosmetic,chemical& pharmaceutical machinery and equipment more than 20 years .Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
2> Chemical Machinery:  reactor, mixing equipment,separation equipment, storage tank, high-speed disperser,grinding machine, filling machine,etc.
3> Pharmaceutical  Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
Water Based Paint Weight Filling Capping Machine
Water Based Paint Weight Filling Capping Machine
Water Based Paint Weight Filling Capping Machine
Water Based Paint Weight Filling Capping Machine


Things will never happen that mechanical equipment gets damaged during transportation because of our packing. The product is easy to install, which greatly save human resources. Guangdong Jinzong Machinery Co., Ltd. has been verified by world-leading inspection company. The product is easy to install, which greatly save human resources.
