Product Description

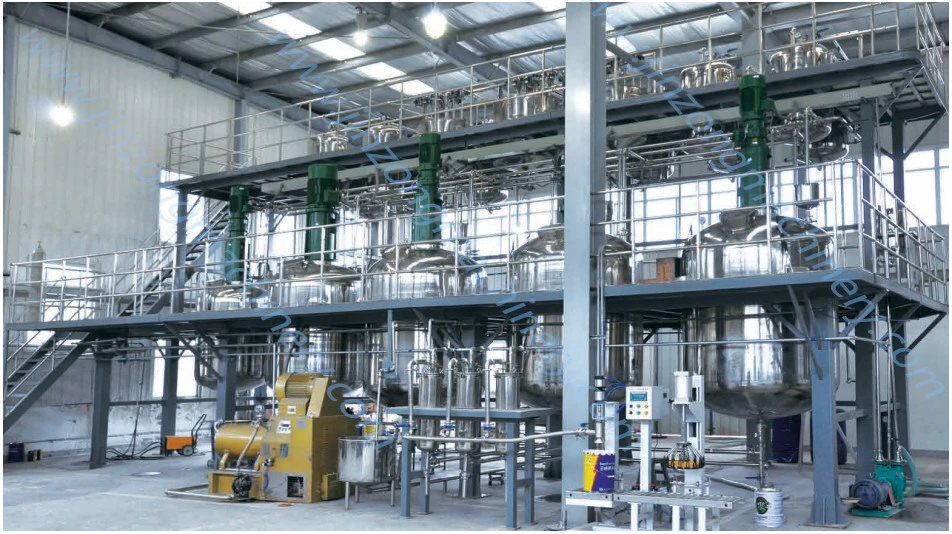

Complete Paint Production Line

Structure of Paint Production Line:
The production line inculding control system, material feeding system, grinding system, tinting system, discharging and filtration system, operation platform, pipeline system and filling system.

System	Equipment Items	Remarks
Control System	Electrical control system	Subassembly
Materials Feeding System	Powder feeding tank	304 Stainless steel, inside and outside mirror polished
	Liquid feeding tank	304 Stainless steel, inside and outside mirror polished
	Latex feeding tank	304 Stainless steel, inside and outside mirror polished
	Vacuum buffer tank	304 Stainless steel, inside and outside mirror polished
	Additive feeding tank	304 Stainless steel, inside and outside mirror polished
	Vacuum pump	Water vane type
Grinding System for Paste Making	Dispersing vessel	304 Stainless steel with top and down dished end, inside and outside mirror polished
Grinding System for Paste Making	Horizontal sand mill	Macromolecule grinding disc
Tinting System	Basket mill	Inverter control(0-1440),with sealing device
	Multifunction mixing vessel	With top and down dished end, inside and outside mirror polished, sealing device
	High speed disperser	Inverter control(0-1440 rpm) with sealing device
Discharging and Filtration System	Pneumatic diaphragm pump	DN40
	Bag type filter	304 Stainless steel
Operation Platform	Operation platform	Size:5x3x1.8M , stainless steel
Pipeline System	Pipeline accessories	Include all valves, quick joints, stainless steel pipeline and cables
Filling System	Filling System	Semi-auto filling machine

Feature of Paint Production Line:
The whole complete production line consists of raw materials feeding system, dispersing system (paste production), grinding system, tinting system, discharging and filtration system, filling system, control system, working platform.
From materials feeding to finished products filling, every unit is automatically controlled. Pipeline production process is with high efficiency. High efficiency dispersion and superfine wet grinding guarantee good fineness and stable product with good quality.
Automatic measurement for materials weighing and flowing to guarantee high precision, good stability. It measures materials feeding and paint tinting process accurately and display it on the host computer to avoid error caused by operator during operation to improve the product quality.

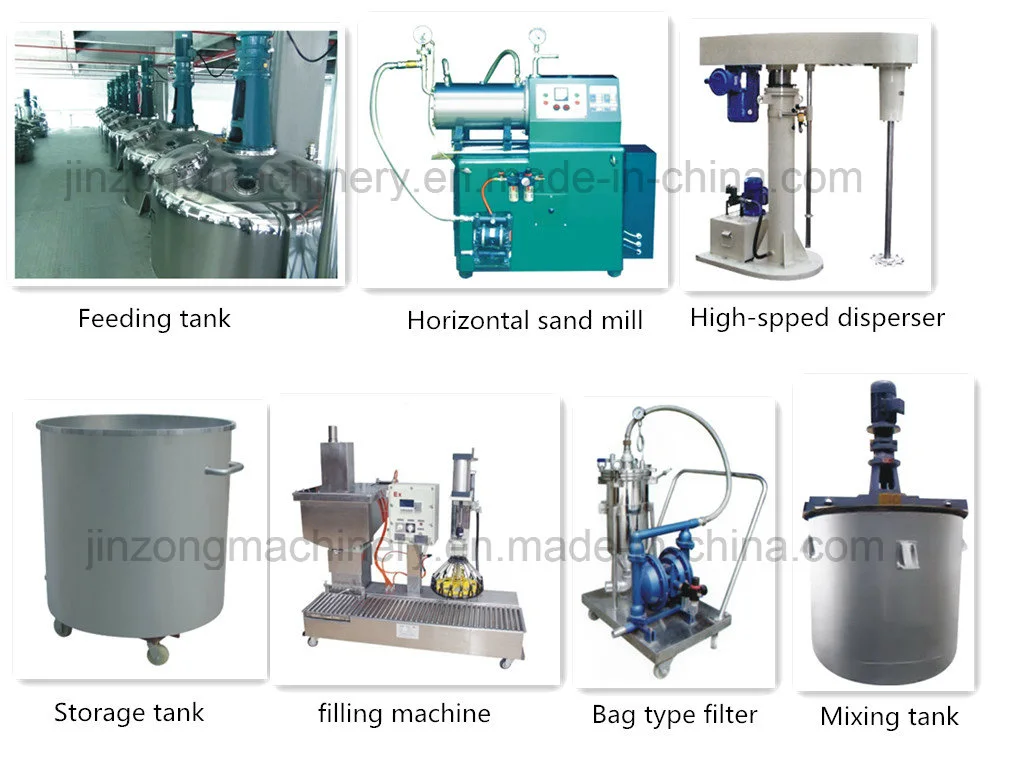

Related equipment:
Turnkey Project Complete Paint Production Line

Turnkey Project Complete Paint Production Line

***Packaging & Shipping
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
FOB port: Guangzhou or Shenzhen
Turnkey Project Complete Paint Production Line

***Our Services
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig

After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.

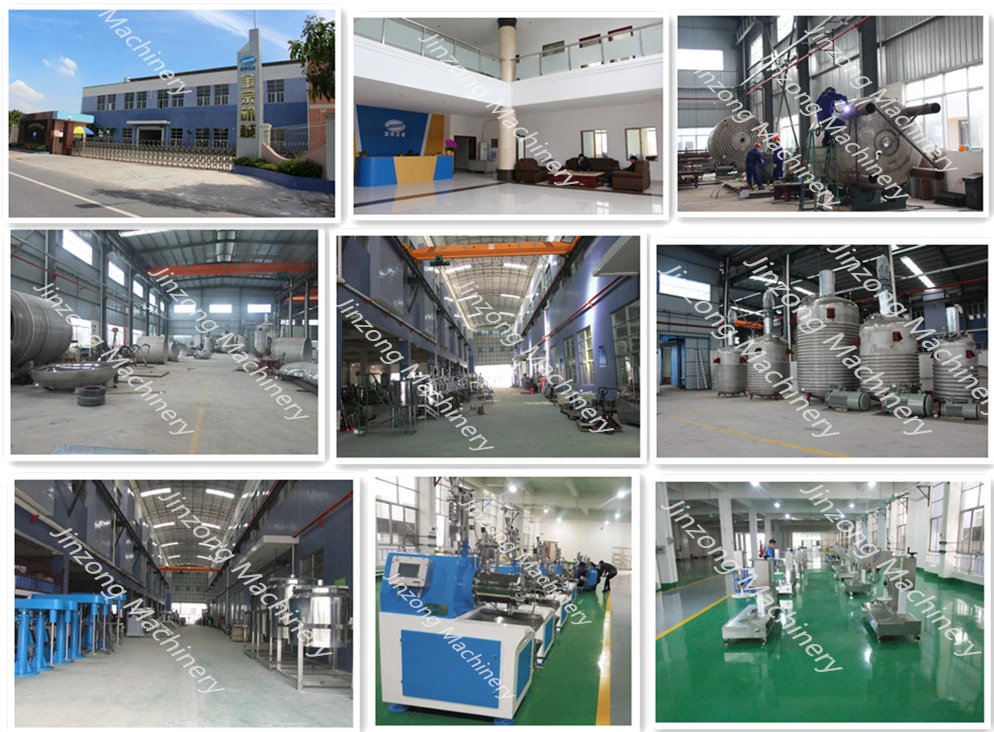

***Company Information
We are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 17 years .Product lines range from:
Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment, separation equipment, storage tank, disperser, mill etc.
3> Biological and Pharmaceutical Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
Turnkey Project Complete Paint Production Line

Our Certificates

***Why Choose Jinzong Machiney?

1. More than 17 years in Cosmetic and cheimical industry
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Good reputation in industry.
4.Have a Professional after-sales service engineering team
5.Large scale and strong strength

By using this product, manufacturers can significantly increase productivity. This means that their engineering projects can be completed in a short time. The product can withstand high-temperature working. By using this product, business owners can significantly improve production efficiency. This means their projects can be finished at a fast and smooth manner. The product can withstand high-temperature working.
