Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers
Tilting Vacuum Homogenizing Emulsifying Mixer
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model NO. | JZ-JRK | Customized | Customized |
| Condition | New | Warranty | 1 Year |
| After-sales Service | One Year Warranty, Lifelong Maintenance | Stainless Steel | 316L |
| Trademark | Jinzong Machinery | Transport Package | Plywood Case |
| Specification | Depends on Capactiy | Origin | Guangdong, China (Mainland) |
| HS Code | 847490000 |

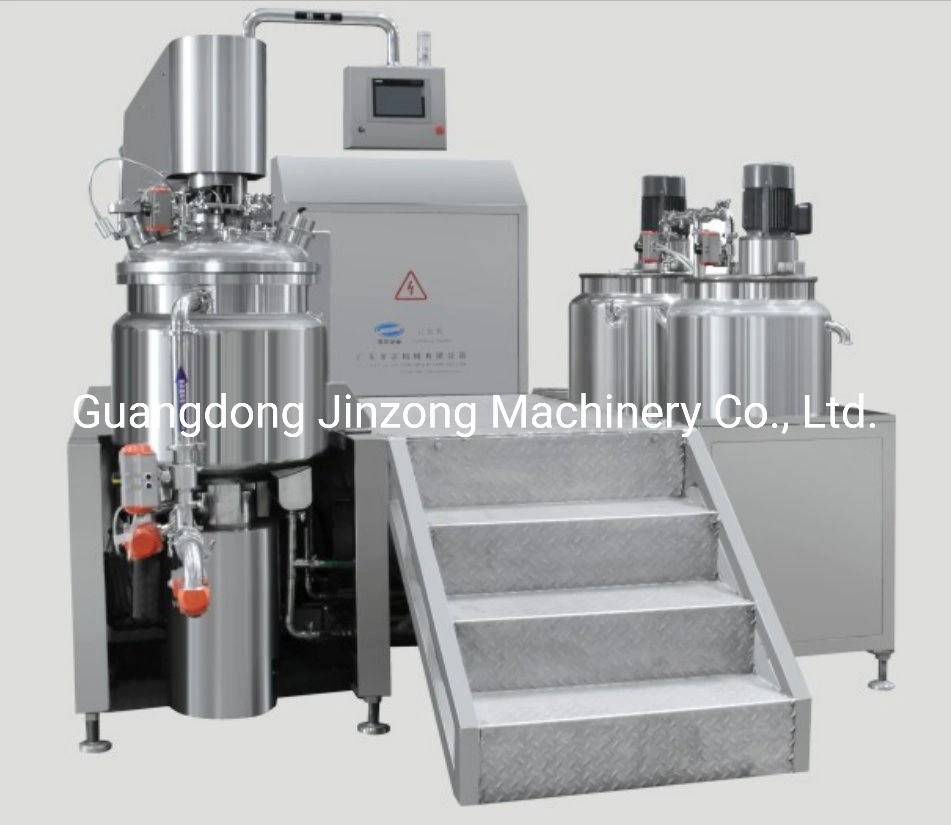

Tilting Vacuum Homogenizing Emulsifying Mixer
Tilting Vacuum Homogenizing Emulsifying Mixer- Full-automatic Type
Tilting Vacuum Homogenizing Emulsifying Mixer - Manual Type
Vaccum feeding and emulsification homogenization systems are used in the pharmaceutical and cosmetic industries-from ointment, creams, gels, syrups, oils, and emulsions, to various beauty products and hair care products. In the field of medicine, this emulsifying machine also meets the production requirements of intravenous, pulmonary, oral and transdermal drugs.
Flow Chat of Vacuum Emulsifying Mixer
1. 50-1000L
2. Cosmetic cream, gel and lotion making machine
3.GMP, FDA
JRK series Cosmetic Vacuum Homogenizing Emulsifying Machine
Cosmetic Machine JRK series Vacuum Homogenizing Emulsifying machine is developed on the basis of JR fixed emulsifying machine and can be lifted the cover and pour the boiler to discharge, easy to wash.
Features:
1.High efficient emulsifier: it is a high efficient German compound homogeneous emulsifier with six-layer shear teeth of special structure, shearing more times, transient partial pressure up to 100Mpa above .its emulsification effect for materials which goes through the emulsifier is dozens of times than that of common ones.
2.Precision motion mechanism and cooling system: high efficiency, power loss is small, heterogeneous devices can work long time, the application of special process requirements
3.Dead space-free multi-functional flow disturbance stirring system: it may effectively improve the stirring rate and mixing effects;
4.Production of non-dead, out of less material residue: the JRKA homogeneous emulsifier type on the same machine, than the other types of emulsion is better;
5.The cover of the main boiler can lift : to ensure that maintenance and cleaning easy;
6.All lifting system uses hydraulic mechanism to ensure the smooth movement, accurate, and security;
7.Manual control, operation and easy maintenance.
Main boiler has the vacuum pressure of -0.08Mpa, the speed of rake stirrer is 7~60rpm with frequency control. The bottom homogenizer's revolution speed has 1400 and 2800 rpm two gears. It proves to be the perfect device for manufacturing medium&high-grade ointment and honey products.
Model Type:
Tilting Vacuum Homogenizing Emulsifying Mixer- Full-automatic TypeTilting Vacuum Homogenizing Emulsifying Mixer - Manual Type
Vaccum feeding and emulsification homogenization systems are used in the pharmaceutical and cosmetic industries-from ointment, creams, gels, syrups, oils, and emulsions, to various beauty products and hair care products. In the field of medicine, this emulsifying machine also meets the production requirements of intravenous, pulmonary, oral and transdermal drugs.
Flow Chat of Vacuum Emulsifying Mixer
1. 50-1000L
2. Cosmetic cream, gel and lotion making machine
3.GMP, FDA
JRK series Cosmetic Vacuum Homogenizing Emulsifying Machine
Cosmetic Machine JRK series Vacuum Homogenizing Emulsifying machine is developed on the basis of JR fixed emulsifying machine and can be lifted the cover and pour the boiler to discharge, easy to wash.
Features:
1.High efficient emulsifier: it is a high efficient German compound homogeneous emulsifier with six-layer shear teeth of special structure, shearing more times, transient partial pressure up to 100Mpa above .its emulsification effect for materials which goes through the emulsifier is dozens of times than that of common ones.
2.Precision motion mechanism and cooling system: high efficiency, power loss is small, heterogeneous devices can work long time, the application of special process requirements
3.Dead space-free multi-functional flow disturbance stirring system: it may effectively improve the stirring rate and mixing effects;
4.Production of non-dead, out of less material residue: the JRKA homogeneous emulsifier type on the same machine, than the other types of emulsion is better;
5.The cover of the main boiler can lift : to ensure that maintenance and cleaning easy;
6.All lifting system uses hydraulic mechanism to ensure the smooth movement, accurate, and security;
7.Manual control, operation and easy maintenance.
Main boiler has the vacuum pressure of -0.08Mpa, the speed of rake stirrer is 7~60rpm with frequency control. The bottom homogenizer's revolution speed has 1400 and 2800 rpm two gears. It proves to be the perfect device for manufacturing medium&high-grade ointment and honey products.
Model Type:
Model# | Volume of Main Boiler (L) | Volume of Pretreament Boilers (L) | Dimensions (LxWxH) | Total Power (KW) | Net Weight (KG) |
| 50 | 75 | 45/65 | 2700x2300x1950-2650 | 9 | 1600 |
| 100 | 130 | 70/100 | 2900x2700x2050-2800 | 10 | 1800 |
| 200 | 260 | 120/190 | 3200x2900x2350-3300 | 13 | 2200 |
| 300 | 375 | 150/260 | 3350x3000x2550-3650 | 17 | 2500 |
| 500 | 620 | 300/460 | 3800x3400x2800-4050 | 25 | 3300 |
| 1000 | 1250 | 620/900 | 4150x4150x3700-5200 | 32 | 5000 |
The product offers significant economic benefits and is now increasingly popular in the market. It is resistant to breakage with its sturdy frame.
This product has very good characteristics and is widely used in the market. It is resistant to breakage with its sturdy frame.
