Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers

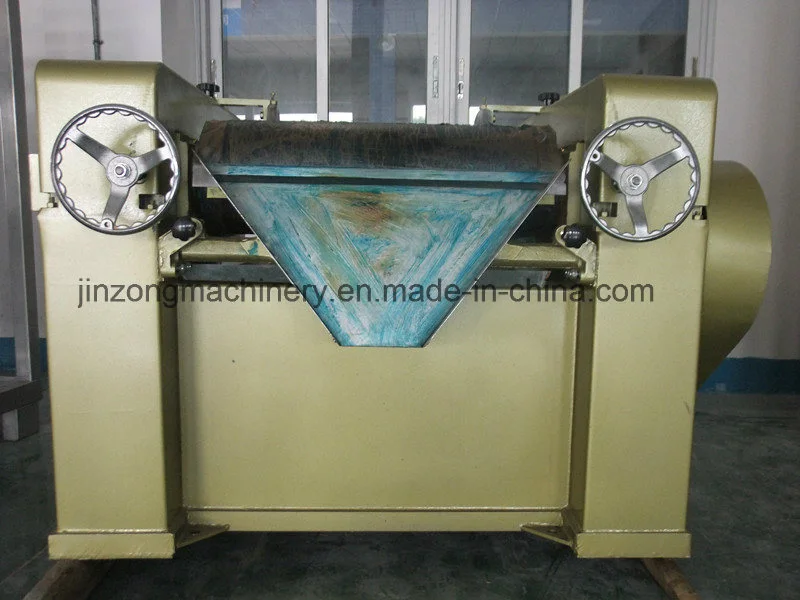

Three Roller Mill & Grinding Mill for Paste, Paints, Ink Grinding
| Model NO. | S | Working Style | Three-roll |
| Disc Diameter | 150mm | Variable Speed | Without Variable Speed |
| Machine Type | Mill | Warranty | 1 Year |
| Voltage | 380V/220V, 50/60Hz, 3phase | Working | Diffusion Mixer |
| Stirring Type | Forced | Certification | Ce, CCC, ISO |
| Mixing Drum Shape | Disc | Additional Capabilities | Milling |
| Operating Type | Continuous Operating | Condition | New |
| Trademark | Jinzong Machinery | Transport Package | High Quality Plywood Cases of Export Standards |
| Specification | S65, S150, S260, S405 SM405 | Origin | Guangdong, China(Mainland), |
| HS Code | 8419899090 |
It is mainly used for paint, ink, plastic, paint, food and other paste materials, especially suitable for grinding high viscosity and particle size of fine products. Roll is made of chilled alloy cast iron centrifugal casting, so the crystal phase is closely, high strength, the surface has high hardness and wear resistance, and is provided with a cooling system.
The machine by rotating the handwheel adjustment of the horizontal direction of the three roller between the gap and the roller surface of jiga and different speed friction to grind dispersing effect.
Specification of three roller mill
| Model | S65 | S150 | S260 | S405 | SM405 | |
| Roller dia.(mm) | 65 | 150 | 260 | 405 | 405 | |
| Working length(mm) | 125 | 300 | 675 | 810 | 810 | |
| Speed | Slow(r/min) | 26 | 26 | 19.1 | 12.2 | 14.25 |
| Middle(r/min) | 70 | 70 | 54.5 | 37.6 | 44 | |
| Fast(r/min) | 145 | 145 | 155.3 | 116 | 135.5 | |
| Motor(kw) | 0.55 | 2.2 | 7.5 | 15 | 15 | |
| Size(mm) | 410×550×450 | 1010×930×1000 | 1645×1350×1100 | 2100×1950×1350 | 2290×1950×1350 | |
| Weight(kg) | 85 | 550 | 2200 | 5000 | 5200 | |
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
FOB port: Guangzhou or Shenzhen
Our Services:
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
company information:
We are professional Manufacture of:
- All kinds of reactor for resins( water& solvent ),glue,adhesive
- Resins&glue,adhesive complete production line
- Paint&coating production line( water& solvent )
- Ink production line
- Reactor, Mixing tank, High speed disperser, three rollers mill, sand mill, storage tank, filter, filling machine etc.
- Packaging&Filling machines
- Lab & testing machines
- Auxiliary equipment
We have 5 workshopes cover an area of 17,000 square meters..,We are exporting to more than 25 Countries worldwide.
Why us?
1. Experienced workforce: more than 17 years
2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Strict quality controls
4. Good reputation in industry.
5. Customized packaging
6. Simple ordering process
7. Easy payment modes
8. Prompt delivery
9. Have a Professional after-sales service engineering team
Our Cutomers:
Over years, we have been serving American WILLOWTEX,Poland ANSER,Egypt ENDMOUN,Indian SWASTIK POLYMERS, Guangzhou Petrochemical Company, AKZONOBEL, Germany Henkell, Guangzhou Rubber, Daxing Hot Melt Glue, Bostik Findley, Forbo Bonding, Guangzhou Xiupo, China Paint and other more than thousand small and medium-sized enterprises, winning wide recognition and support from customers.
Tel: +86-758-3623881
E-mail: sales@jinzong.com.cn
Fax: +86-758-3623880
Address: NO.3 Kangtai St., Hi-tech Dist., Zhaoqing City, Guangdong Province, China（526238）
