Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers

English
Home  > Weighing filling machine  >  Quantitative Semi-Automatic Paint Filling Machine for 0.5~8kg

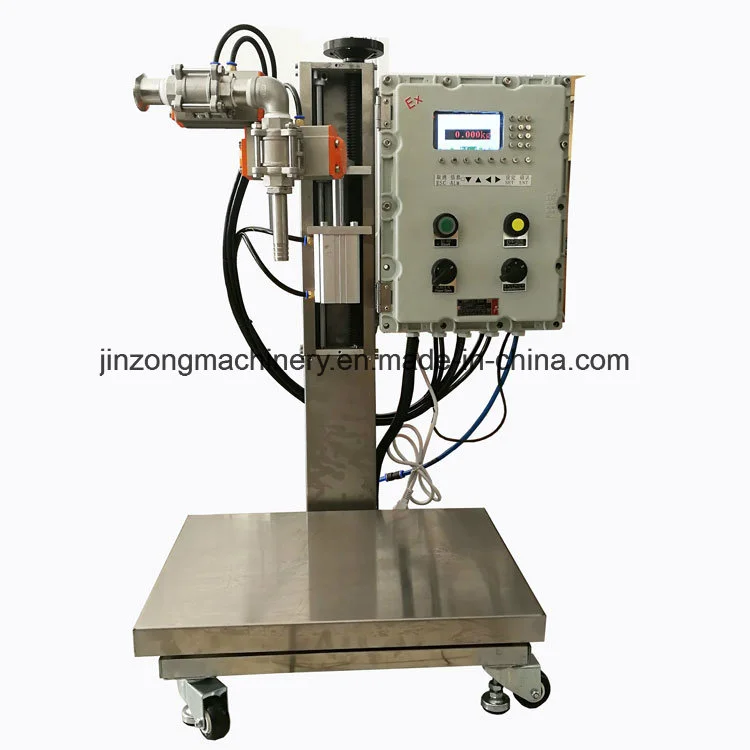

Quantitative Semi-Automatic Paint Filling Machine for 0.5~8kg

Quantitative Semi-Automatic Paint Filling Machine for 0.5~8kg

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Model NO.JZWarranty12 Months
Filling Valve HeadSingle-HeadFilling Speed5-12barrels/S
TypeWeighing-Type Filling MachineAfter-Sales Service ProvidedEngineers Available to Service Machinery Overseas
TrademarkJinzong MachineryTransport PackageQualified Plywood Case
Specification0.5~8kgOriginGuangdong, China (Mainland)
HS Code8422301090
Product Description:
paint filling machine
This filling machine is application for various coatings, inks, automotive paint, furniture paint, adhensives (glue), resin, chemical solvents, curing agents, lubricants, shoes glue, spray glue, and all kinds of liquids which can flow.

Quantitative Semi-Automatic Paint Filling Machine for 0.5~8kg

Main Technical Parameter:

  • production capacity: 3kg 4-5 bottles / second , 5kg 8-10 bottles / second( depends on product's viscosity)
  • weighing error: ≤ 0.3%
  • liquid material inlet mode: the outlet from the ground about 1 meter drop or pumping
  • working pressure: 0.3 ~ 0.5MPa
  • Power: AC220V ± 10%
  • Electric control cabinet: explosion-proof
Features:
  • Filling speed: the first fast then slow filling, so as to ensure accuracy and prevent splashing
  • To prevent misuse, there is no delay and no bottle filling function
  • With manual, jog and automatic functions
  • The frame material is 201,the liquid flows through the pipe as stainless steel 304, the chassis is cast aluminum alloy, explosion-proof grade IIBT4
  • Filling head height adjustable, suitable for different barrel filling
  • Filling counting and setting and storage of recipe function

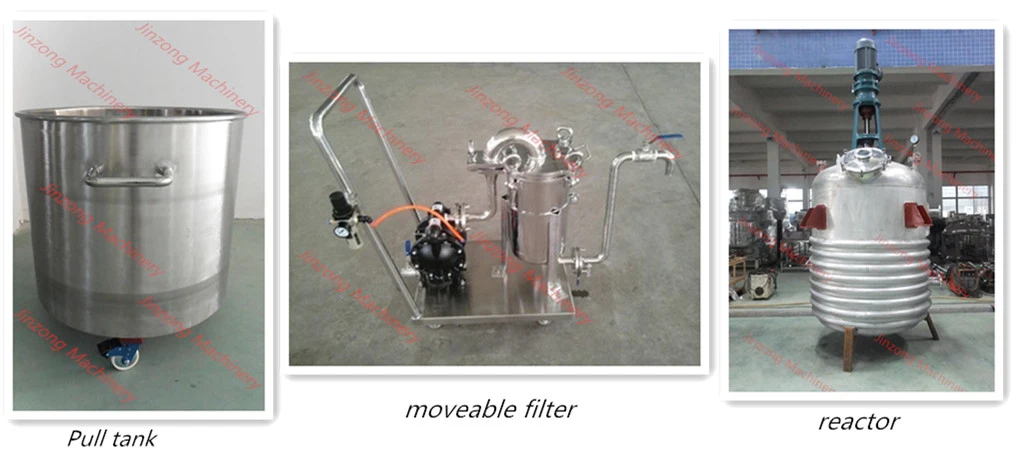

Related Products:
Quantitative Semi-Automatic Paint Filling Machine for 0.5~8kg

Feature:
Digital input to set weight and 10 recipes can be saved;
·With working status indicator and clock display;

·Tare inspection triggers all-position barrel putting and filling operation;
·GW/NW (barrel tared automatically) two filling modes;
·Automatic zero position tracking, barrel quantity accumulation and weight accumulation;
·Automatic weight error correcting;
·Automatic clear to zero after start-up and there is power-off protection device;
·Protection device against emergency stop;
·Factory default setting can be restored in case of misoperation;
·Fault detecting function makes maintenance easier;
·Easy moving, explosion-proof configuration and simple operation.


Techinical Information:

Power:0.3kw
Dimension1200×800×1500mm
Filling head:Single
Filling volume:10000 ml
Apply barrel high:500 mm
Filling speed:5-12 barrels/ min
Filling Precision:99.99%
Working pressure:Normal
Application for:Paint, adhesive, pigment,, beverage , juice, cosmetic, liquid detergent, water, sauce, etc.
Application industry:Chemical, daily chemical, food, pharmaceutical, beverage etc.

Our Service:
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to  abroad  installation and debugging.

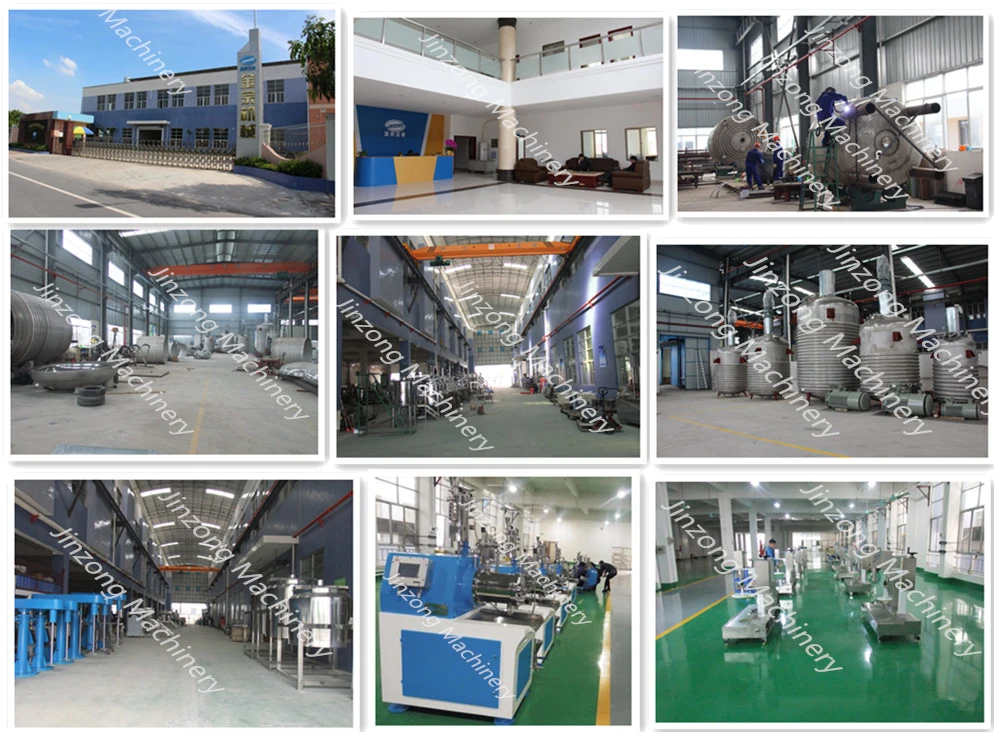

Company Infromation:

We are a professional manufacturer of  cosmetic,chemical& pharmaceutical machinery and equipment more than 17 years .Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
2> Chemical Machinery:  reactor, mixing equipment,separation equipment, storage tank, grinding machine, filling machine,etc.
3> Pharmaceutical  Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.

We are not only professional manufacturer, but also the best solution provider!
Quantitative Semi-Automatic Paint Filling Machine for 0.5~8kg


Our Certificates:
Quantitative Semi-Automatic Paint Filling Machine for 0.5~8kg

Our Cutomers:

Over years, we have been serving American WILLOWTEX,Poland ANSER,Egypt ENDMOUN,Indian SWASTIK POLYMERS, Guangzhou Petrochemical Company, AKZONOBEL, Germany Henkell, Guangzhou Rubber, Daxing Hot Melt Glue, Bostik Findley, Forbo Bonding, Guangzhou Xiupo, China Paint and other more than thousand small and medium-sized enterprises, winning wide recognition and support from customers.
Quantitative Semi-Automatic Paint Filling Machine for 0.5~8kg
Quantitative Semi-Automatic Paint Filling Machine for 0.5~8kg

Our filling machines and related accessories are all custom make and we can do special engineering to meet every customer's demand as the basic theories for filling or packing machines are almost the same. For different materials, the parameters can be adjusted and related factors will be taken into consideration.
For custom make of filling machines, we need to know your materials, density, viscosity, power voltage, the speed you want, size of your cans or barrels and so on.

Welcome your inquiry

Guangdong Jinzong Machinery Co., Ltd., which specializes in the supply of mechanical equipment, is famous for its name as Jinzong Machinery. Its frame is designed to reduce heat transmission. Without good quality, mechanical equipment can't be keeping stable rise for sales volume in its market. Its frame is designed to reduce heat transmission.
