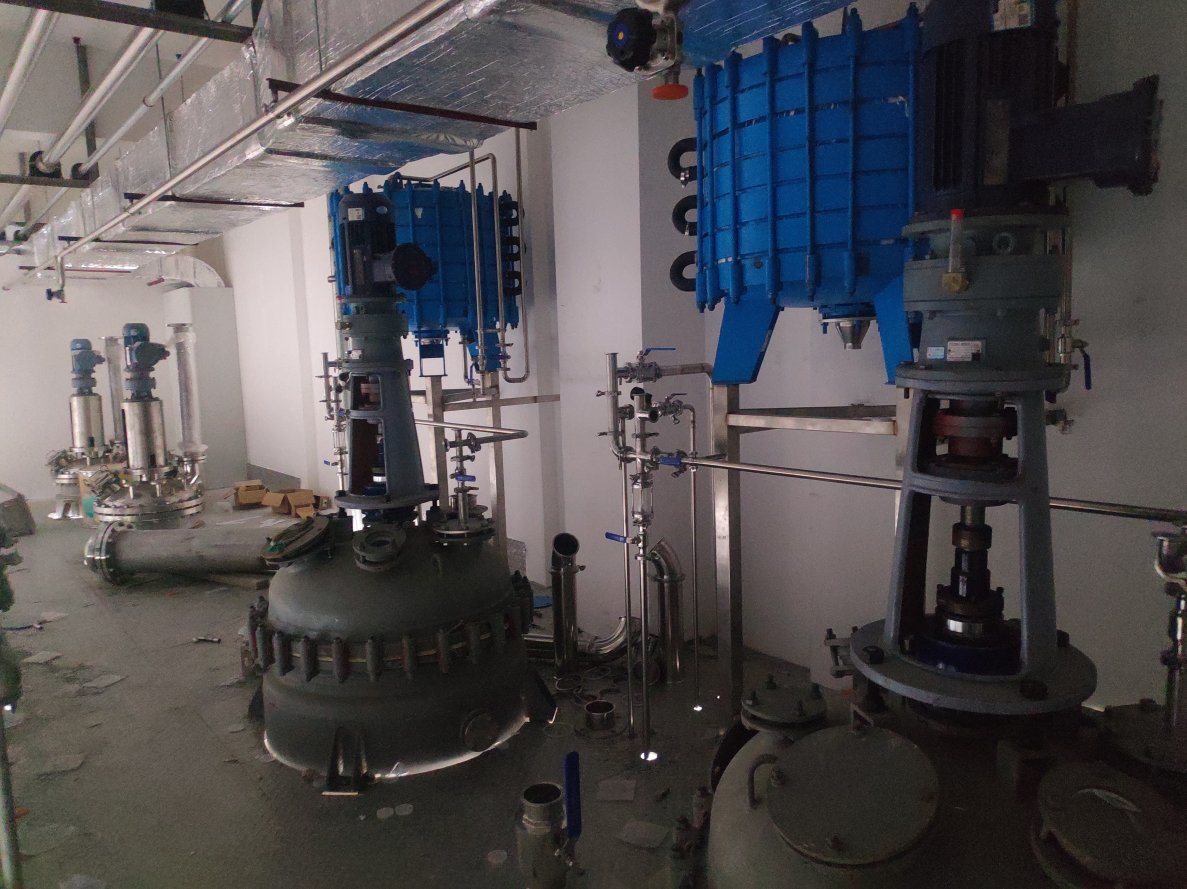

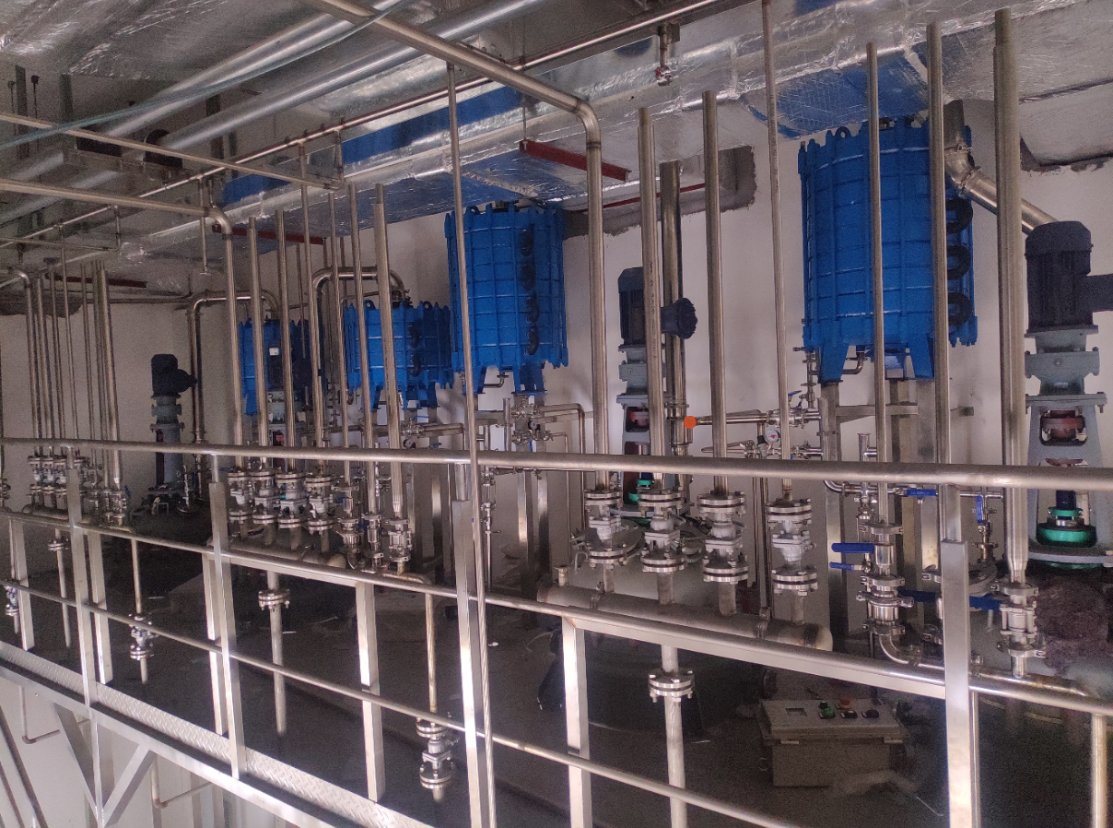

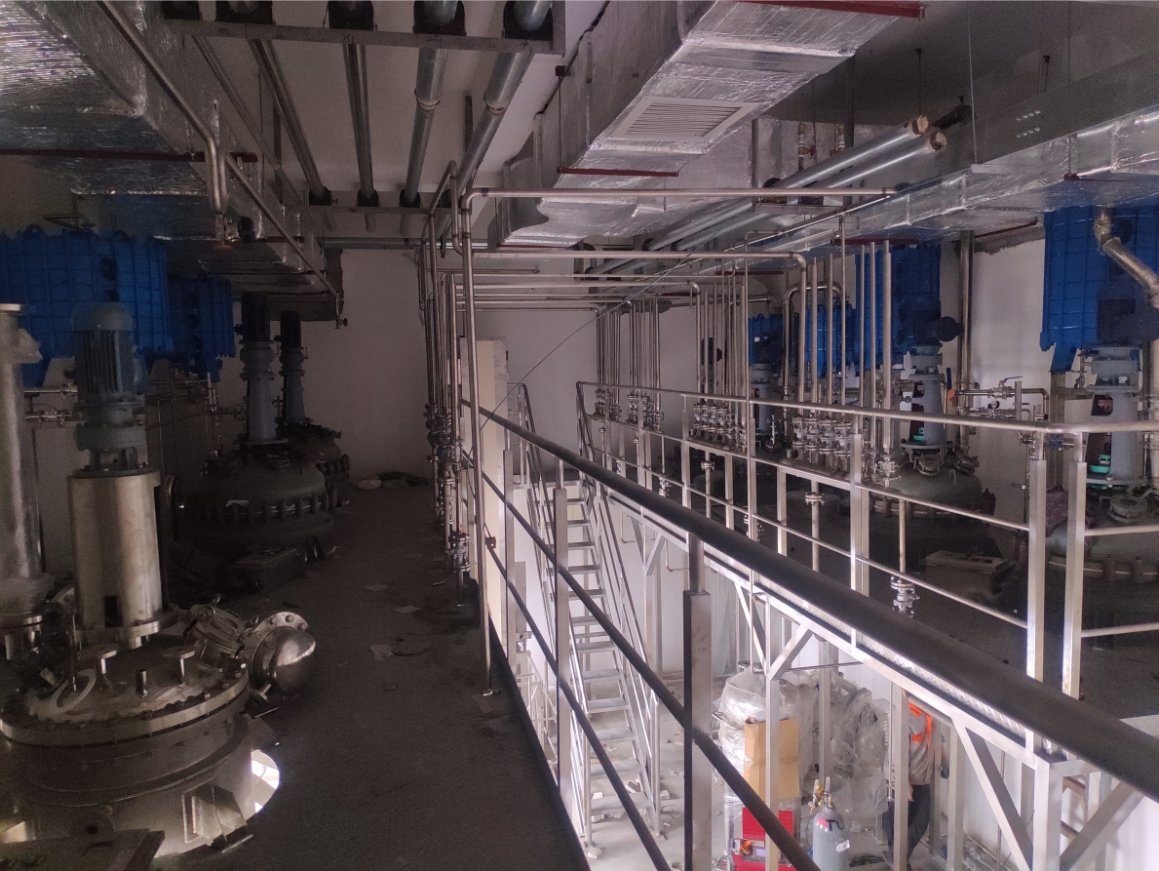

Preparation Injection Solution and API Project Plant Pharmaceutical Reactor

Preparation Injection Solution and API Project Plant Pharmaceutical Reactor



Operating principle: Break down or recombined the materials through mixing, heating and cooling, to promote mixing uniformly and quickly.
Components: Body, gears, mixing devices, heating devices, cooling devices, seal, etc.
Auxiliary Equipment: high speed homogenizer, high speed disperser etc..
Widely used in: cosmetics, cosmetic, pharmaceutical, food, paint and other chemical production.
Applicable Field: All the liquid-liquid, liquid-powder mixing industry.

Our company is an enterprise specialized in designing and manufacturing reaction kettles,
we can design and manufacture various types of mixing tank for users.

Main parameters and configuration
1) nominal volume:50L-20000L and other general specifications and non-standard design and production.
2) the structure of the form: vertical, the use of conical, oval, dish shaped head, also apply to the need to close the heating, mixing, reaction, enzymatic hydrolysis and other process operation.
3) jacket forms: hollow heat conducting oil or water), semicircular coil pipe, honeycomb jacket (on demand system), heating or cooling efficiency is high.
4) insulation material: filling pearl cotton, rock wool, polyurethane foam, with good thermal insulation effect.
5) exterior surface of the cylinder body: use mirror polishing or 2B color matte or 2B matte surface polishing treatment, beautiful and clean appearance.
6) stirring device: at the top of the tank in the (partial) heart stirring, stirring side; agitator types: frame type, anchor type, push type, blade, scraping wall blade etc.
7) stirring speed:  Low speed stirrer, high speed disperser or high speed homognizer.
8) level meter form: glass tube liquid level gauge, static pressure sensing type liquid level meter and so on (for selection).
9) feet form: adjustable three pyramid form or cylindrical tube.
10) equipment accessories configuration: quick open sanitary manhole, mirror, (liquid crystal digital display type or dial pointer type) thermometer, respirators, CIP cleaning machines, material liquid inlet and outlet, circular mouth, hot and cold media import and export interface, the nozzle can be according to the process of selection may increase or decrease).
11) tank equipment material: SUS304 or SUS316L SUS304 or Q235-B; jacket; cover cylinder for SUS304.

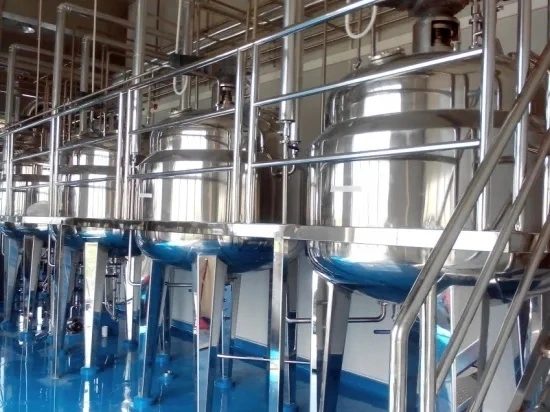

Pharmaceutical Liquid Mixing Tank

Features

Feature: the equipments are designed and manufactured fully according to the demand of GMP and to standards, such as (steel pressure vessels) (GB150-2011), and (steel welded atmospheric pressure vessels) (JB/T4735-1997), etc.



Application

It is applied to liquid preparation and various water treatment process in purgative area,such as infusion solution ,injection solution, eye drop, oral liquid and blood preparation.



Description of Pharmaceutical Liquid Mixing Tank


Product technical description

Specification: 30L~50000L
Material: SS316L or SS304
Surface finish: inside surface is Ra0.28~0.4μm by mechanical polish. (passivation or electropolish are optional). Outside surface is Ra0.6~0.8μm by satin finish.
Agitator: Top mechanical agitator (propeller, spiral and anchor or others)
Pressure: ATM or pressure vessel (-0.1~1Mpa)
Structure: Single layer vessel, vessel with jacket, vessel with jacket and insulation
Jacket type: dimple jacket, full jacket, or coil jacket
Insulation material: rock wool
Components: vent filter, temp. gauge, level gauge, manhole, sight glass with lamp and cleaning ball or according to client's detail requirement.
Manufacture standard for pressure vessel: ASME, PED 97/23/EC, GB150-2011

Working volume	Inner diameter	Outer diameter	Vessel height	Total volume
30L	400mm	500mm	400mm	44L
50L	400mm	500mm	600mm	69L
100L	500mm	600mm	650mm	130L
200L	600mm	700mm	1000mm	250L
300L	700mm	800mm	1250mm	370L
500L	900mm	1050mm	1150mm	650L
1000L	1100mm	1250mm	1480mm	1260L
1500L	1200mm	1350nmm	1700mm	1780L
2000L	1300mm	1500mm	1980mm	2200L
3000L	1500mm	1700mm	2150mm	3400L
4000L	1600mm	1750mm	2630mm	4000L
8000L	1900mm	2100mm	3200mm	8300L
The above dimension is only for reference, we can make up to 30000L , and we can make special dimension according to client specific requirement.

Our Services

     We guarantee our products manufactured with a reasonable standard of craftsmanship and materials, and in accordance with the tender, the contract stipulated quality, specifications and performance requirements.
     Ensure that the equipment has been installed correctly, normal operation and maintenance, with a satisfactory performance in their life.
     After the equipment manufactured, the company for equipment quality, performance requirements detailed and comprehensive examination according to the contract, the quality to meet the requirements, and issue product certification, inspection records.
    All equipment warranty period after installation and commissioning qualified 12 months.
Service commitment
     (1) during the installation, commissioning and quality assurance, we have experienced engineers to provide users with reliable technology services.
     (2) To ensure the quality of the project, provide on-site installation, commissioning, maintenance and other relevant information, and deliver technical documents and drawings related to the tender requirements. To provide users with a complete equipment installation manual, operation maintenance manual; qualified for customer satisfaction electrical equipment and first-class technical services. Ready to offer new products detailed technical information to the user.
