Jinzong Machinery Aluminium Tube Filling and Sealing Machine
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model NO. | JGS | Packaging Material Mechanical Properties | Full Automatic Filling and Sealing Machine |
| Material Type | Liquid | Sealing and Filling Machine | for Aluminium Tube |
| Trademark | Jinzong Machine | Transport Package | Wooden Case |
| Specification | CE | Origin | Guangdong, China |

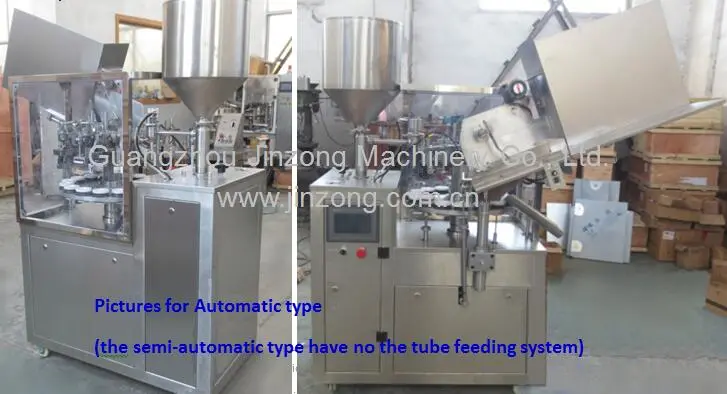

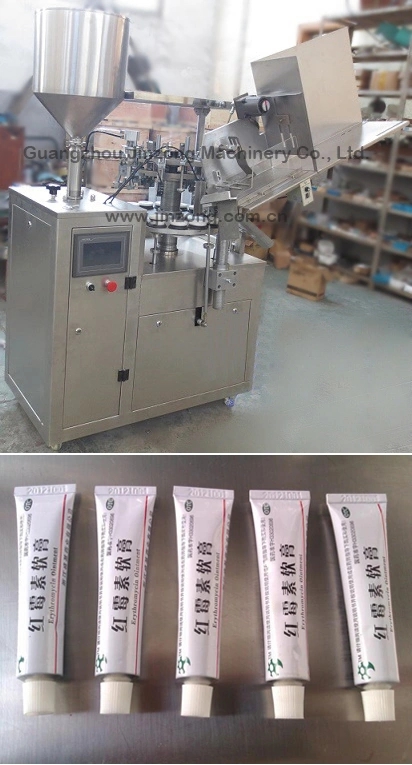

Semi-Automatic aluminium tube filling and sealing machine
Automatic tube filling and folding tail machine is designed and manufactured according to the latest developed foreign advanced technology and the actual situation of China. All parts contacted with material are made of stainless steel, this machine is special for aluminium tube filling and sealing, automatic filling tubes can be done automatically, folding tail and output, the maximum operating speed of 40 pic/ min, frequency control. Filling accuracy is 1%.
Characteristics:

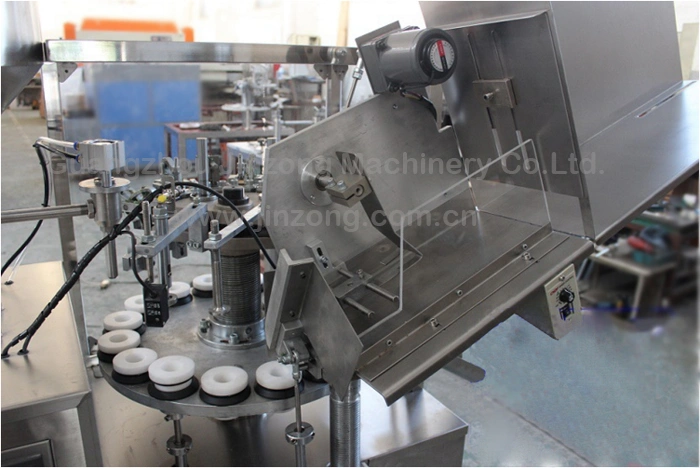

The machine sealing part: aluminum side after three or five fold, coding, automatic code print. In order to avoid leakage, we adopts Japanese import sealing ring for this machine. The whole machine has advanced structure, advanced configuration, convenient operation, convenient maintenance, easy to clean, and so on. In addition, the cam is located in the table to facilitate the replacement of aluminum species.
Specification:
Touch screen controlle
Optional:
Automatic tube filling and folding tail machine is designed and manufactured according to the latest developed foreign advanced technology and the actual situation of China. All parts contacted with material are made of stainless steel, this machine is special for aluminium tube filling and sealing, automatic filling tubes can be done automatically, folding tail and output, the maximum operating speed of 40 pic/ min, frequency control. Filling accuracy is 1%.
Characteristics:
The machine sealing part: aluminum side after three or five fold, coding, automatic code print. In order to avoid leakage, we adopts Japanese import sealing ring for this machine. The whole machine has advanced structure, advanced configuration, convenient operation, convenient maintenance, easy to clean, and so on. In addition, the cam is located in the table to facilitate the replacement of aluminum species.
| Power supply:Single phase 220V±10% 50HZ( customizable) Filling range:10-75ml20-150ml Accuracy:≤+/-1% Motor power:2.2kw Tube diameter: Φ10-50mm Capacity:30-40 pic/min( adjustable ) Compressed air:pressure 0.6-0.7mpa Dimensi ons: 1100*600*1300mm Weight: 230kg |
Optional:
Tube feeding system:slanting hanging type automatic tube feeding tank (automatic type)
Saddle-shaped tube sealing device (automatic type)
Jacket type insulation hopper
Mixing system for hopper
Automatic material feeding system(pump) (automatic type)
Final product transport device (automatic type)
Saddle-shaped tube sealing device (automatic type)
Jacket type insulation hopper
Mixing system for hopper
Automatic material feeding system(pump) (automatic type)
Final product transport device (automatic type)
*After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
*ONE-STOP SERVICES
According to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
*ONE-STOP SERVICES
According to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services
The use of the product helps manufacturers cut down labor costs, and shift the investment to other profit-generating things, such as brand advertising. The product works very smoothly and causes less noise.
The product promotes relief of worker fatigue and stress because it makes work easier and requires less skill intervention. The product works very smoothly and causes less noise.
