| Model NO. | FS | Layout Type | Verticle |
| Mixing Drum Shape | Disc | Additional Capabilities | Milling, Coating |
| Operating type | Continuous Operating | Condition | New |
| Name | Double Shaft Disperser | Cylinder Capacity | 100L~3000L |
| Brand Name | Jinzong Mahcinery | Place of Origin | Guangdong, China (Mainland) |
| Voltage | 380V 50Hz | Trademark | Jinzong Machinery |
| Transport Package | Plywood Case | Specification | CE, SGS, ISO9001 |
| Origin | Guangdong | HS Code | 8479820090 |

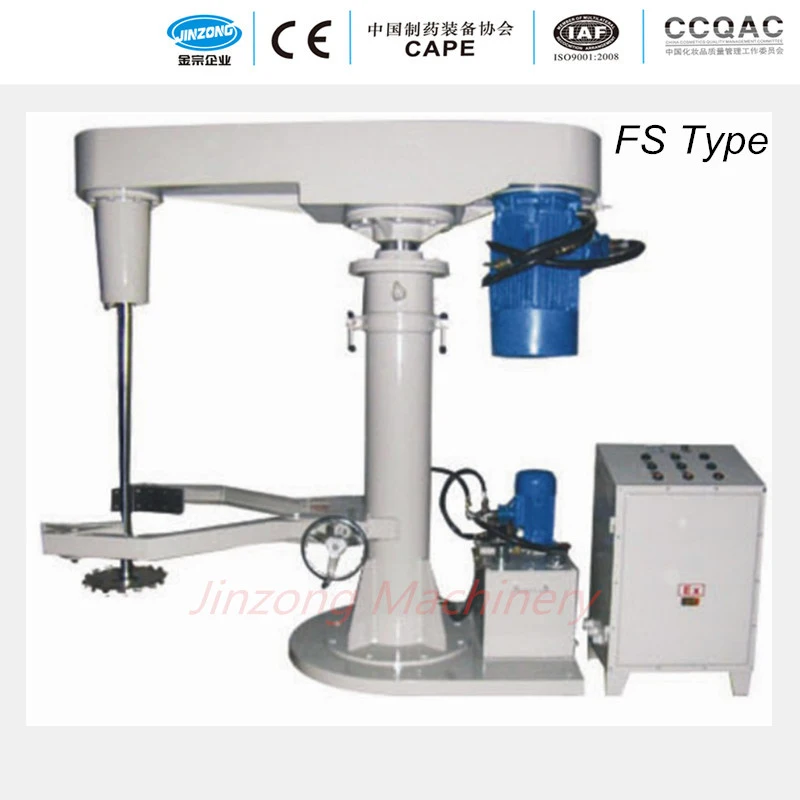

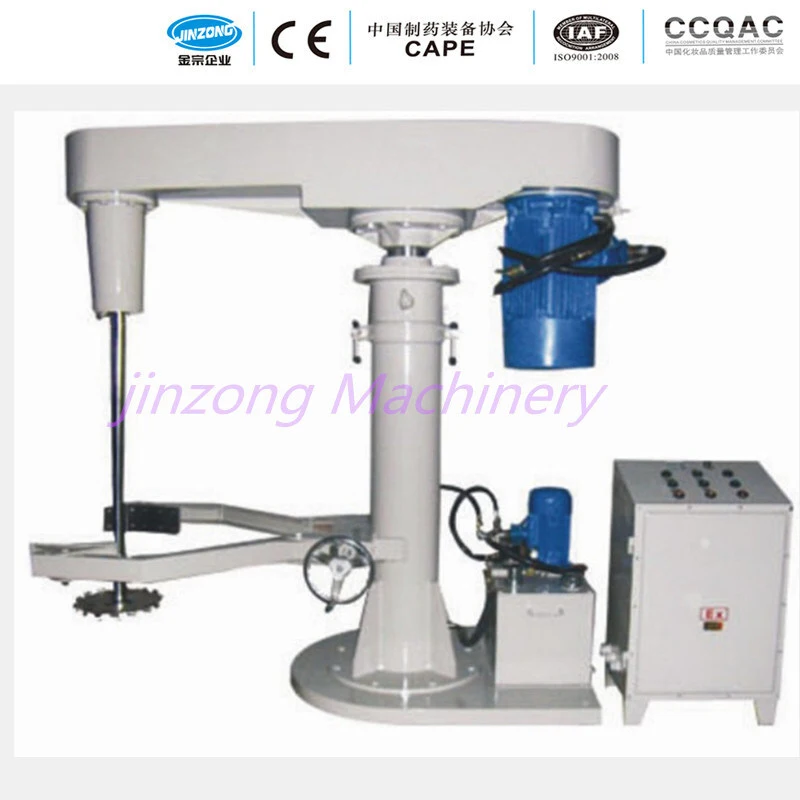

Product DescriptionThe series of equipment are applied to the dissolution, mixing and dispersion of materials in many industries such as painting, dyestuff, pigment, medical, papermaking and other industries. The equipment is characterized by minimum include air during mixing and dispersion, perfect solid-liquid mixing and dispersion effect, and fast dissolution and fine particles during high-and medium-speed dispersion processFeatures:
1. It has clamp device to fix vessel/container when under working process.
2. This model is more stable of working with vessel/tank than common type.
3. With variable running speed.
4. With frequency inverter to control the shaft mixing speed.
Technical parameter:
1. Motor: Alternative motor (Siemens, ABB, flameproof type is optional )
2. Power: From 1.5KW to 132KW
3. Power Supply: 380V/50Hz, 3P (voltage can be customized )
4. Speed control: with frequency inverter to realize various speed control
5. The part contacting with materials is: SUS304 or SS316L
6. Supporting frame: Q235-A
7. Height adjustment: Hydraulic lifting
8. with belt clamp, manual steel clamp or pneumatic clamp device.
| Model | Plate Diameter of Dispersed(mm) | Motor Power(mm) | Speed(rpm) | Pump Power(kw) | Lifting Height(mm) |
| FS4 | 200 | 4 | 1~1450 | 0.55 | 900 |
| FS5.5 | 200 | 5.5 | 0.75 | 1000 |
| FS7.5 | 250 | 7.5 | 0.75 | 1000 |
| FS11 | 250 | 11 | 0.75 | 1000 |
| FS15 | 250 | 15 | 1.1 | 1200 |
| FS18.5 | 300 | 18.5 | 1.1 | 1200 |
| FS22 | 300 | 22 | 1.1 | 1200 |
| FS30 | 350 | 30 | 1~1200 | 1.1 | 1200 |
| FS37 | 350 | 37 | 1.5 | 1200 |
| FS45 | 400 | 45 | 1.5 | 1200 |
| FS55 | 400 | 55 | 1.5 | 1200 |
• Coatings
• Paints
• Dye Stuffs
• Carbon Dispersions
• Printing Inks
• Silicone Coatings
• Paper Coatings
• Photographic Inks
• Pigments
• Dispersions
• Fine chemicals*Packaging& Shipping1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall*Our ServicePre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.*Company InformationWe are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 17 years .Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
3> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.Why Choose Jinzong Machiney?1. More than 17 years in Cosmetic and cheimical industry
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Good reputation in industry.
4.Have a Professional after-sales service engineering team
5.Large scale and strong strength
