High Speed Basket Sand Mill

MOQ:

1pcs

Place of Origin:

Guangdong,China

Payment Terms:

L/C, T/T, Westernunion, Paypal, Cash

Delivery Time:

3-30 working days depends on quantity

Accept Custom Service:

Yes

Certification:

CE / ISO9001:2015 / SGS

Inquiry

Write a Review

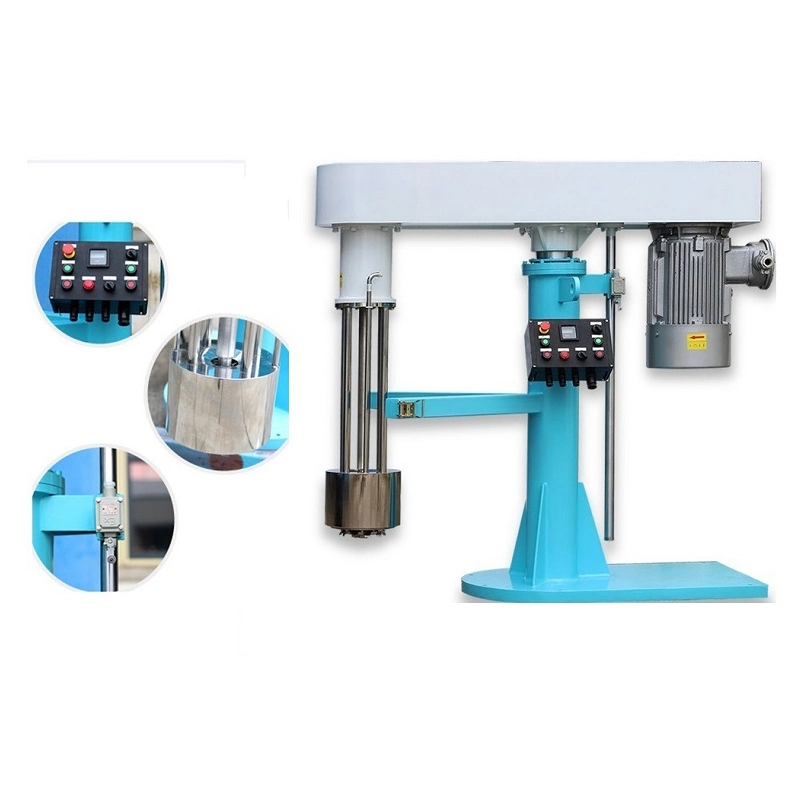

Basket Sand Mill

*Description:

The basket is mainly composed of hydraulic lifiting system，transmission system，grinding system and so on. The hydraulic lifting system adopts the traditional hydraulic oil and the cylinder. The cylinder adopts the engineering cylinder. The cylinder is smooth and the hydraulic oil is less, And less oil spill phenomenon , hydraulic pump and motor place in the fuselage, no space, more compact, conducive to the maintenance and cleaning machine; transmission system using conventional pulley and conventional V-belt, the use of small noise process, more the use of imported bearings, long life, high speed noise small heat less; grinding system consists of all stainless steel material ,the basket stainless steel by heat treatment, high wear and corrosion resistance, the media using zirconia beads ,The bottom of the basket by the special leaves, play a pre-dispersed at the same time can make the bottom of the material up the roll, in order to achieve better grinding effect.

High Speed Basket Sand Mill 4

High Speed Basket Sand Mill 5

*Features:

1. Configure with qualified Inverter, various speed control
2. Hydraulic lifting, can be moved around
3. Integrate dispersing and grinding in one process

Technical Specifications

Model	Power (KW)	Speed (RPM)	Lifting Type	Lift Strock(mm)	Milling Medium	Milling Capacity	Medium size (mm)
LS-4	4kw	0-1500rpm	hydraulic	700mm	1.2-1.4 Pure zirconia beads	30L-100L	0.2μ
LS-7.5	7.5kw	0-1500rpm	hydraulic	700mm	1.2-1.4 Pure zirconia beads	40L-200L	0.2μ
LS-11	11kw	0-1300rpm	hydraulic	900mm	1.2-1.4 Pure zirconia beads	50L-300L	0.2μ
LS -15	15kw	0-1300rpm	hydraulic	900mm	1.2-1.4 Pure zirconia beads	50L-400L	0.2μ
LS -18.5	18.5kw	0-1300rpm	hydraulic	900mm	1.2-1.4 Pure zirconia beads	80L-600L	0.2μ
LS -22	22kw	0-1100rpm	hydraulic	1200mm	1.2-1.4 Pure zirconia beads	150L-800L	0.2μ
LS -30	30kw	0-1100rpm	hydraulic	1200mm	1.2-1.4 Pure zirconia beads	250L-1200L	0.2μ
LS -37	37kw	0-1100rpm	hydraulic	1200mm	1.2-1.4 Pure zirconia beads	500L-1500L	0.2μ
LS -45	45kw	0-1000rpm	hydraulic	1400mm	1.2-1.4 Pure zirconia beads	500L-2000L	0.2μ
LS -75	75kw	0-900rpm	hydraulic	1500mm	1.2-1.4 Pure zirconia beads	600L-3000L	0.2μ

Our Strength

◪ More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
◪ Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate. We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
◪ Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise".
◪ Have a Professional after-sales service engineering team.
◪ Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year.

Certification
