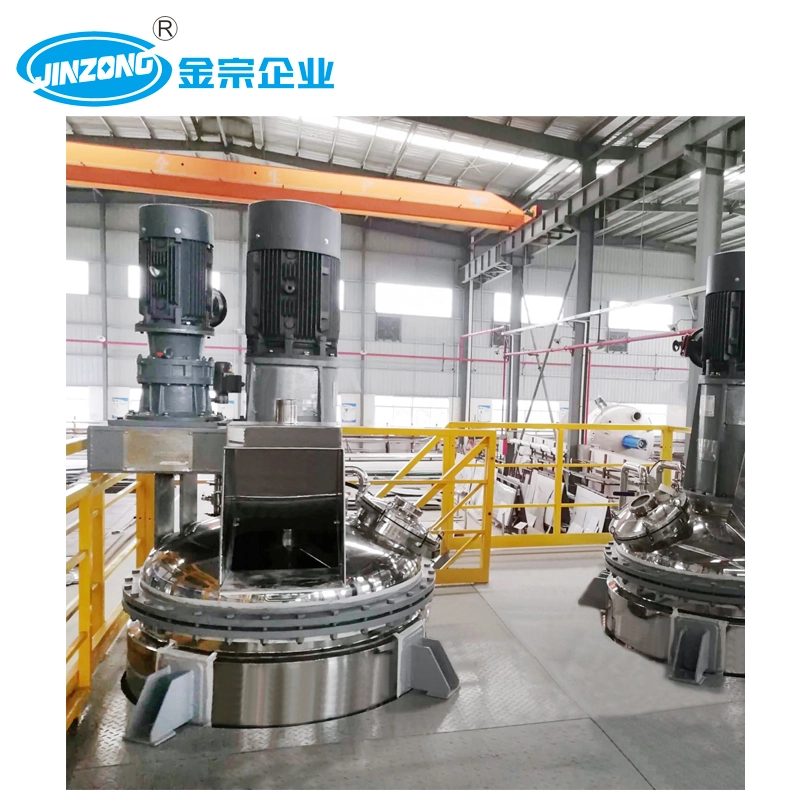

Double Shaft High Speed Dispersing Tank
Double Shaft High Speed Dispersing Tank
1.Discription:
Triple Shaft Dispersing Vessel is suitable for mixing,dispersing and dissolving liquid and solid materials in chemical industries such as coatings,dyes,pigments,inks,papermaking and adhesives,also using in food industries,cosmetic industries.It has the characteristics of little air suction and slippage in mixing and dispersing time,good mixing and uniformity effect,rapid dissolution of materials and small particles during high-and medium-speed dispersion process.
2.Application:
It is widely used in coating , oil, ink ,resin, adhesive, medicine,pigment food industry etc.are widely used in papermaking, dye and pigment, paint and coating, electronics, ink, Chemical, food and cosmetics industries etc.
3. Double Shaft Dispersing Vessel
Main composition
The dispersing vessel is mainly composed of dispersing vessel,high speed disperser,low speed agitator with scraper, ,control valves,etc.
4.Technnical Data
Main Parameter
No. | Name | Material & specification | Origin | NOTE |
I．specification | ||||
| 1 | vessel capacity | 2000L,3000L,5000L,6000L,8000L,etc | Jinzong | |
2 | Main Vessel | Structure:upper flat cover,and bottom dish head cover,welded coupling,or customized | Jinzong | In and out polished |
a | Tank parts | SUS304, thickness: customized Seal bottom: SUS304, thickness: customized Cylinder tank size:customized Inner mirror polished | Jinzong | Normal pressure |
b | Top cover | Flat cover,with rectangular door, and different function nozzles according to customers’ requirement | Jinzong | customized |
c | Jacket | Materials:carbon steel or sus304 Jacket for water cooling Optional :If customers' production process need cooling function. | Jinzong | Normal pressure |
d | High speed disperser | Voltage: As per your voltage( 380V，3P，50HZ,etc) Motor: exlposion proof motor,etc Rotating Speed: 0-1440 rpm Introduction: high speed disperser is mainly used to crush and disperse slurry liquid raw materials with different viscosities. Through the high-speed operation of the dispersion plate, there is a strong shear impact and friction between the material and the dispersion plate, so as to achieve the functions of rapid dissolution, uniform mixing Disc D iaamnde tdeisr：Ø400-Ø500mm, Stainless Steel 304, Two layer tooth disc structure,the upper and lower two-layer dispersion plates,they have higher dispersion efficiency, high beating efficiency and good effect. Frenquency Converter：Stepless Speed Variation，Digital Display, Bearing: Japan NSK product ,(closed structure, dust-proof). Spindle: Stainless Steel 304; Dynamic and static balance test to ensure accuracy Shaft seal：Sealed, can be evacuated | Made in China | Wannan Motor Danfoss inverter |
f | Paddle Type Low Speed Mixer Part | Paddle type low speed mixer Drive: three phase asynchronous motor (380V, 3P, 50Hz) Power: customized Reducer: gear reducer (helical gear reducer) Speed: 0-180rpm (adjustable speed) Steering: fixed steering Blade type: RM-01 blade spiral belt type; Mixing material: stainless steel 304, mirror polished; Introduction: make the materials with high solid content and high vgiestc roaspitiyd forced mixing. Bearing: NSK products from Japan | Joint Venture | Wannan motor Guomao reducer Danfoss inverter |
g | Mixer Part | Model: coaxial frame mixer Drive: three phase asynchronous motor (380V, 3P, 50Hz,etc) Power:customized Reducer: gear reducer (helical gear reducer) Speed: 27rpm (adjustable speed) Steering: fixed steering Blade type: frame type with blades; Mixing material: stainless steel 304, mirror polished;Scraper with PTFE added Introduction: paddle mixing plus paddle, so that the bottom that is not dispersed in time can be stirred quickly, without dead corner and wall sticking materials. Bearing: Japanese NSK,(closed structure, dust-proof). | Joint Venture | Wannan motor Guomao reducer Danfoss inverter |
h | Discharge way | Bottom valve discharge | Jinzong | |
5.Project Sample:
