Model NO.	JZ	Layout Type	Verticle
Mixing Drum Shape	Disc	Additional Capabilities	Milling, Coating
Operating type	Continuous Operating	Condition	New
Name	Double Shaft Disperser	Cylinder Capacity	100L~3000L
Brand Name	Jinzong Mahcinery	Place of Origin	Guangdong, China (Mainland)
Voltage	380V 50Hz	Trademark	Jinzong Machinery
Transport Package	Plywood Case	Specification	CE, SGS, ISO9001
Origin	Guangdong	HS Code	8479820090

Product Description
It is to dissolve, disperse and mix materials, and also called "Dissolver".

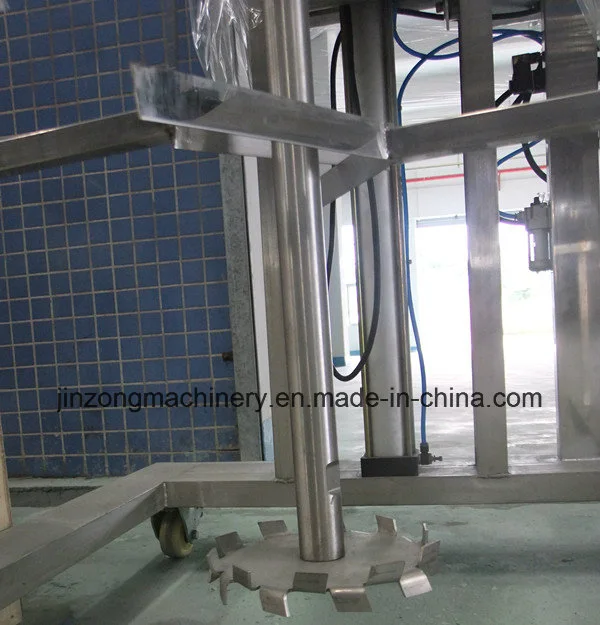

Through the very high peripheral tip speed of the toothed disc.
It has the strong shearing, crashing and friction forces generated between the materials and toothed disc-
disperse,dissolve and mix the materials efficiently.

Features:
This model is suitable to use in industrial fields for pre-mixing liquids.
• It disperses and dissolves materials to smaller particle size efficiently.
• The motor can be ABB or SIEMENS brand ( flame-proof type is optional ).
• Power supply: 380V/50HZ, 3P( voltage can be customized ).
• Speed control: with frequency inverter to realize various speed control.
• The contacting parts are: SS304 or SS316L stainless steel.

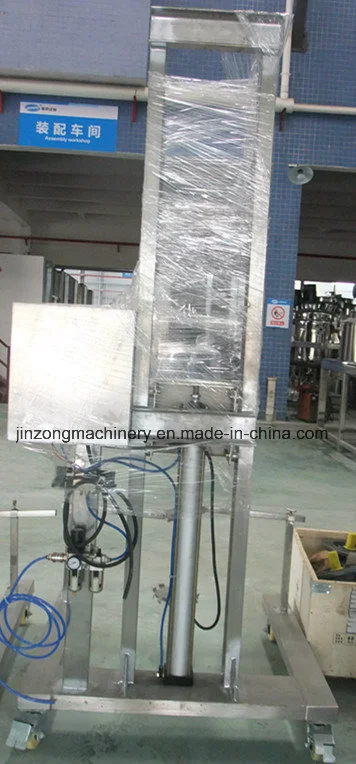

• Height adjusting: pneumatic lifting ways

Technical parameter:

Type	Capacity (L)	Power (kw)	Speed (rpm)	Dia. of disperser (mm)	Lifting height (mm)	Weight (kg)
1.5	≤80	1.5	0-2880	100	500	100
2.2	≤100	2.2	0-1440	150	500	120
4	≤200	4	0-1440	200	600	180
5.5	≤300	5.5	0-1440	250	700	200
7.5	≤400	7.5	0-1440	250	700	230
11	≤500	11	0-1440	250	800	260

Remarks:
*The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors such as materials' viscosity, gravity etc.
*If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for correct model selection.

Applications:
• Coatings
• Dye Stuffs
   • Carbon Dispersions
   • Printing Inks
   • Silicone Coatings
   • Paper Coatings
   • Photographic Inks
   • Pigments
   • Dispersions
   • Fine chemicals
*Packaging& Shipping
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
*Our Service
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.
