Diluter-Collocation Tank, Concentrated-Collocation Tank, Collocation Tank

Diluter-Collocation Tank, Concentrated-Collocation Tank, Collocation Tank

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Model NO.YFPMaterialStainless Steel 304 / SUS316L
Voltage220V/380V/415V/440VPower(W)0.37kw~3kw
StandardGMPWarranty1 Year
After-Sales Service ProvidedEngineers Available to ServiceTrademarkJinzong Machinery
Transport PackageHigh Quality Plywood Cases of Export StandardsSpecificationvolume: 100L-7000L
OriginGuangdong, China (Mainland)HS Code8479820090

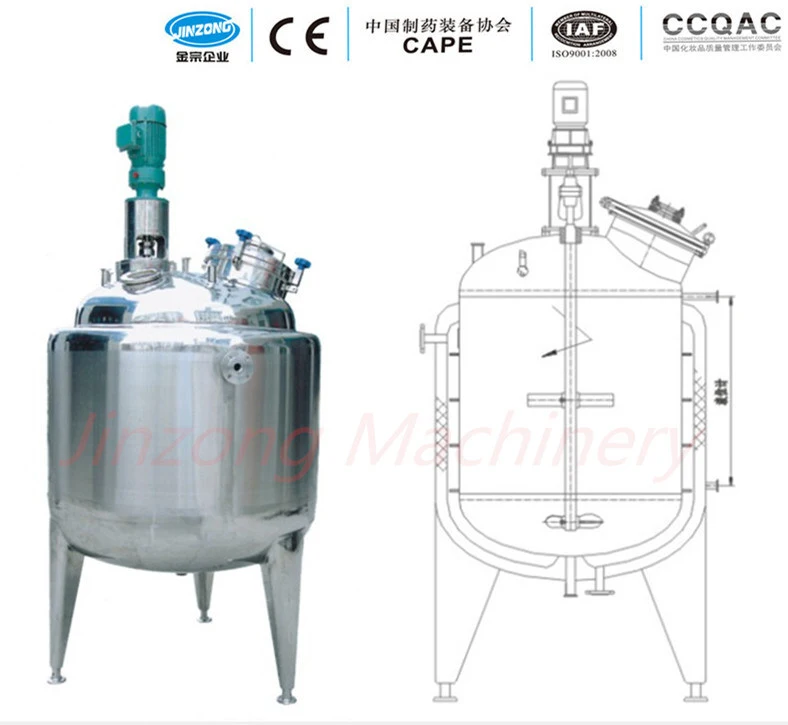

Description

1. The series tank has the functions of heating and heat preservation, manufactured, pressure-tested and checked in accordance with the .
2. The standard specifications from 100L to 7000L, and we can design and make as per customer's special requirements.
3.  The sealing of mixing shaft is of mechanical seal of imported health class, the decelerator is from famous brand German FLENDER or SEW. The speed of mixer is 36-53 rpm, and also can be frequency control.
4. The joint is of quick-acting type in compliance with ISO standard. The inner tank is made of stainless steel 316L or 304.
5. On the tank's boby has respectively fluid level gauge(the mode is non-contact supersonic, static-pressure transmission or glass tube), breathing apparatus, sterilization steam opening, the rmometer(digital-indicated type or dial type), CIP universal tank-cleaning device, viewing mirror at lamp hole, some fluid inlets & outlets and herringbone hole.

Characteristics
A. Inner figuration: vertically barrel-shaped(inner barral touched with medicine liquid)
B. Inner material: 316L(imported from Janpan)
C. Inner smoothness:0.28-0.45
D. Outer material:
E. SUS304 MAT SHEET
F. Heating coil material: SUS304
G. Heat preservation heat insulation material:
pearl cotton
H&period; Exterior surface temperature&colon; <10ºC
I&period;  Working pressure&colon; normal pressure
J&period; Working temperature&colon;60-100ºC
K&period;Sterilization pressure&colon; 0&period;15-0&period;3MPa
L&period; Sterilization temperature&colon;121-132ºC

Configuration

&ast;Decelarator &lpar;brand from Germany FLENDER or SEW&rpar;
&ast;Foldable micro pore film air filter&lpar;filtration of bacteria of 45 μ M and above&rpar;
&ast;Leakage-proof device&lpar;100&percnt;&rpar;
&ast;Interface for liquid level &lpar;static-pressure sensor type&comma; supersonic type and glass tube level meter for altemative&rpar;
&ast;Interface of thermometer &lpar;temperature sensor&rpar;
&ast;Interface for gas exhaust and security valve&lpar;connected to breathing apparatus accompanied by aseptic filtration &rpar;Aseptic air interface for sterilization with steam and filtration
&ast;Cleaning ball &lpar;rotating for 360° Under low pressure &rpar;
&ast;Inlet and outlet for medicine liquid &lpar;quick-acting installation type&rpar;
&ast;Elliptic manhole
&ast;Viewing mirror
&ast;Lamp hole

Technical parameter
ModelSpecificationsReference size&lpar;mm&rpar;Power
&lpar;L&rpar;DD1HH1H2H3DN
YFP03-1001005007001700850450235320&period;37kw
YFP03-1501506008001750900450235320&period;37kw
YFP03-25025080010001800960450235320&period;55kw&sol;0&period;75kw
YFP03-300300800100020001010460235320&period;55kw&sol;0&period;75kw
YFP03-500500900110020501240640270400&period;55kw&sol;0&period;75kw
YFP03-600600900110023151430830270400&period;55kw&sol;0&period;75kw
YFP03-100010001100130025051580880270400&period;7kw&sol;1&period;1kw
YFP03-1200120011001300265518001100270400&period;7kw&sol;1&period;1kw
YFP03-1500150012001400327519001150270400&period;7kw&sol;1&period;1kw
YFP03-2000200014001600327520501220280401&period;5kw&sol;2&period;2kw
YFP03-2500250015001700313520501150280401&period;5kw&sol;2&period;2kw
YFP03-3000300016001800325521701220280401&period;5kw&sol;2&period;2kw
YFP03-4000400018002000338523001250280401&period;5kw&sol;2&period;2kw
YFP03-5000500019002100367525501450320502&period;2kw
YFP03-6000600021002300372526001400320503kw
YFP03-7000700022002400381526901450320503kw

Packaging & Shipping

1> Outer packing&colon; plywood case
2> Inner packing&colon; PE film wrapping overall
FOB port&colon; Guangzhou or Shenzhen

Our Services
Pre-sales service&colon;
1> Engineering design
2> Equipment model selection guide
3> equipment machinig

After-sales service&colon;
1> one year from date of delivery&comma; if any spare parts be broken within warranty and not caused by improperly operation&comma; we would offer the new parts for free&period;
2> Provide professional after-sales service engineers to  abroad  installation and debugging&period;

Company Information
We are a professional manufacturer of  cosmetic&comma;chemical& pharmaceutical machinery and equipment more than 17 years &period;Product lines range from&colon;
1> Cosmetic Machinery&colon; water treatment &comma;vacuum emulsifying machine&comma;liquid detergent mixing machine&comma;storage tank&comma;solid soap making machine&comma;perfume making machine&comma; filling machine etc&period;
2> Chemical Machinery&colon;  reactor&comma; mixing equipment&comma;separation equipment&comma; storage tank etc&period;
3> Pharmaceutical  Machinery&colon; vacuum ointment machine&comma;sanitary stainless reaction pot&comma;alcohol deposition can&comma; collocation tank etc&period;

This product is a good investment for business owners. It not only can increase production efficiency but also reduce fixed costs such as time cost and labor cost. The product has the advantage of low energy consumption. Thanks to its maintenance and easy control, the product can significantly reduce the need for labor, which will directly cut down labor costs. The product has the advantage of low energy consumption.
