Jinzong Machinery | Cosmetic Machinery & Chemical Machinery Manufacturers
China Supplying Paint Production Complete Line/ Equipment
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Model NO. | 50L-30000L | Tower Reactor Type | Spray Tower Reactor |
| Heating | Hot Water Heating | Heat Transfer Structure | Jacketed |
| Automatic Grade | Semi-Automatic | Condition | New |
| Brand Name | Jinzong Machinery | Place of Origin | Guangdong, China (Mainland) |
| Voltage | 220V/380V/415V/440V | Power(W) | 0.75kw-45kw |
| Warranty | 1 Year | After-Sales Service | Engineers Available to Service Machinery Overseas |
| Motor | Explosion Proof Motor Optional | Application | Adhesive, Paint, Resin, Emulsion,Pigment,Ink |
| Trademark | Jinzong Machinery | Transport Package | Plywood Case |
| Specification | CE, ISO, SGS | Origin | Guangdong, China(Mainland) |
| HS Code | 8419899090 |
Product Description

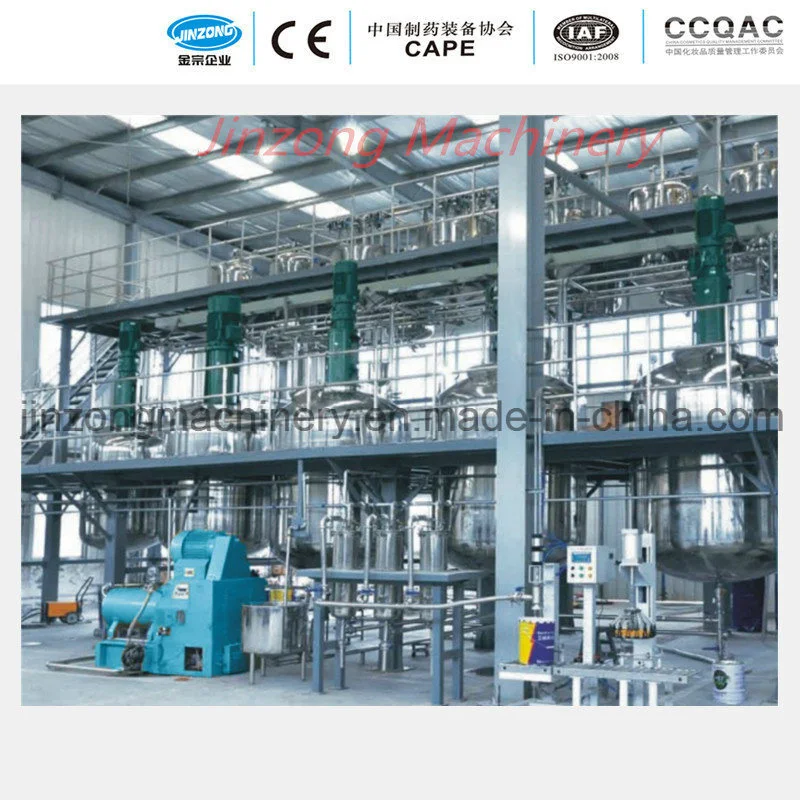

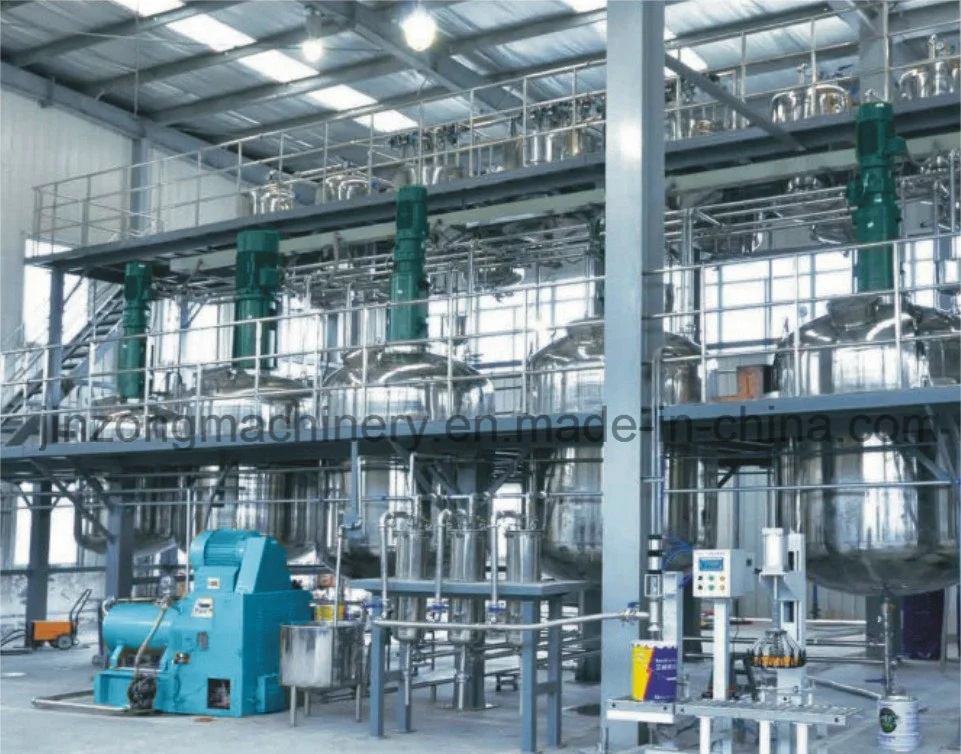

This paint production line inculding control system, material feeding system, grinding system, tinting system, discharging and filtration system, operation platform, pipeline system and filling system.

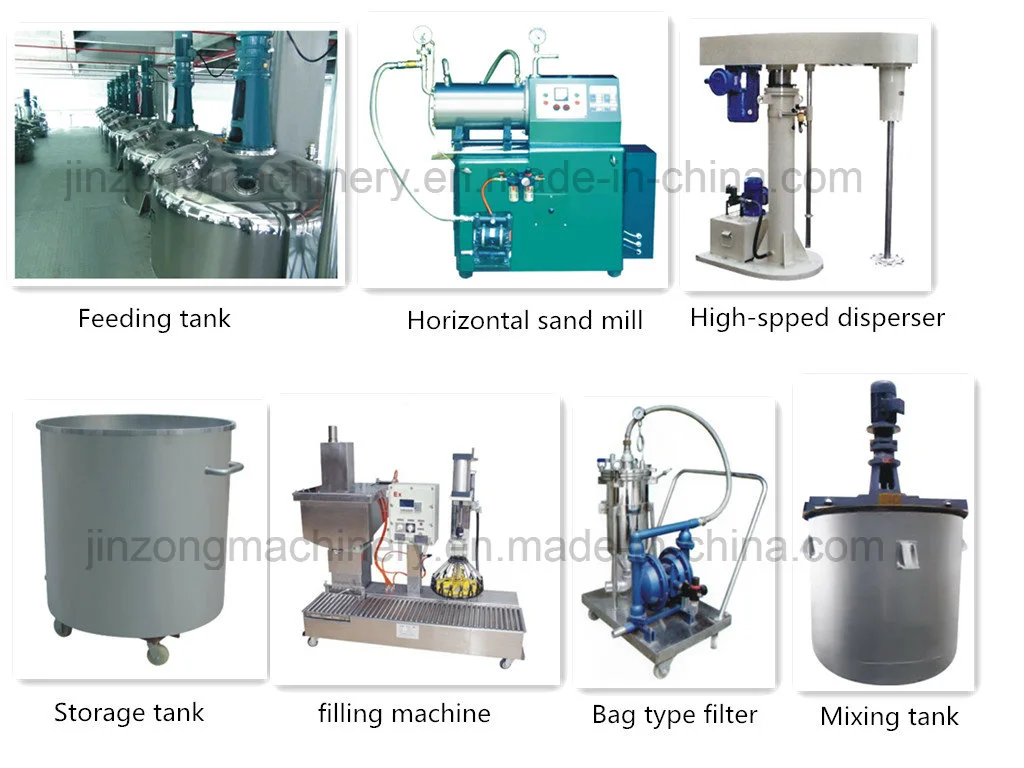

System | Equipment Items | Remarks |
| Control System | Electrical control system | Subassembly |
Materials Feeding System | Powder feeding tank | 304 Stainless steel, inside and outside mirror polished |
Liquid feeding tank | 304 Stainless steel, inside and outside mirror polished | |
Latex feeding tank | 304 Stainless steel, inside and outside mirror polished | |
Vacuum buffer tank | 304 Stainless steel, inside and outside mirror polished | |
Additive feeding tank | 304 Stainless steel, inside and outside mirror polished | |
Vacuum pump | Water vane type | |
Grinding System for Paste Making | Dispersing vessel | 304 Stainless steel with top and down dished end, inside and outside mirror polished |
Horizontal sand mill | Macromolecule grinding disc | |
Tinting System | Basket mill | Inverter control(0-1440),with sealing device |
Multifunction mixing vessel | With top and down dished end, inside and outside mirror polished, sealing device | |
High speed disperser | Inverter control(0-1440 rpm) with sealing device | |
Discharging and Filtration System | Pneumatic diaphragm pump | DN40 |
Bag type filter | 304 Stainless steel | |
Operation Platform | Operation platform | Size:5x3x1.8M , stainless steel |
Pipeline System | Pipeline accessories | Include all valves, quick joints, stainless steel pipeline and cables |
Filling System | Filling System | Semi-auto filling machine |
Related equipment:
***Packaging & Shipping
1> Outer packing: plywood case
2> Inner packing: PE film wrapping overall
FOB port: Guangzhou or Shenzhen
***Our Services
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.

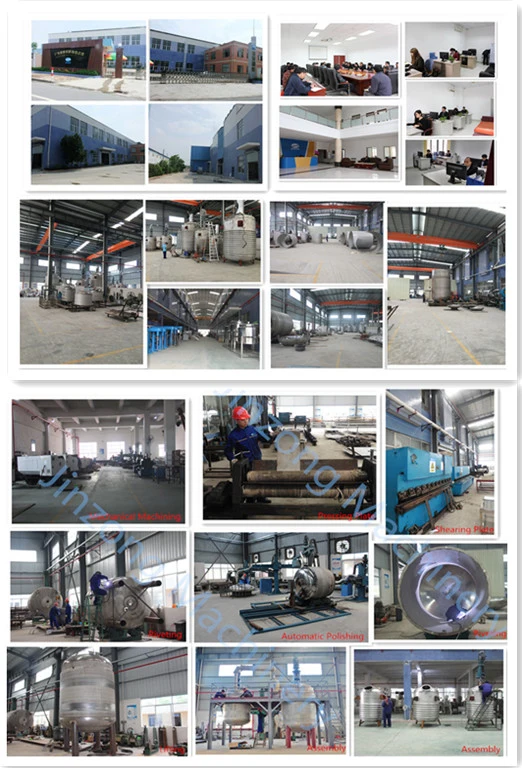

***Company Information
We are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 17 years .Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank etc.
3> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
Our Certificates
***Why Choose Jinzong Machiney?
1. More than 17 years in Cosmetic and cheimical industry
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider
3. Good reputation in industry.
4.Have a Professional after-sales service engineering team
5.Large scale and strong strength
Guangdong Jinzong Machinery Co., Ltd.'s products are all 100% guaranteed by high quality foreign brands. The product is characterized by a high running speed.
Jinzong Machinery is very proud to produce such a popular mechanical equipment in the industry. The product is characterized by a high running speed.
