China Paint Mixer Making Machine Equipment

China Paint Mixer Making Machine Equipment

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Model NO.FL FXLayout TypeVerticle
Mixing Drum ShapeDiscAdditional CapabilitiesMilling, Drying, Coating
Operating typeContinuous OperatingConditionNew
Lifting TypeHydraulicMaterial TankSUS304 Stainless Steel
UsePaint Ink Resin Adhesive GlueTrademarkJINZONG MACHINERY
Specification2.2kw~110kwOriginGuangdong, China(Mainland),
HS Code8413509090

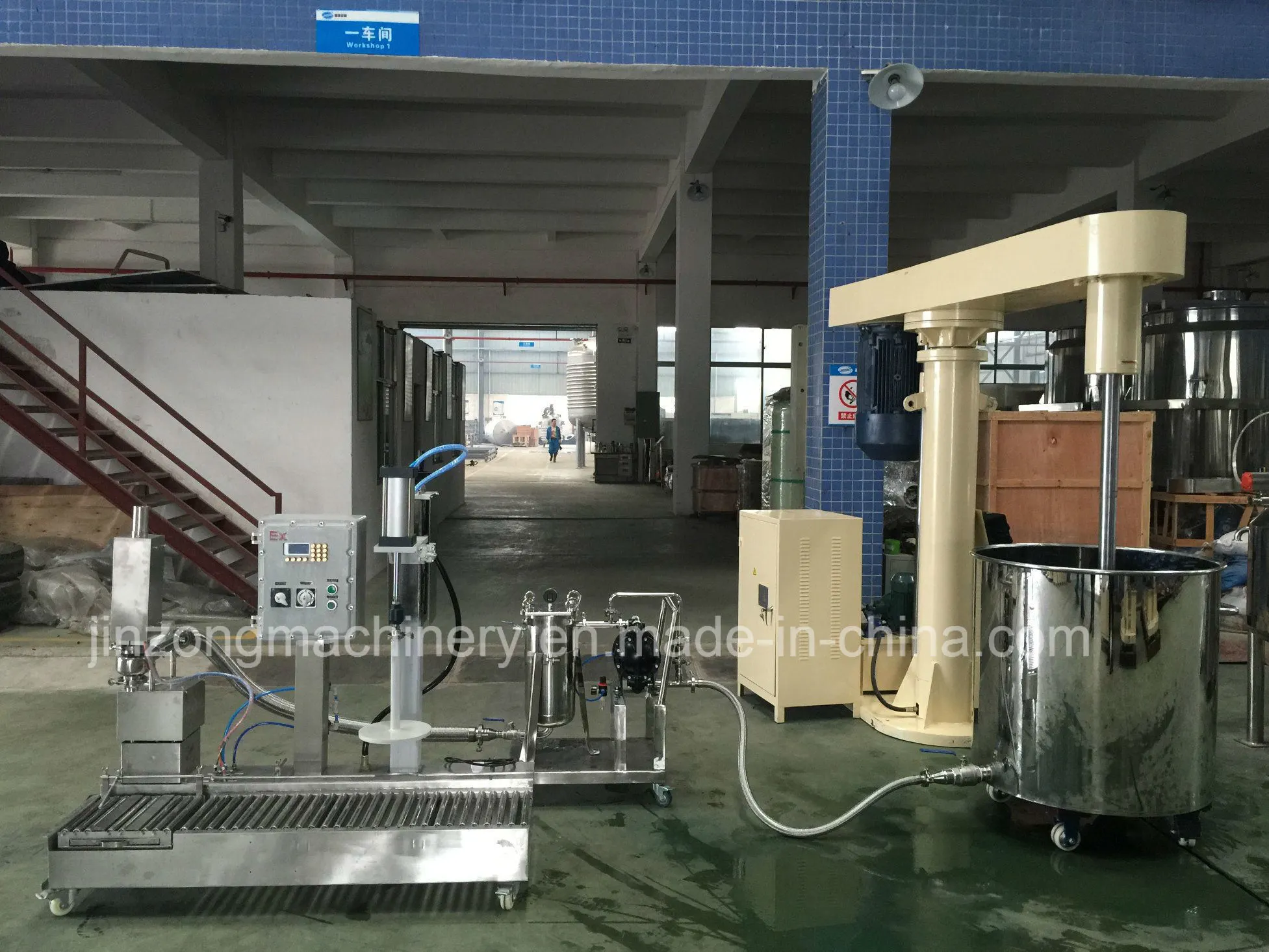

The series of equipment are applied to the dissolution, mixing and dispersion of materials in many industries such as painting dyestuff, pigment, medical, papermaking and other industries. The equipment is characterized by minimum include air during mixing and dispersion, perfect solid-liquid mixing and dispersion effect, and fast dissolution and fine particles during high-and medium-speed dispersion process.

Frame type and main power
A) Applicable power for frame fg250: 5.5KW; 7.5KW; 9/11KW; 11KW.
B) Applicable power for frame fg 350: 9/11kw; 11kw; 15kw; 18.5kw; 18.5kw/22kw: 22kw; 30kw.
C) Applicable power for other frame: 2.2kw; 3.7kw; 4kw; 30kw; 32/42kw; 45kw; 55kw; 75kw; 90kw.
Speed requriement
A) Speed type: Single, double, stepless, step(multi)
B) Single speed: Magnetic, frequency cobversion, reducer, shift belt.
C) Speed range: Low speed below 400rpm, high speed below 400-1200rpm, opecial speed over 1200rpm.
Dispersing disc type: Falt disc sawtooth, trident, butterfly, other type
Installation type: Floor stand, platform(platform frame)
Tank dismeter and dispersing wheel: 3-4: 1.
Motor and electric: Expiosion proof, common, special requipment.
China Paint Mixer Making Machine EquipmentChina Paint Mixer Making Machine Equipment
ModelFL1.5FL4FL11FL22/FX22FL37/FX37FL45/FX45FL90/FX90
Power of Motor(kw)1.541122374590
Speed of Disperser Shaft(rpm)0-14500-14500-14500-14500-12000-12000-1000
Dia. Of Disperser Blade(mm)150200250350400450600
Ascending&Descending Distance(mm)6008009001200120016001600
Power of Pump Motor(kw)0.550.550.550.750.751.12.2
Volume of Tank(L)50200400-600600-10001000-20001000-25005000
Net Weight(kg)1204008001500170021002600
DimensionsA(mm)1400170017502200220026002700
 B(mm)940130018002100210027003000
 C(mm)3506009001100110014001600
 Width(mm)35054065090090010001500
China Paint Mixer Making Machine Equipment
After Sales Service
The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller's engineer. We will send some free set of spare parts for you change it.

Payment terms:
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
Package:
Standard wooden Case Packing
Shipment terms:
We usually take FOB, but we can also accept EXW, CIF, CNF.

Striving for the excellence of producing the best mechanical equipment is what Jinzong Machinery has been doing. The product can realize mobile feeding and output. In Guangdong Jinzong Machinery Co., Ltd., high quality plus circumspect after-sales service and technology supporting could make you rest easy. The product can realize mobile feeding and output.
