Model NO. | FLZ | Layout Type | Verticle |
Mixing Drum Shape | Disc | Additional Capabilities | Milling, Coating |
Operating type | Continuous Operating | Condition | New |
Lifting Type | Hydraulic | Speed | 0-1450 Rmp |
Trademark | JINZONG MACHINERY | Transport Package | Ploywood Case |
Specification | 15kw, 22kw, 37kw, 55kw, 75kw, 90kw, 132kw | Origin | Guangdong, China |
HS Code | 8474390000 | | |

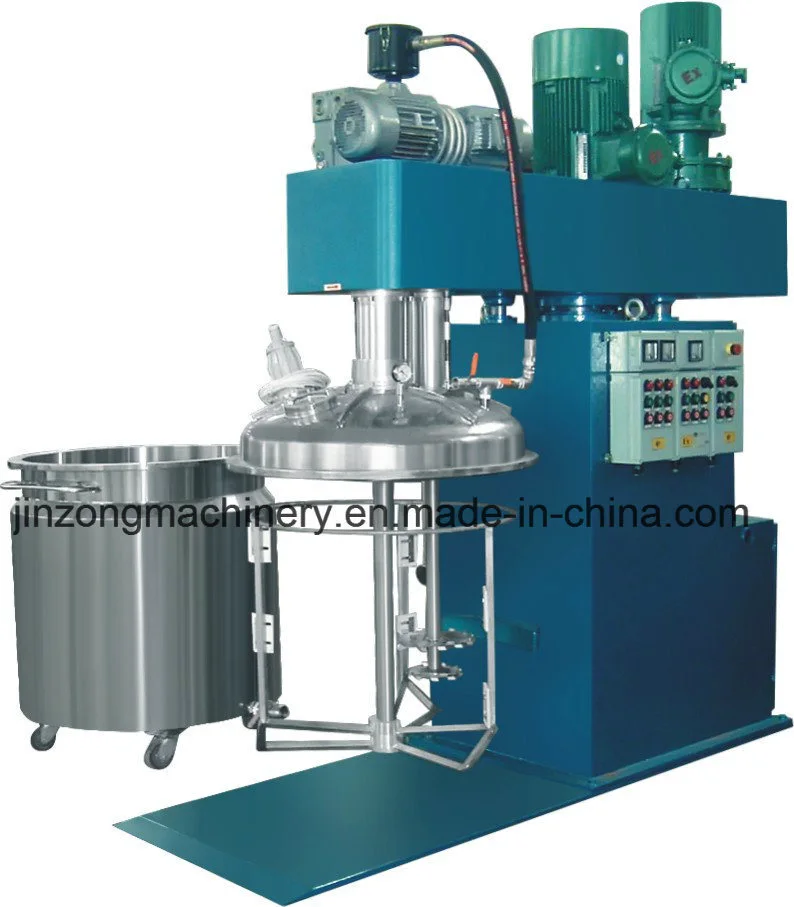

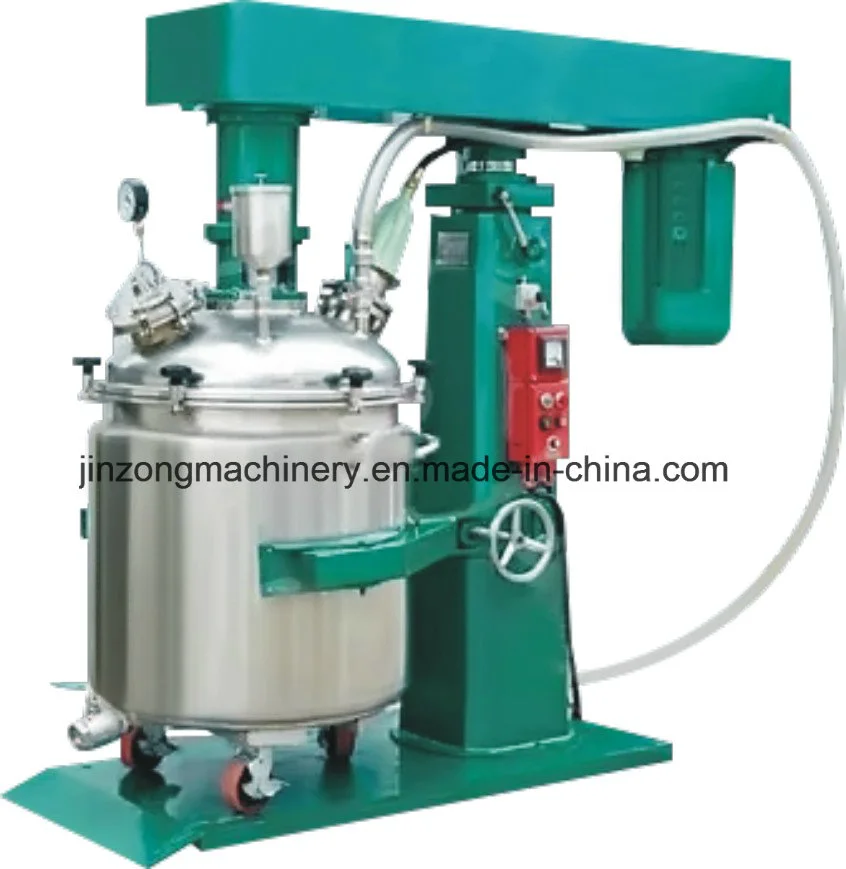

High Speed Vacuum Dissolver
The dispersing mixer has a sealed top lid.
Top lid is connected to vessel by flange with seal-ring to realize air-proof.
This machine has vacuum work condition.
There are feeding hole, vaccum hole, sight-glass & lamp on top lid.
*Product Application
• Coatings
• Paints
• Dye Stuffs
• Carbon Dispersions
• Printing Inks
• Silicone Coatings
• Paper Coatings
• Photographic Inks
• Pigments
• Dispersions
• Fine chemicals
*FeaturesThis vacuum disperser is to disperse and mix materials with different viscosity.• By blade's high peripheral speed, the strong shearing and friction forces happen.• The toothed blades mix materials efficiently.• The whole equipment can be closure to achieve vacuum work condition.• The vessel/tank can be customize with heating jacket.• Machine's top lid and all contacting parts are mirror polished,easy to clean.• Machine's surface color can be set same as users' request.*Technical Parameter:Model | FLZ200 | FLZ500 | FLZ1000 | FLZ2000 | FLZ3000 | FLZ4000 | FLZ5000 |
Dispersing power(kw) | 15 | 22 | 37 | 55 | 75 | 90 | 132 |
Dispersing speed(rpm) | 0-1450 | 0-1450 | 0-1450 | 0-1200 | 0-1200 | 0-1000 | 0-1000 |
Dia. of disperser | 200 | 250 | 300 | 400 | 450 | 500 | 600 |
Mixing power(kw) | 7.5 | 15 | 22 | 45 | 55 | 75 | 90 |
Mixing speed(rpm) | 0-131 | 0-131 | 0-131 | 0-87 | 0-87 | 0-87 | 0-87 |
Lifting height(mm) | 700 | 1000 | 1200 | 1500 | 1800 | 2100 | 2400 |
Tank volume(L) | 200 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
Other related equipment:*About us:Guangzhou / Guangdong Jinzong Machinery Co., Ltd. is a professional manufacturer of cosmetic,chemical, biological & pharmaceutical machinery and equipment more than 20 years .
Jinzong Machinery is a technology innovative enterprise focusing on machinery design, manufacturing and system integration.
Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, color paste mill, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment, separation equipment, storage tank, disperser, mill etc.
3> Biological and Pharmaceutical Machinery: vacuum ointment machine, fermentation tank, sanitary stainless reactor,alcohol deposition can, collocation tank etc.
*Our strength 1. More than 20 years extensive experience in the machinery manufacturing in Cosmetic and cheimical biological & pharmaceutical industry.
2. Quality, 80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider. Up to now, all core machinery are with CE Certificate. We carry out products designing, manufacturing, assembling and detection fully in accordance with ISO9001-2008 Quality Management System issued by Swiss SGS Company.
3. Good reputation in industry. Many years are awarded "defend the contract heavy credit enterprise"
4.Have a Professional after-sales service engineering team.
5.Large scale plant. Currently, we have 2 processing bases, Zhaoqing factory, covering a total area of more than 17,000 square meters,and Shaoguan factory,covering a total area of more than 30,000 square meters. There are more than 160 sets of processing machinery including large vertical lathe, 5-axis horizontal machining center, large planer type milling machine, automatic polishing machines etc. With the help of our strong processing capacity, we produce more than 1000 sets of equipment every year*After-sales service:1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.*
ONE-STOP SERVICESAccording to market and customer demands, our company is continuously researching, developing, upgrading and improving various products, striving to build the firs "one-stop" type cosmetic machinery shopping with machinery & equipment, cosmetic raw material, packing materials, technical consultation and other services
*Providing technical support in the aspects of field commissioning and running of the products sold.
*Field failure diagnosis and maintenance.
*Providing spare parts and fittings, maintenance and servicing plans.
*Choosing Jinzong Machinery is choosing professional technical support and good after-sales service.
