China Bag Type Filter for Paint Filtration

China Bag Type Filter for Paint Filtration

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Model NO.DLPressure( MPa)0.6
Temperature(ºC)<120Precision5,10,15,20,40,50,65,80
Viscosity(PA·s)≦10TrademarkJinzong Machinery
Transport PackagePlywood CaseSpecificationCE, ISO, SGS
OriginGuangdong, China(Mainland)HS Code8419899090

Production introduction

China Bag Type Filter for Paint Filtration

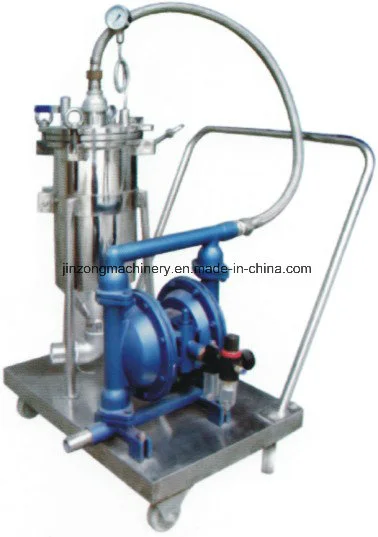

DL series bag filter is widely used at the chemical,paint, coating, printing ink and food industries. This model machine includes the single filter ande the duples filter, forming completed set with the conveying pump unit assembled on the movable trolley respectively. The filter bag protection screen of filter is made of two sorts, carbon and stainless steel, optional depending on different filtered users.


Techical parameters
ModelDL-1P1SDL-1P2SDL-2P1SDL-2P2S
Filter area(m³)0.250.50.25×20.5×2
Pressure(Mpa)0.60.60.60.6
Temperature(ºC)<120<120<120<120
Precision(um)5, 10, 15, 20, 40, 50, 65, 80
Viscosity(pa·s)10
PumpDiaphragm pump or gear pump
Packaging:

Packed by wooden case usually.

According to customer's requirement, other packaging is available as well.

Shipping:

European Countries: 22-28 days

United States: East --13-16 days, West--21-28 days

Brazil: 30-40 days

Russia: 36 days

Asia Countries: 3-5days
China Bag Type Filter for Paint Filtration


Our Services:
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig

After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to  abroad  installation and debugging.

1.Why do you choose us?

·High quality and competitive price.

·Approved by ISO, CE, GS and etc.

·One year warranty; perfect after-sales service for spare parts.

·Easy maintenance.

 2.What kind of machines can you supply to customer?

 We could offer various kinds of machines and whole production line.

(1) paint&coating production line
Intelligent nano sand mill
Horizontal disc sanding machine
Basket sand mill
High speed disperser
Platfrom type disperser with several vessles
Water-based high efficiency paint unit
Planetary mixer&extruder
Filling machine
Bag filter
Water treatment equipment
Crusher
Double-cone powder mixer
Screw type mixer

(2)Resin complete production equipment

(3) Automatic control system

(4) Adhesive products:
