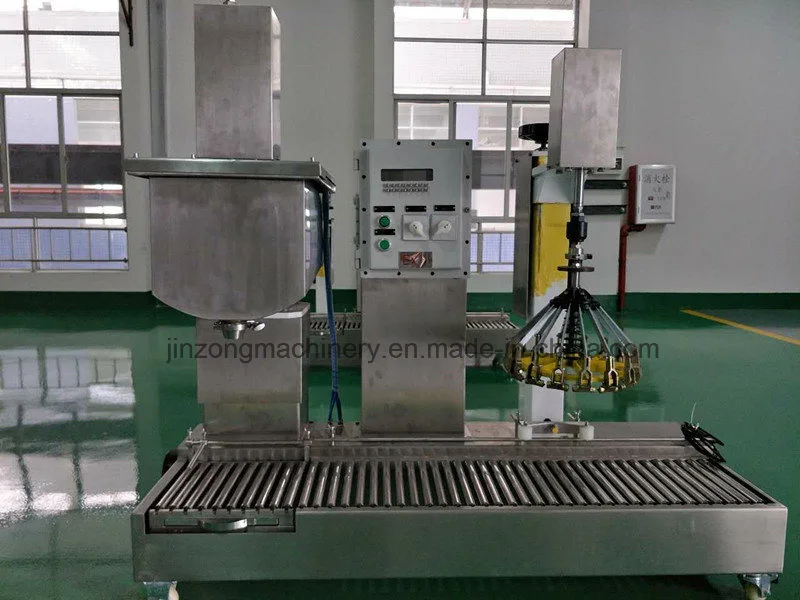

Automotive Paint Automatic Filling Machine

Automotive Paint Automatic Filling Machine

Get Latest Price
Get the latest price
Quantity Needed:
Model NO.GZJDimension(L*W*H)1200*800*1500mm
Warranty12 MonthsFilling Valve HeadSingle-Head
Filling Speed5-12barrels/MinTypeWeighing-Type Filling Machine
After-Sales Service ProvidedEngineers Available to Service Machinery OverseasTrademarkJinzong Machinery
Transport PackageQualified Plywood CaseSpecification10000 ml
OriginGuangdong, China (Mainland)HS Code8422301090
Product Description:

Liquid Filling and Capping Machine for Paint, Coating, Glue, Ink
This filling machine is application for various coatings, inks, automotive paint, furniture paint, adhensives (glue), resin, chemical solvents, curing agents, lubricants, shoes glue, spray glue, and all kinds of liquids which can flow.

Automotive Paint Automatic Filling Machine

Automotive Paint Automatic Filling Machine


1. The filling head and capping  height can be adjustable, connected by quick clamp, conveying material through pump or high tank.
2. Put barrel and cover by manual, automatic filling and capping.
3. Weight display adopts 32-bit dual-core CPU controller
4. Weight can be set by enter the number
5. Weighing value can be display in a time
6. Can be set and store ten kinds filling weight
7. GW/NW two filling modes
8. Automatic clear to zero after start-up and there is power-off protection device.
9.Two filling speed-fast and slow
Techinical Information:
VoltageAC220+_10% 50HZ
Filling head:Single
Filling volume:1l-20l
Apply barrel high:Dia.300x350mm(height)
Filling speed:6-15 barrels/ min
Filling Precision:5-10g
Air source:>0.5 mpa
Application for:Paint, adhesive, pigment,, beverage , juice, cosmetic, liquid detergent, water, sauce, etc.
Application industry:Chemical, daily chemical, food, pharmaceutical, beverage etc.

Our Service:
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to  abroad  installation and debugging.

Company Infromation:

We are a professional manufacturer of  cosmetic,chemical& pharmaceutical machinery and equipment more than 17 years .Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
2> Chemical Machinery:  reactor, mixing equipment,separation equipment, storage tank, high-speed disperser,grinding machine, filling machine,etc.

3> Pharmaceutical  Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
Automotive Paint Automatic Filling Machine


We are not only professional manufacturer, but also the best solution provider!
Our Certificates:
Automotive Paint Automatic Filling Machine

Our filling machines and related accessories are all custom make and we can do special engineering to meet every customer's demand as the basic theories for filling or packing machines are almost the same. For different materials, the parameters can be adjusted and related factors will be taken into consideration.
For custom make of filling machines, we need to know your materials, density, viscosity, power voltage, the speed you want, size of your cans or barrels and so on.
Welcome your inquiry

Guangdong Jinzong Machinery Co., Ltd. is a high-tech company engaged in developing, research, production, sale and after-sale mechanical equipment. The product can greatly contribute to production efficiency. Guangdong Jinzong Machinery Co., Ltd. is able to accomplish the production tasks with nice quality and quantity. The product can greatly contribute to production efficiency.
