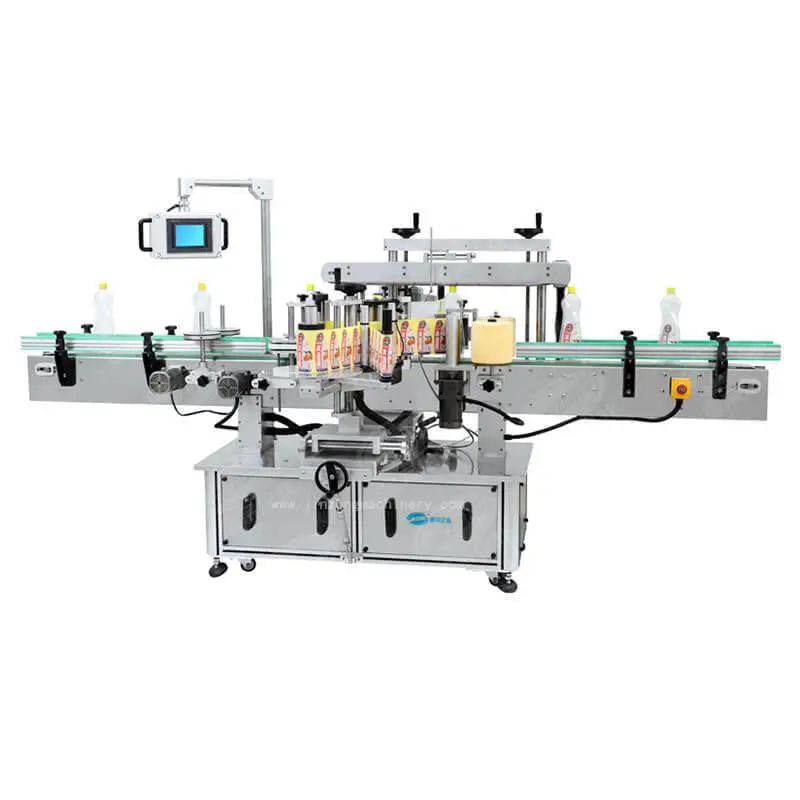

Automatic Double Side Labeling Machine for bottles 1

Automatic Double Side Labeling Machine for bottles 2

Automatic Double Side Labeling Machine for bottles 3

Automatic Double Side Labeling Machine for bottles

MOQ:

1pcs

Place of Origin:

Guangdong,China

Payment Terms:

L/C, T/T, Westernunion, Paypal, Cash

Delivery Time:

3-30 working days depends on quantity

Accept Custom Service:

Yes

Certification:

CE / ISO9001:2015 / SGS

Inquiry

Write a Review

*Application of Automatic Flat Bottles Labeling Machine:

1.Apply for labeling flat bottles,square bottles,round bottles.
2.For double sides labeling,one side labeling,around sides labeling

*Automatic Flat Bottles Labeling Machine Working Principle:

Put the bottles on the conveyor—Bottles separating-arrange/leading bottles-Labeling-press labels-finished

*Automatic Flat Bottles Labeling Machine Structure:

Main Motor: ①750W Panasonic servo motor; ②Panasonic servo amplifier ③Danfoss frequency inverter; ④Siemens PLC; ⑤Siemens touch screen ⑥German LEUZE labels sensor; ⑦Japan KEYENCE FS-V11 optoelectronic switch;
Conveyor: Motor 750W,speed adjustable by frequency inverter.
Bottles leading structure: Double coordinate adjustment stainless steel rail.
Plastic parts of the structure: Panasonic motor, speed adjustable, with the mechanical synchronous speed of the conveyor.
Press belt structure: Spiral Bevel Gear Drive,with the mechanical synchronous speed of the conveyor.
Scraper: Sponge spring steel plate combination.
Labels press structure: Combination unpowered sponge roller,Quick disassembling structure for different size of labels..

Technical Specifications

NO.	Item	Specification
1	Labeling head number	2pcs
2	Labels type	Adhesive sticker
3	Weight(height) of labels transporter	Max:200mm
4	Length of labels transporter	Max:400mm
5	Scraper	20-200mm
6	Dimension of labeling object	thickness≤90mm height≤450mm or customer design
7	Labeling speed	30-50m/min
8	Conveyor speed	0-30m/Min
9	Capacity	0-12000pcs/h
10	Tap location precision	±0.2mm
11	Labeling precision	±1mm
12	Label plate outside diameter	350mm
13	Label plate inside diameter	76.2mm
14	Qty of label plate	2pcs
15	Size of Labels collector	180mm
16	Method of labels collector	Rewind the labels
17	Conveyor belt	950±50mm
18	Net weight	500kg
19	Bottles conveying direction	From left to right
20	Labels conveying direction	From left to right
21	Dimension	L3048W1400H1650(mm)
22	Power supply	220V/50Hz 3000W

Application labels
Raw material of labels：	All the paper type labels,thin film type labels
Thickness of labels：	>2.5mm
The material of bottom labels：	Enough pull,the glassine or PET bottom labels will be better.
Label spacing requirement	Minimum spacing is 2.54mm,standard spacing is 3mm
Label size allowed error	±0.3 mm
Max weight of labels： 200mm	＜ 200mm

Main Components

Automatic Double Side Labeling Machine for bottles 4

Name	Item	Brand	Country	Units	Qty
PLC	S7-224	Siemens	German	set	1
Touch Screen		Siemens	Taiwan	set	1
Servo driver	MCDDT3520003	Panasonic	Japan	set	2
Servo driver	MHMDD082P1U	Panasonic	Japan	set	2
Frequency inverter	FC-051PK	Danfoss	Danmark	set	2
a.c. contactor	LC1-D2510M7N	TELEMECANIQUE	German	set	1
Urgent stop switch box	54*54	TELEMECANIQUE	German	pcs	1
Urgent stop switch	XB2 ES542	TELEMECANIQUE	German	pcs	1
Object sensor	FS-V11	KEYENCE	Japan	set	1
Label sensor	GS63/6D.3-S8	LEUZE	German	pcs	2
Power switch	24V 6A	Meanwell	Taiwan	set	1
Conveyor motor	GV28-750-25S	Wanxin	Taiwan	set	1
Motor	M9MC60G4Y	Panasonic	Japan	set	1
Transmission	MGC30B	Panasonic	Japan	set	1
Speed controller	（includes insurance switch）	Panasonic	Japan	set	1
