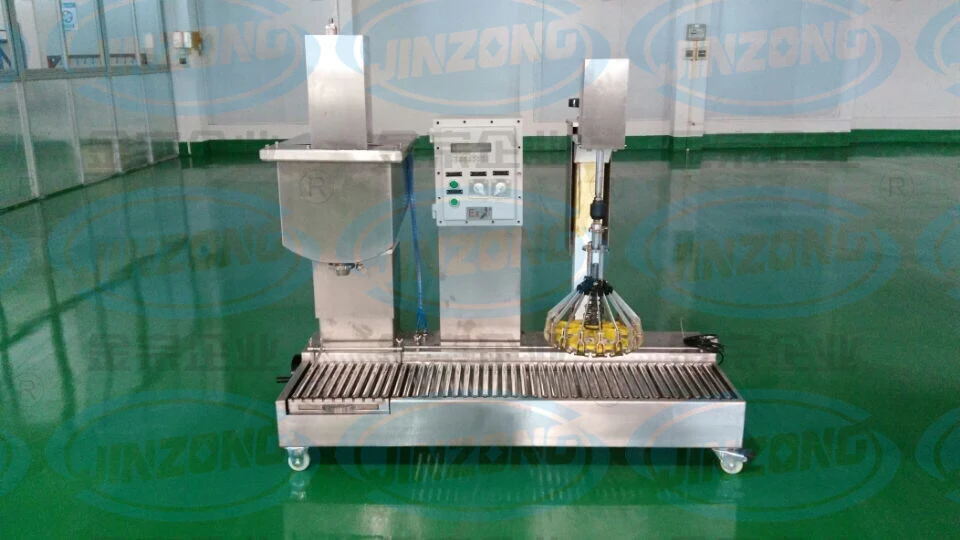

Automatic 20L Bottling Filling Machine with Capping
| Model NO. | GZJ2-20 | Dimension(L*W*H) | 1650*670*1400mm |
| Warranty | 12 Months | Filling Valve Head | Single-Head |
| Filling Speed | 6-15 Barrels/ Min | Type | Weighing-Type Filling Machine |
| After-Sales Service Provided | Engineers Available to Service Machinery Overseas | Trademark | Jinzong Machinery |
| Transport Package | Qualified Plywood Case | Specification | 20l |
| Origin | Guangdong, China (Mainland) | HS Code | 8422301090 |

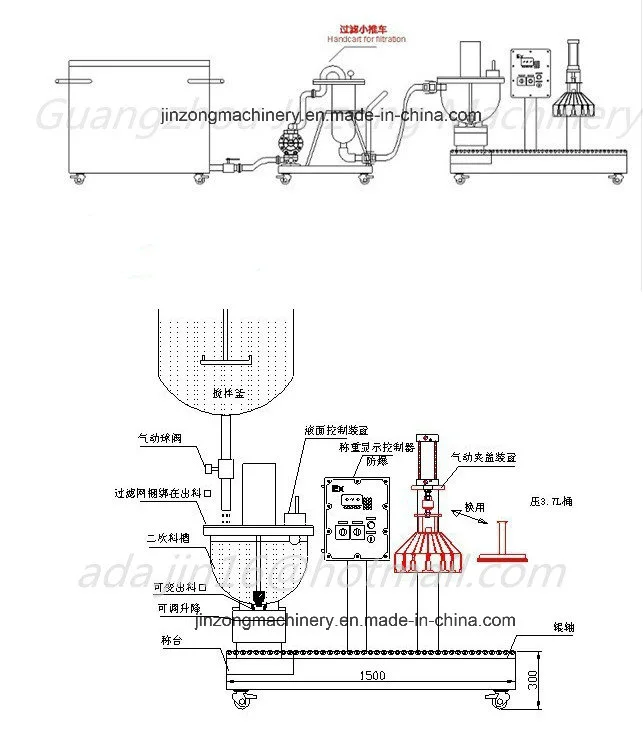

Liquid Filling and Capping Machine for Paint, Coating, Glue, Ink
This filling machine is application for various coatings, inks, automotive paint, furniture paint, adhensives (glue), resin, chemical solvents, curing agents, lubricants, shoes glue, spray glue, and all kinds of liquids which can flow.
Feature:
Digital input to set weight and 10 recipes can be saved;
·With working status indicator and clock display;
·Tare inspection triggers all-position barrel putting and filling operation;
·GW/NW (barrel tared automatically) two filling modes;
·Automatic zero position tracking, barrel quantity accumulation and weight accumulation;
·Automatic weight error correcting;
·Automatic clear to zero after start-up and there is power-off protection device;
·Protection device against emergency stop;
·Factory default setting can be restored in case of misoperation;
·Fault detecting function makes maintenance easier;
·Easy moving, explosion-proof configuration and simple operation.
Techinical Information:
| Voltage | AC220+_10% 50HZ |
| Dimension | 1650×670×1400mm |
| Filling head: | Single |
| Filling volume: | 1l-20l |
| Apply barrel high: | Dia.300x350mm(height) |
| Filling speed: | 6-15 barrels/ min |
| Filling Precision: | 5-10g |
| Air source: | >0.5 mpa |
| Application for: | Paint, adhesive, pigment,, beverage , juice, cosmetic, liquid detergent, water, sauce, etc. |
| Application industry: | Chemical, daily chemical, food, pharmaceutical, beverage etc. |
Our Service:
Pre-sales service:
1> Engineering design
2> Equipment model selection guide
3> equipment machinig
After-sales service:
1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
2> Provide professional after-sales service engineers to abroad installation and debugging.

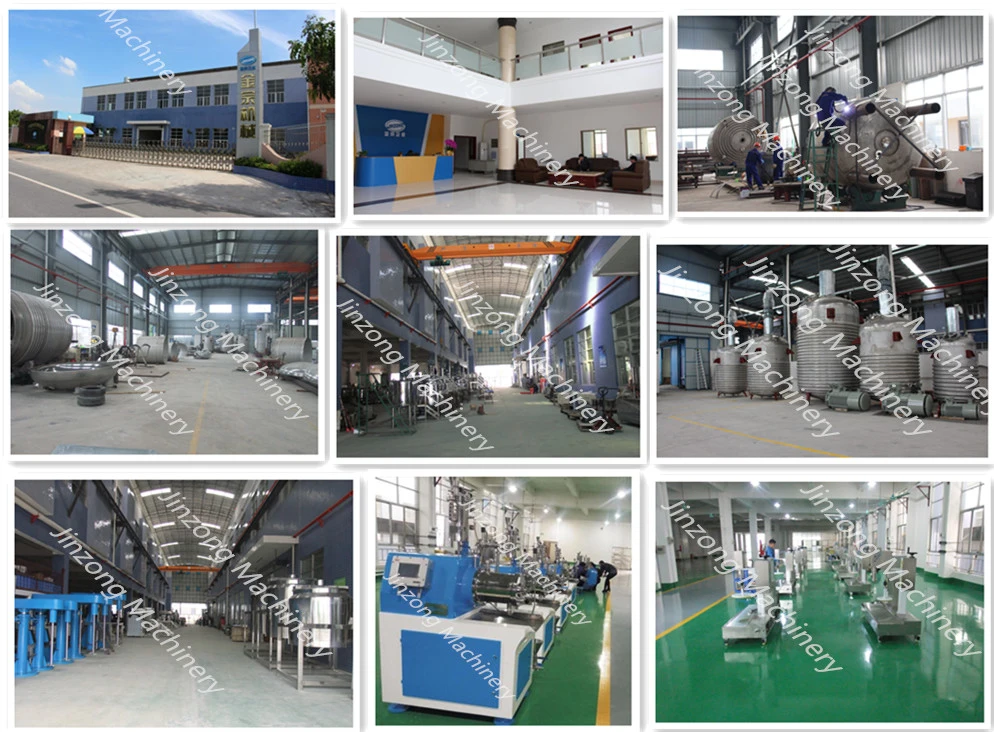

Company Infromation:
We are a professional manufacturer of cosmetic,chemical& pharmaceutical machinery and equipment more than 17 years .Product lines range from:
1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.
2> Chemical Machinery: reactor, mixing equipment,separation equipment, storage tank, high-speed disperser,grinding machine, filling machine,etc.
3> Pharmaceutical Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.
We are not only professional manufacturer, but also the best solution provider!
Our Certificates:
Our filling machines and related accessories are all custom make and we can do special engineering to meet every customer's demand as the basic theories for filling or packing machines are almost the same. For different materials, the parameters can be adjusted and related factors will be taken into consideration.
For custom make of filling machines, we need to know your materials, density, viscosity, power voltage, the speed you want, size of your cans or barrels and so on.
