1000L Stainless Steel Vertical Storage Tank

    oops...!

    no product data.

    Go to homepage
    Model NO.JZSStorage TankVertical
    TrademarkJINZONG MACHINETransport PackageWooden Case
    Specificationcustomer designOriginGuangdong, China (Mainland)
    HS Code8479820090

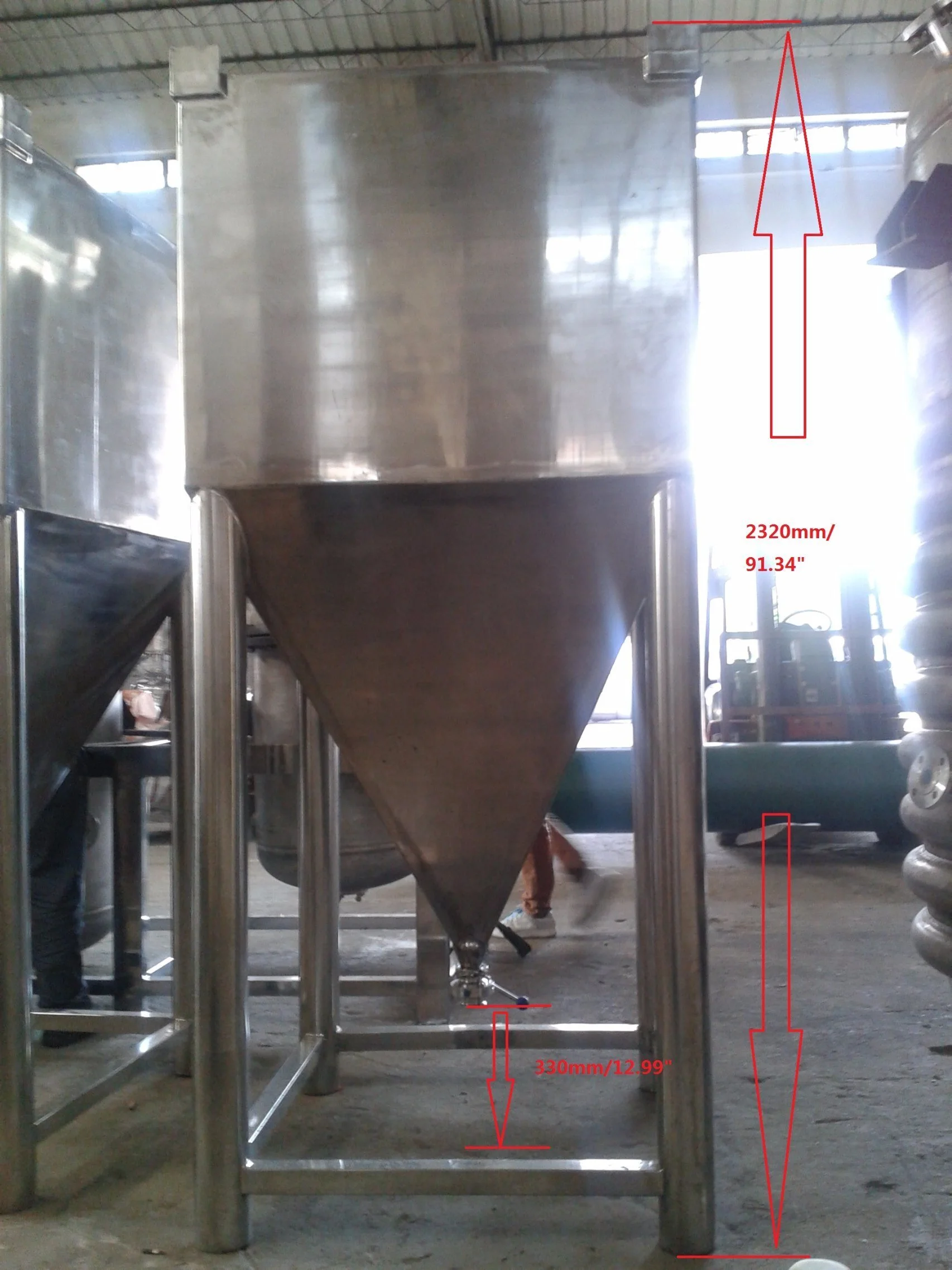

    (1) Single-layer structure, upper flat cover and lower inverted-pyramid end. Upper cube sizes are 1000(Length)x1000(Width)x800(Height)mm, lower inverted-pyramid sizes are 1000(Length)x1000(Width)x1000(Height)mm, thickness is 5mm, made of SUS316L.
    Product Description
    Instruction:

    We can supply single-layer, dual-layer and three-layer stainless steel tanks with or without agitation to blend product. These tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards

     pharmaceutical liquid storage tank, stainless steel storage tanks, liquid storage tank
    Features

    1. Stainless steel 304/316 or carbon steel ;

    2. High quality and stable water after treated;

    3. designed According to the sanitary requirements, highly humanized structure design, easy operation Storage of liquid is very hygiene.

    4. Inside the tank surface mirror polishing treatment (roughness Ra (including 0.4 m or less) , Smooth and easy to clean without blind Angle , Ensure the reliability of the production process and stability.
    Technical parameter:

    RFQ parameters of industrial insulation storage tank stainless steel holding tanks
    Material:SS304 or SS316L
    Design Pressure:-1 -10 Bar (g) or ATM
    Work Temperature:0-200 °C
    Volumes:50~50000L
    Construction :Vertical type or Horizontal type
    Jacket type :Dimple jacket, full jacket, or coil jacket
    Structure :Single layer vessel, vessel with jacket, vessel with jacket and insulation
    Heating or cooling functionAccording to the heating or cooling requirement ,the tank will have jacket for requried function
    Opitional Motor:ABB, Siemens, SEW or Chinese brand
    Surface Finish:Mirror Polish or Matt polish or Acid wash&pickling or 2B
    Standard components :Manhole,sight glass , cleaning ball
    Optional components :Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100

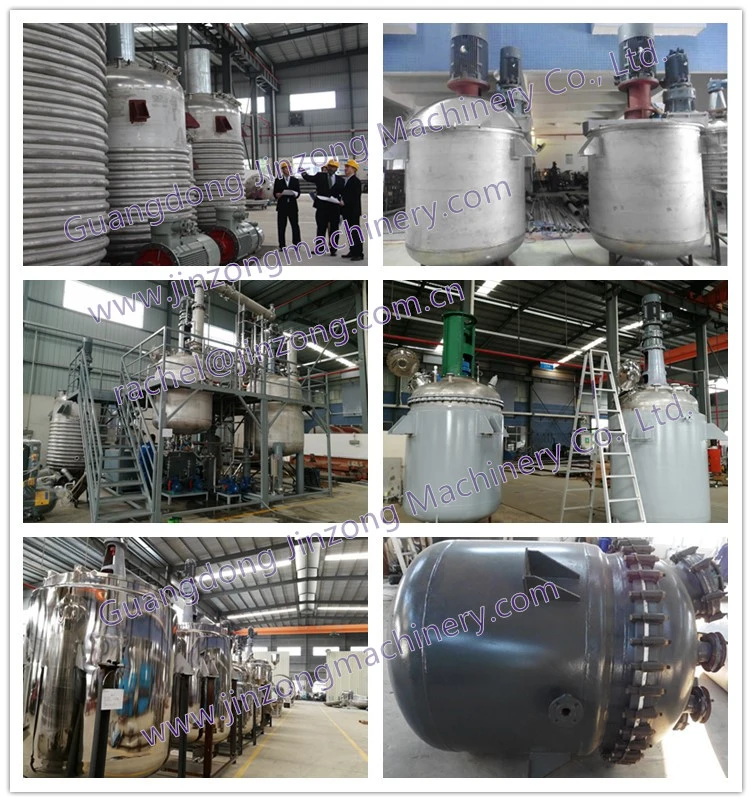

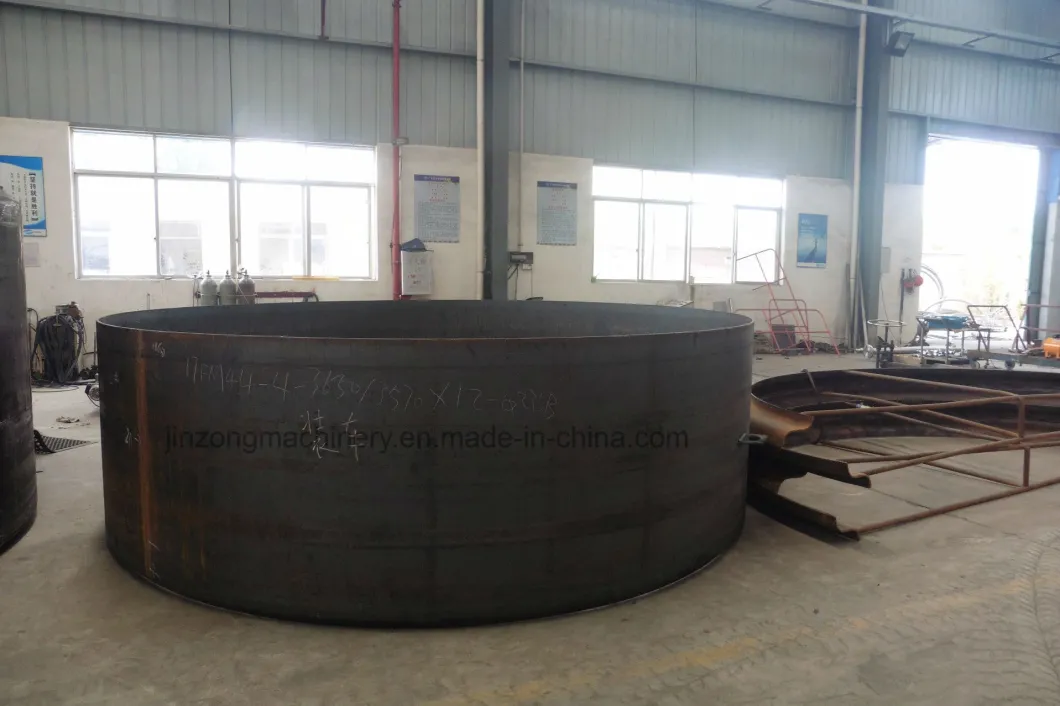

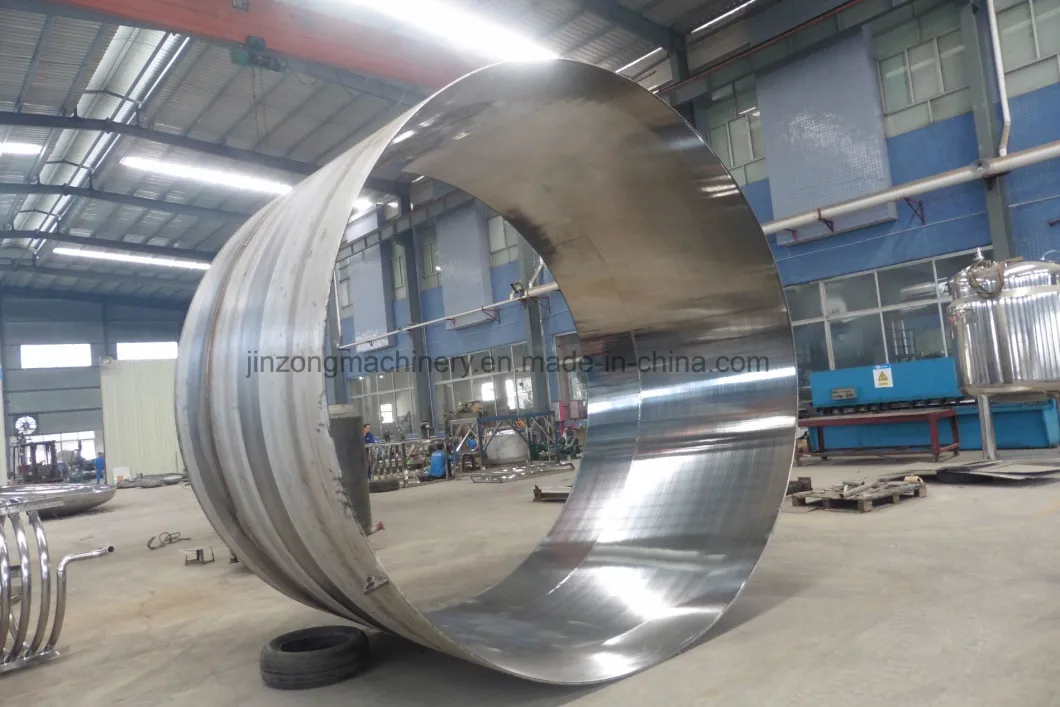

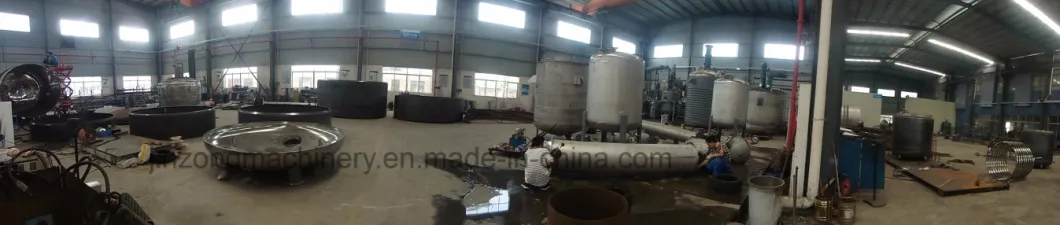

    Manufactured pictrues
    1000L Stainless Steel Vertical Storage Tank
    1000L Stainless Steel Vertical Storage Tank1000L Stainless Steel Vertical Storage Tank




    Packaging:

    Packed by wooden case usually.

    According to customer's requirement, other packaging is available as well.


    Shipping:

    European Countries: 22-28 days

    United States: East --13-16 days, West--21-28 days

    Brazil: 30-40 days

    Russia: 36 days

    Asia Countries: 3-5days
    1000L Stainless Steel Vertical Storage Tank



    Pre-sales service:
    1> Engineering design
    2> Equipment model selection guide
    3> equipment machinig


    After-sales service:
    1> one year from date of delivery, if any spare parts be broken within warranty and not caused by improperly operation, we would offer the new parts for free.
    2> Provide professional after-sales service engineers to  abroad  installation and debugging.

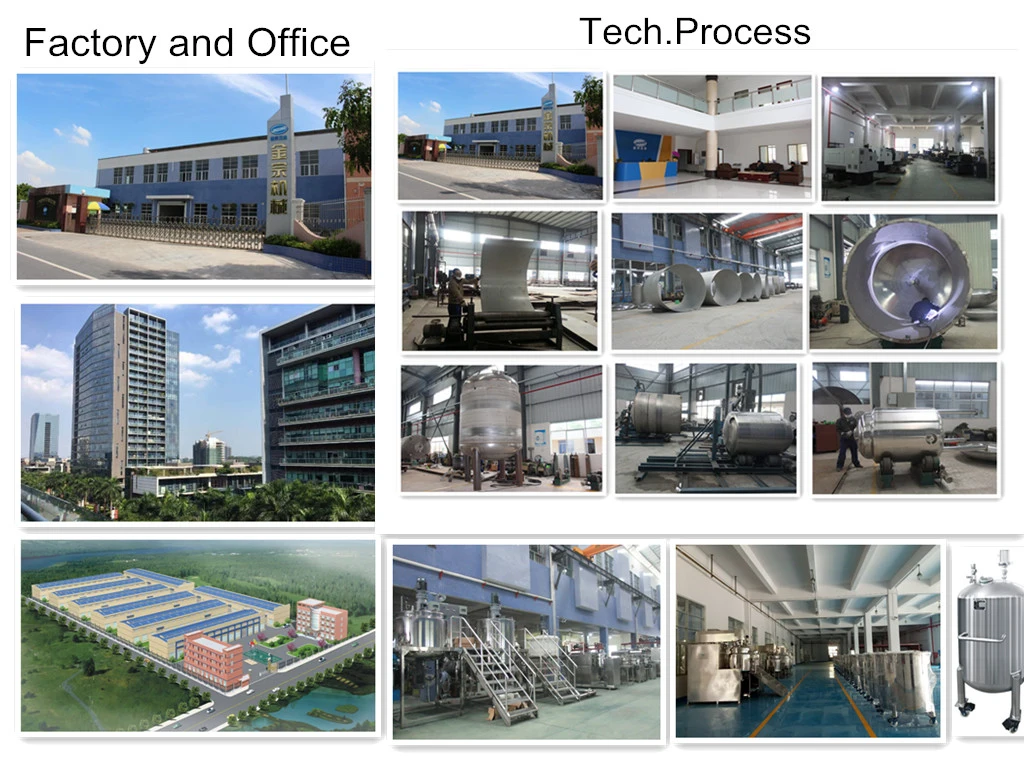

    Company information:

    Guangzhou Jinzong Machinery(as Jinzong Machinery) is a technology innovation enterprise integrating design, manufacturing and system integration of chemical machinery & equipment which was established in 1999,  covers an area of 17,000 square meters in Zhaoqing city. Jinzong Machinery specializes in research, development and auxiliary service of processing machine for cosmetic, chemical, food&Pharmaceutical industrys.

    Product lines range from:
    1> Cosmetic Machinery: water treatment ,vacuum emulsifying machine,liquid detergent mixing machine,storage tank,solid soap making machine,perfume making machine, filling machine etc.

    2> Chemical Machinery:  reactor, mixing equipment,separation equipment, storage tank etc.

    3> Pharmaceutical&food Machinery: vacuum ointment machine,sanitary stainless reaction pot,alcohol deposition can, collocation tank etc.

    1000L Stainless Steel Vertical Storage Tank

    Why us?

    1. Experienced workforce: more than 17 years
    2. Excellent quality range of industrial process equipment ,80% materials and components are purchased from 3M, ABB, Siemens, Panasonic, Schneider

    3. Strict quality controls
    4. Good reputation in industry.

    5. Customized packaging

    6. Simple ordering process

    7. Easy payment modes

    8. Prompt delivery
    9. Have a Professional after-sales service engineering team


    Trade Show:
    1000L Stainless Steel Vertical Storage Tank
    Certificates:
    1000L Stainless Steel Vertical Storage Tank


    Choose JINZONG, choose contentment

    Please contact me if you are interested and have any questions

                ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓

    The product can make the production process flow more efficient. It greatly contributes to a reduction in the production schedule and costs. It can effectively prevent the quality deviations of final products with strong processing ability. The product can meet demanding production needs by using little efforts and money. It does not need many workers to operate it. It can effectively prevent the quality deviations of final products with strong processing ability.
    Get in touch with us
    just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs
